Feature

Compact Size

Easy Install

Lock-In And Lock-Out Safety System

Powder-Coated Steel Frame Construction

Stainless Steel And Blue Anodised Aluminium Fittings

Travel Lock And Key

Anodised Blue Faceplate

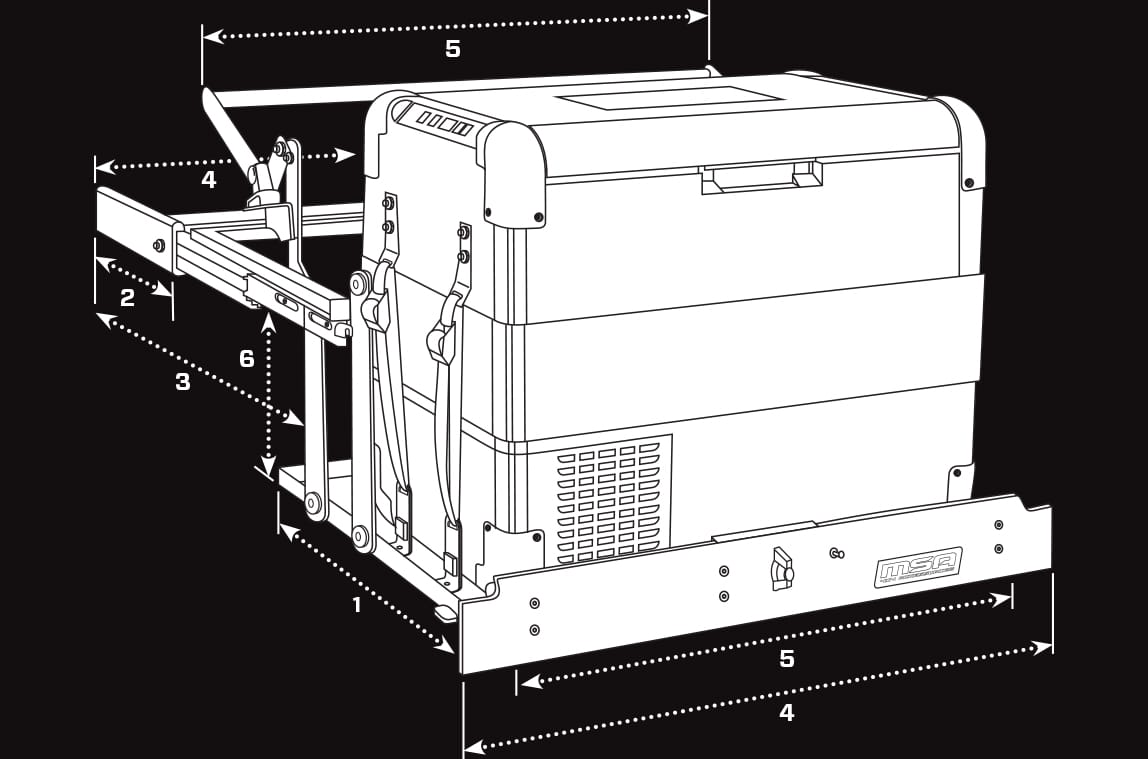

Specification

Weight:32kg

Fridge Tray1:460×730

Slide Length Closed2:530+20

Slide Length Open3: 1170+20

Overall Width4:820+20

Handle Width5:815

Drop6:300

Mount To Base:35

Max Set Back:125

Gas Strut:80N

(All Measurements Displayed Are In mm)



Package

All Fixing And Tie-Down Straps



Note

MSA 4X4 Fridge Barrier Is Available For This Model

SKU MSAA-DS45SIDE
Brand MSA
Shipping Weight 37.0000kg
Shipping Width 0.690m
Shipping Height 0.170m
Shipping Length 0.860m
Shipping Cubic 0.100878000m3
