Specification

Volts:12

Amps:90

Adjustment Hole (mm):M8x1.25

Pivot Hole (mm):10xM10x1.25

Adjustment to Pivot (mm):170

Pivot Length (mm):/

Inside Feet To Feet (mm):50

Pulley (mm):62

No Of Grooves:6PV

Plug:RP33



Reference Part Number

37300-2B510 , 373002B510

37300-2B500 , 373002B500



Fitment

Fit For Hyundai i20 PB engine G4FA 1.4L Petrol 2010-2014

Fit For Hyundai i20 PB engine G4FC 1.6L Petrol 2010-2013

Fit For Hyundai i30 FD engine G4FC 1.6L Petrol 2008-2012

Fit For Hyundai i30 FD engine D4FB 1.6L Diesel 01/2008-12/2012

Fit For Hyundai i30 GD engine G4FD 1.6L Petrol 2013-2016

Fit For Kia Rio UB engine G4FA 1.4L Petrol 2011-2017

Fit For Kia Rio UB engine G4FD 1.6L Petrol 2011-2017

Fit For Kia Soul AM engine G4NA 2.0L Petrol 2009-2014

Fit For Kia Soul AM engine G4NB 2.0L Petrol 2009-2014



Package

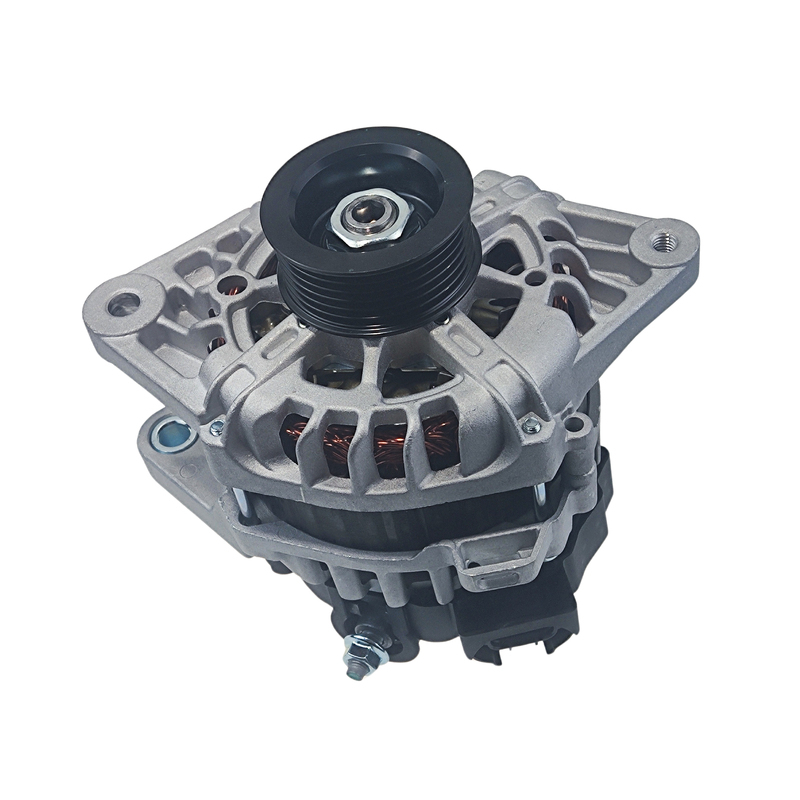

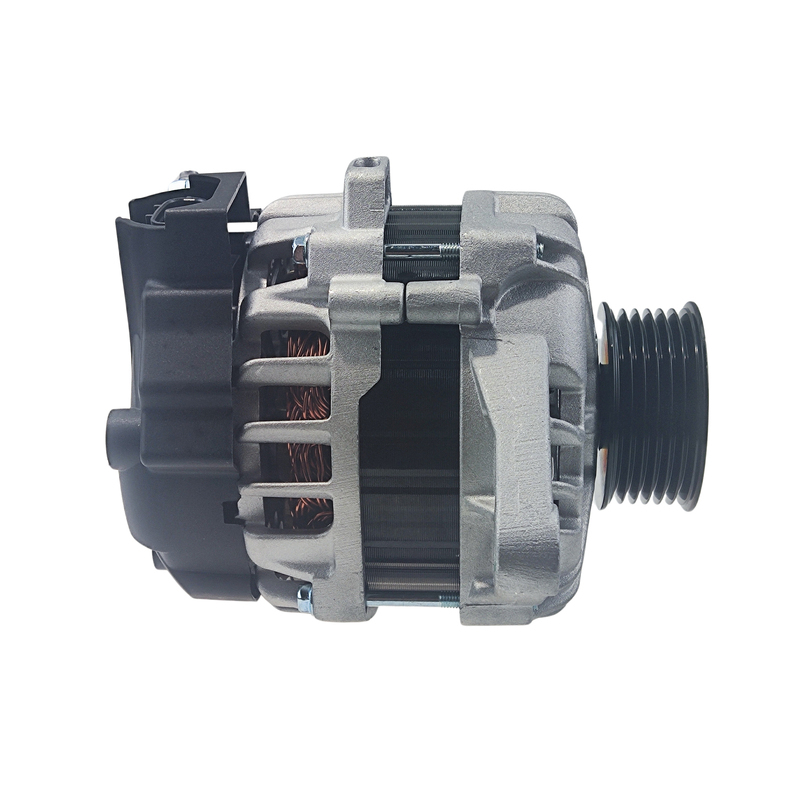

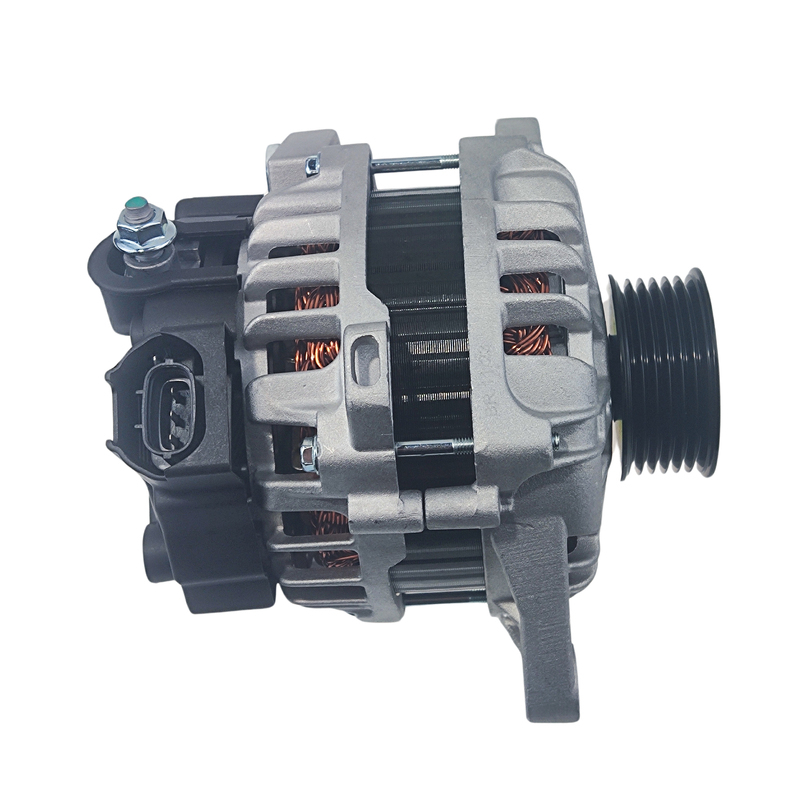

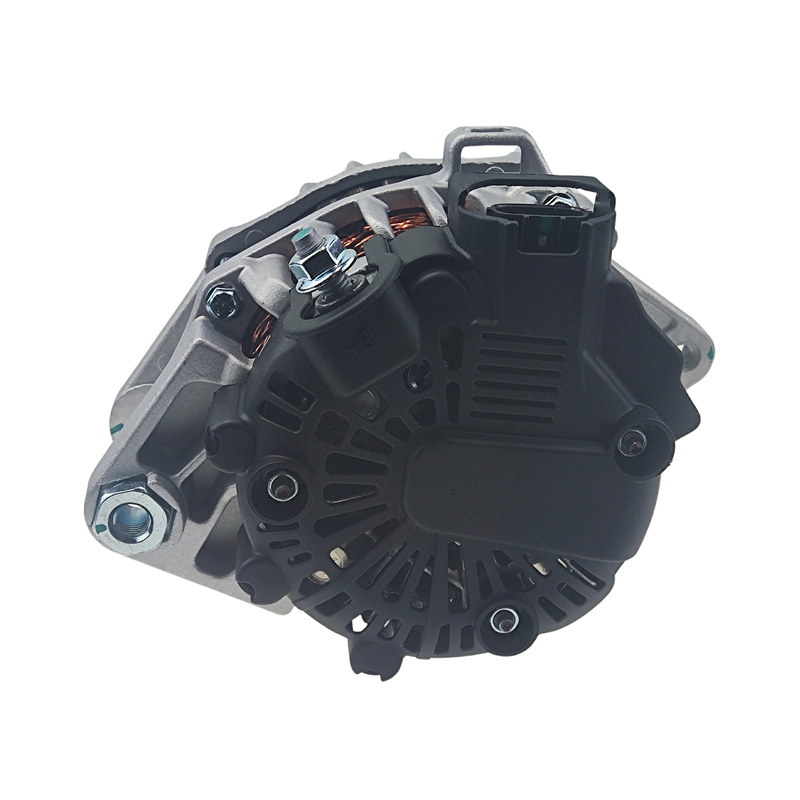

1 x Alternator(3 Pin Plug)

SKU ALTER-HY006
Brand POWEROY
Shipping Weight 8.7000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.270m
Shipping Cubic 0.010800000m3
