Specification

Application: For DELPHI CVCC

Type: Magnetic Coil

Material：Metal

Outer diameter：92mm

Inner diameter：60mm

Height：26.5mm

Pulley Ø: 105 mm

Operating Voltage: 12V (With Plug)

Belt Slot：6PK

Refrigerant：R134a

Number Of Grooves: 5

Size: 92* 60* 26.5mm/3.6*2.4*1 inch

Weight: 566g/1.5lbs/20oz

OEM Part Numbers

0165003/0, 24432392, 90559855, 9174396

Fitment

For Opel Astra G CC 1.4 16V F48, F08 02/1998-01/2005 1389 ccm, 66 KW, 90 PS
For Opel Astra G Caravan 1.4 16V F35 06/1998-07/2004 1389 ccm, 66 KW, 90 PS
For Opel Astra G Stafenheck 1.4 16V F69 09/1998-01/2005 1389 ccm, 66 KW, 90 PS
For Opel Zafira A 1.6 16V F75 04/1999-06/2005 1598 ccm, 74 KW, 101 PS
For Opel Zafira A 1.8 16V F75 04/1999-09/2000 1796 ccm, 85 KW, 116 PS
For Opel Astra G Coupe 1.8 16V F07 03/2000-10/2000 1796 ccm, 85 KW, 116 PS
For Opel Astra G CC 2.0 16V OPC F48, F08 11/1999-09/2002 1998 ccm, 118 KW, 160 PS
For Opel Astra G Coupe 2.0 16V Turbo F07 09/2000-08/2001 1998 ccm, 140 KW, 190 PS
For Opel Astra G Coupe 1.8 16V F07 09/2000-05/2005 1796 ccm, 92 KW, 125 PS
For Opel Corsa C 1.0 F08, F68 09/2000-06/2003 973 ccm, 43 KW, 58 PS
For Opel Corsa C 1.2 F08, F68 09/2000-12/2009 1199 ccm, 55 KW, 75 PS
For Opel Corsa C 1.8 F08, F68 09/2000-12/2009 1796 ccm, 92 KW, 125 PS
For Opel Corsa C 1.4 F08, F68 09/2000-12/2009 1389 ccm, 66 KW, 90 PS
For Opel Zafira A 1.8 16V F75 09/2000-06/2005 1796 ccm, 92 KW, 125 PS
For Opel Astra G CC 1.6 F48, F08 09/2000-01/2005 1598 ccm, 62 KW, 84 PS
For Opel Astra G CC 1.8 16V F48, F08 09/2000-01/2005 1796 ccm, 92 KW, 125 PS
For Opel Astra G Stafenheck 1.8 16V F69 06/2000-01/2005 1796 ccm, 92 KW, 125 PS
For Opel Astra G Caravan 1.8 16V F35 u09/2000-07/2004 1796 ccm, 92 KW, 125 PS
For Opel Astra G Convertible 1.6 16V F67 03/2001-10/2005 1598 ccm, 74 KW, 101 PS
For Opel Astra G Convertible 1.8 16V F67 03/2001-10/2005 1796 ccm, 92 KW, 125 PS
For Opel Zafira A 2.0 OPC F75 09/2001-06/2005 1998 ccm, 141 KW, 192 PS
For Opel Zafira A 1.6 CNG F75 09/2001-06/2005 1598 ccm, 71 KW, 97 PS
For Opel Corsa C Box 1.2 16V F08, W5L 09/2000-12/2017 1199 ccm, 55 KW, 75 PS
For Opel Astra G Convertible 2.0 OPC F67 03/2002-10/2005 1998 ccm, 141 KW, 192 PS
For Opel Astra G Caravan 2.0 OPC F35-u09/2002-07/2004 1998 ccm, 141 KW, 192 PS
For Opel Astra G CC 2.0 OPC F48, F08 09/2002-01/2005 1998 ccm, 141 KW, 192 PS
For Opel Meriva 1.8 05/2003-05/2010 1796 ccm, 92 KW, 125 PS
For Opel Astra G Coupe 2.0 16V Turbo F07 08/2001-05/2005 1998 ccm, 141 KW, 192 PS
For Opel Astra G Caravan 1.6 CNG F35 u03/2003-07/2004 1598 ccm, 71 KW, 97 PS
For Opel Meriva 1.6 -05.2003-05/2010 1598 ccm, 64 KW, 87 PS
For Opel Meriva 1.6 16V -05.2003-01/2006 1598 ccm, 74 KW, 100 PS
For Opel Astra G CC 1.6 F48, F08 12/2002-01/2005 1598 ccm, 76 KW, 103 PS
For Opel Astra G CC 2.0 OPC F48, F08 11/2002-01/2005 1998 ccm, 147 KW, 200 PS
For Opel Astra G Stafenheck 1.6 F69 12/2002-12/2009 1598 ccm, 76 KW, 103 PS
For Opel Astra G Caravan 1.6 F35 12/2002-07/2009 1598 ccm, 76 KW, 103 PS
For Opel Astra G Caravan 2.0 OPC F35.u 11/2002-07/2004 1998 ccm, 147 KW, 200 PS
For Opel Astra G Coupe 2.0 16V Turbo F07 11/2002-05/2005 1998 ccm, 147 KW, 200 PS
For Opel Astra G Convertible 2.0 16V Turbo F67 11/2002-10/2005 1998 ccm, 147 KW, 200 PS
For Opel Combo Tour 1.6 - 10.2001-12/2017 1598 ccm, 64 KW, 87 PS
For Opel Zafira A 2.0 OPC F75 11/2002-06/2005 1998 ccm, 147 KW, 200 PS
For Opel Astra G Convertible 1.6 F67 01.2003-10/2005 1598 ccm, 76 KW, 103 PS
For Opel Tigra Twintop 1.8 06/2004-12/2009 1796 ccm, 92 KW, 125 PS
For Opel Meriva 1.4 16V Twinport -07/2004-05/2010 1364 ccm, 66 KW, 90 PS
For Opel Corsa C 1.4 Twinport F08, F68 06/2003-12/2009 1364 ccm, 66 KW, 90 PS
For Opel Astra G Coupe 1.6 16V F07 03/2000-05/2005 1598 ccm, 76 KW, 103 PS
For Opel Meriva 1.6 -01/2006-05/2010 1598 ccm, 77 KW, 105 PS
For Opel Combo Box / Combi 1.6 CNG 16V -06/2006-12/2017 1598 ccm, 69 KW, 94 PS
For Opel Combo Tour 1.6 CNG 06/2006-12/2017 1598 ccm, 69 KW, 94 PS
For Opel Meriva 1.6 Turbo 09/2005-05/2010 1598 ccm, 132 KW, 180 PS
For Opel Combo Box / Combi 1.6 CNG 16V 04/2005-12/2017 1598 ccm, 71 KW, 97 PS
For Opel Combo Tour 1.6 CNG -04/2005-12/2017 1598 ccm, 71 KW, 97 PS
For Opel Meriva 1.4 16V Twinport LPG -07/2004-05/2010 1364 ccm, 66 KW, 90 PS
For Opel Astra G CC 1.6 16V F48, F08 02/1998-01/2005 1598 ccm, 74 KW, 101 PS
For Opel Astra G CC 1.8 16V F48, F08 02/1998-09/2000 1796 ccm, 85 KW, 116 PS
For Opel Astra G CC 2.0 16V F48, F08 02/1998-01/2005 1998 ccm, 100 KW, 136 PS
For Opel Astra G Caravan 1.6 16V F35 u02/1998-07/2004 1598 ccm, 74 KW, 101 PS
For Opel Astra G Caravan 1.8 16V F35 a.02/1998-09/2000 1796 ccm, 85 KW, 116 PS
For Opel Astra G Caravan 2.0 16V F35 a.02/1998-07/2004 1998 ccm, 100 KW, 136 PS
For Opel Astra G Stafenheck 1.6 F69 09/1998-09/2000 1598 ccm, 55 KW, 75 PS
For Opel Astra G Stafenheck 1.6 16V F69 09/1998-01/2005 1598 ccm, 74 KW, 101 PS
For Opel Astra G Stafenheck 1.8 16V F69 09/1998-09/2000 1796 ccm, 85 KW, 116 PS
For Opel Astra G Stafenheck 2.0 16V F69 09/1998-01/2005 1998 ccm, 100 KW, 136 PS 16V Turbo F07 09/2000-08/2001
For Opel Astra G Coupe 1.8 16V F07 09/2000-05/2005
For Opel Corsa C 1.0 F08, F68 09/2000-06/2003
For Opel Corsa C 1.2 F08, F68 09/2000-12/2009
For Opel Corsa C 1.8 F08, F68 09/2000-12/2009
For Opel Corsa C 1.4 F08, F68 09/2000-12/2009
For Opel Zafira A 1.8 16V F75 09/2000-06/2005
For Opel Astra G CC 1.6 F48, F08 09/2000-01/2005
For Opel Astra G CC 1.8 16V F48, F08 09/2000-01/2005
For Opel Astra G Stafenheck 1.8 16V F69 06/2000-01/2005
For Opel Astra G Caravan 1.8 16V F35 09/2000-07/2004
For Opel Astra G Convertible 1.6 16V F67 03/2001-2010

Package

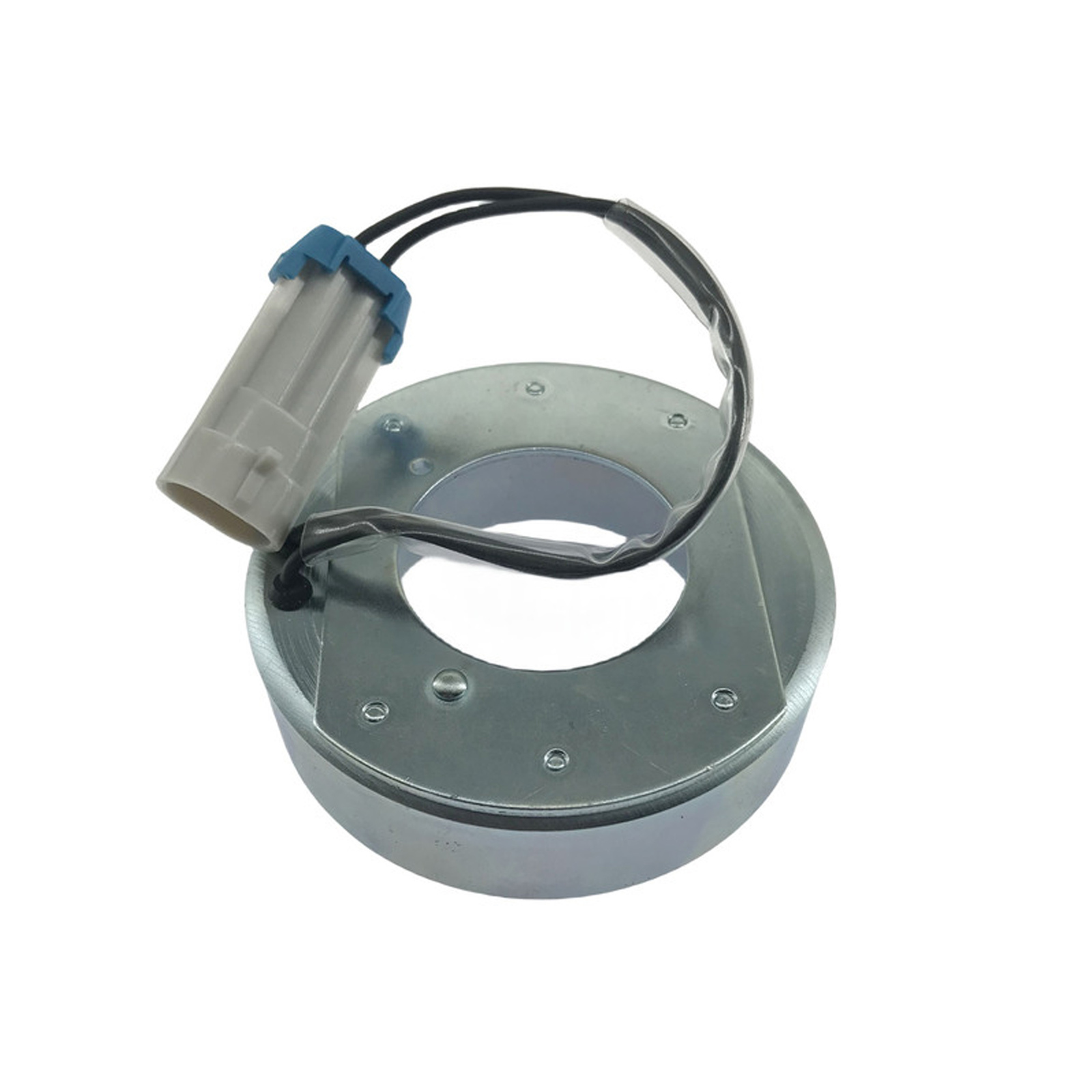

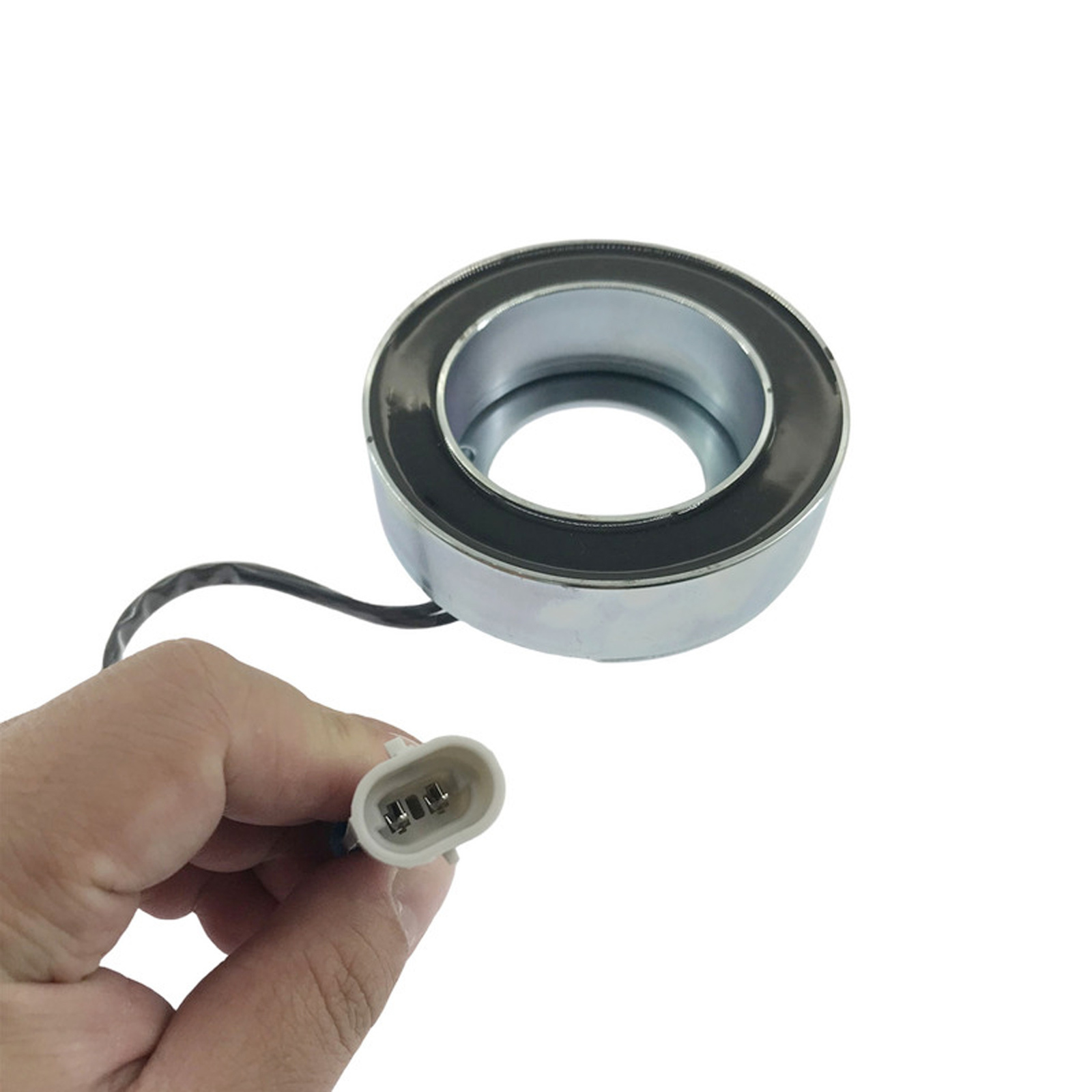

1 x Air Conditioning Compressor Clutch Coil
