Caravan Camper Trailer Stone Shield Guard Protect & Mud Flaps RV 2310mm x 500mm
SKU code: GUARD-VAN001
Features
Perfect For Your Caravan Stone Guard Kit.
Caravan Stone Shield With Mesh 3pcs Black 2310mm x 500mm
Protect Your Rv By Stopping Flying Objects From The Road,Such As Stones And Debris,Perfect For Your Travel.
Made From Top Quality Mesh,Tough,Resistant To Rips Or Tears.
Installing This Stone Shield To Protect Your Caravan's Paintwork,No More Chipping And Denting,Keep Your Caravan Looking Like New.

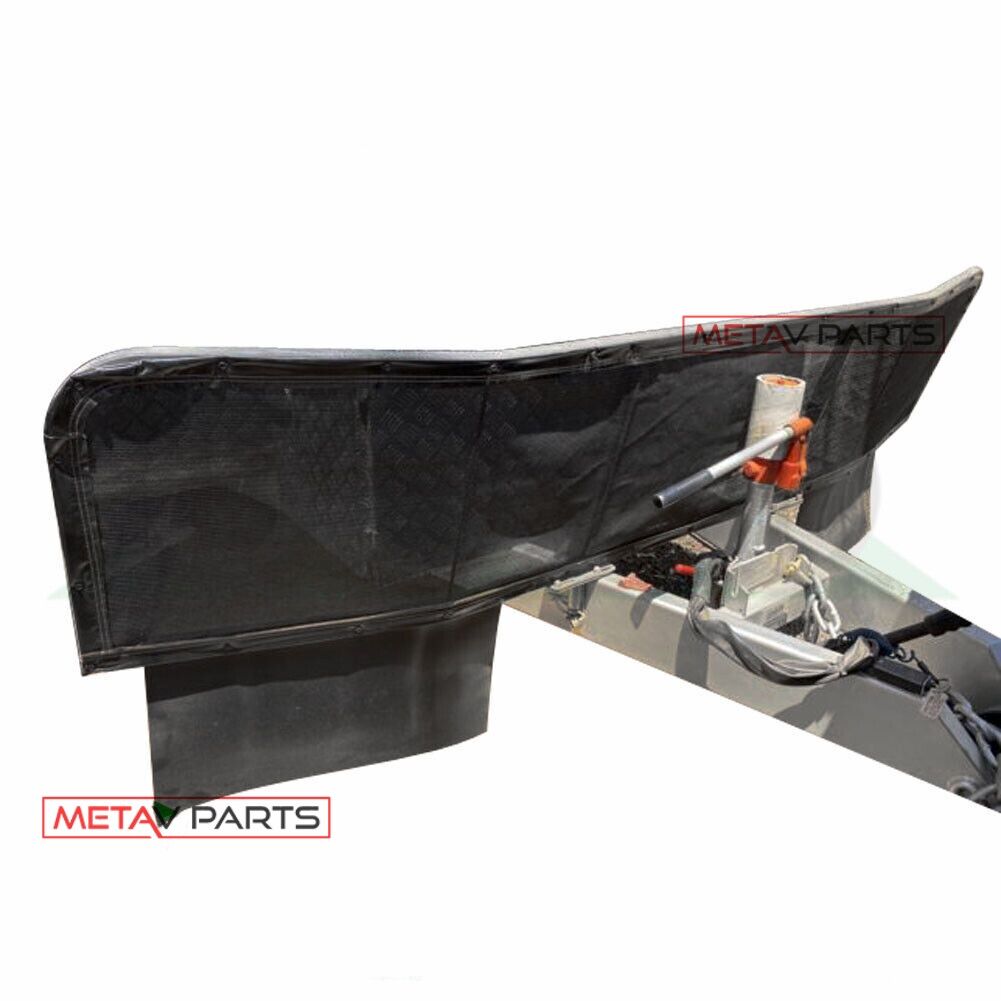

Easy Assembly And Quick To Install To The A-Frame Of Your Caravan Or Camper Trailer.
Also Comes With Two Extra-Large Heavy Duty Rubber Mud Flaps To Protect The Undercarriage.
Dimensions: 2310mm x 500mm
Net Weight: 17Kg
Note
The Stone Shield Can Be Fitted Onto A-Frames,Provided It Is Between The Widths: 415mm~750mm.
The U-Brackets Can Fit Onto A-Frame Bars,Provided It Is Width:50mm, Height Can Vary:100mm 125mm 150mm.
With The Mounting Feet Bolted Onto The Frame,Lift The Stone Shield Frame Onto The A-Frame So That The Downward Prongs Fit Into The Receptors On The U-Brackets.
Use The Locking 'R' Pins To Lock The Stone Shield Frame To The Receptors,Stopping The Stone Shield Frame From Lifting.

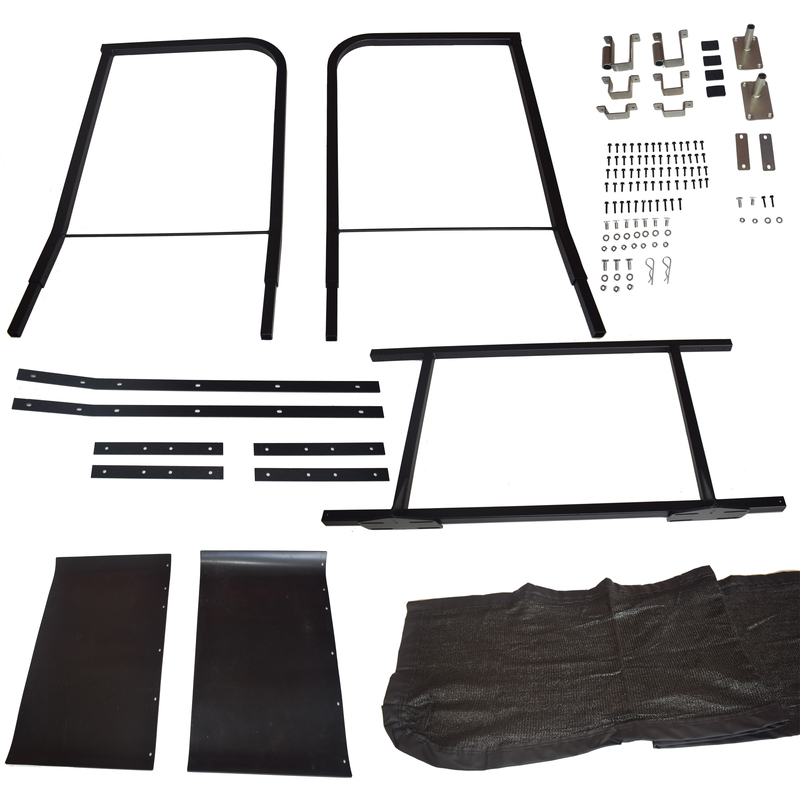

Package

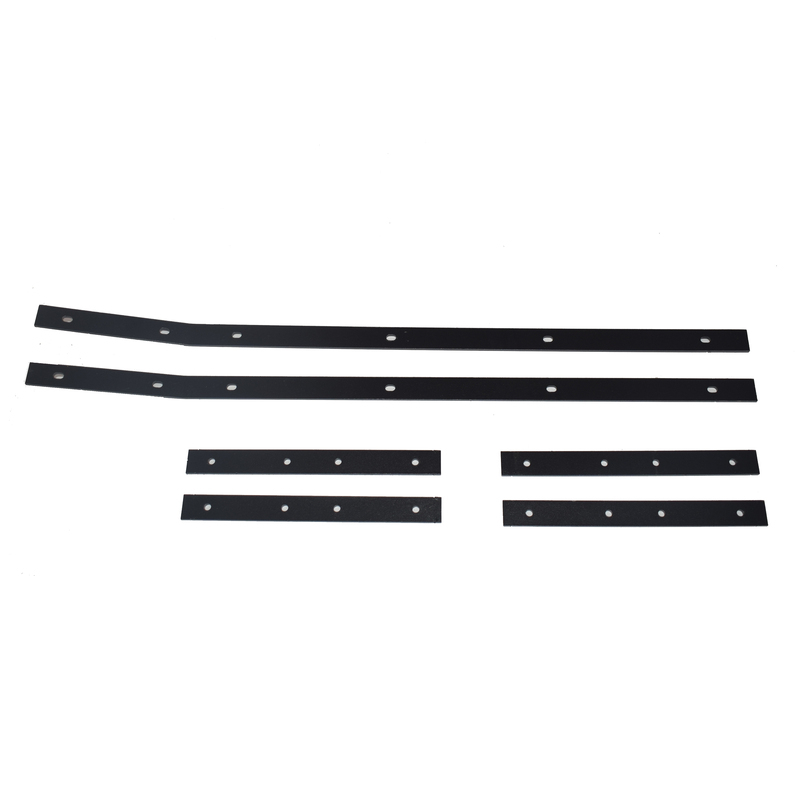

2 x Mud Flap Bars

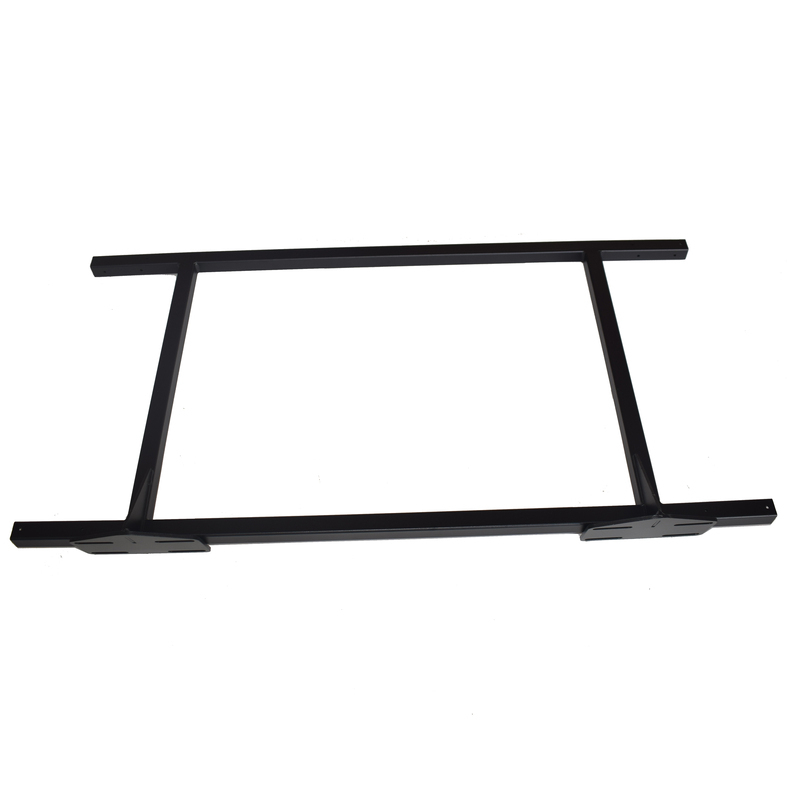

1 x Centre Piece

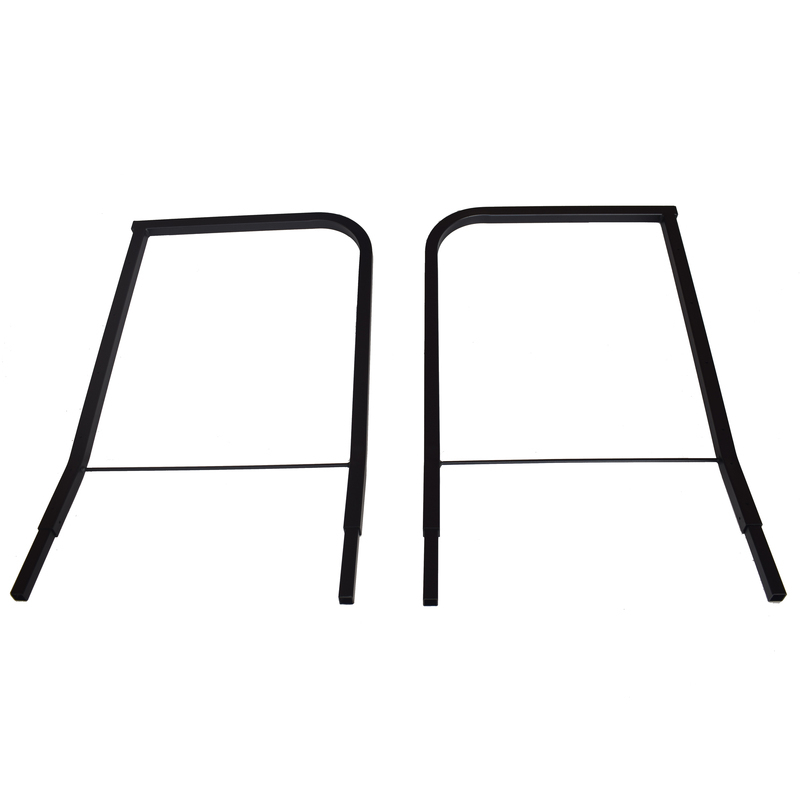

1 x LH End Piece
1 x RH End Piece

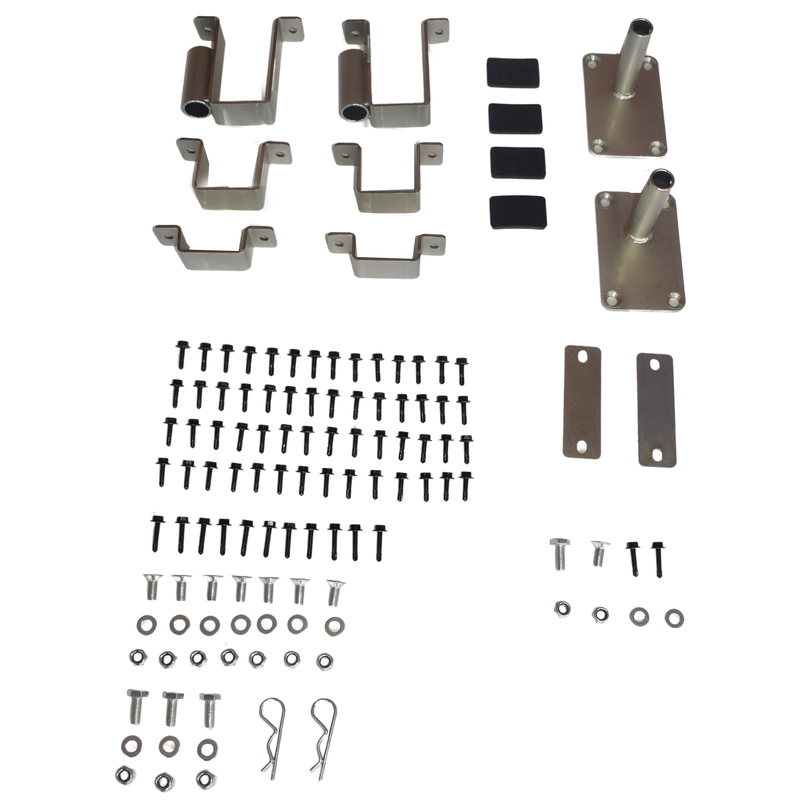

2 x A-Frame Receptors
2 x Locking 'R' Pins
2 x Mounting Kits,includes 4 rubber spacers

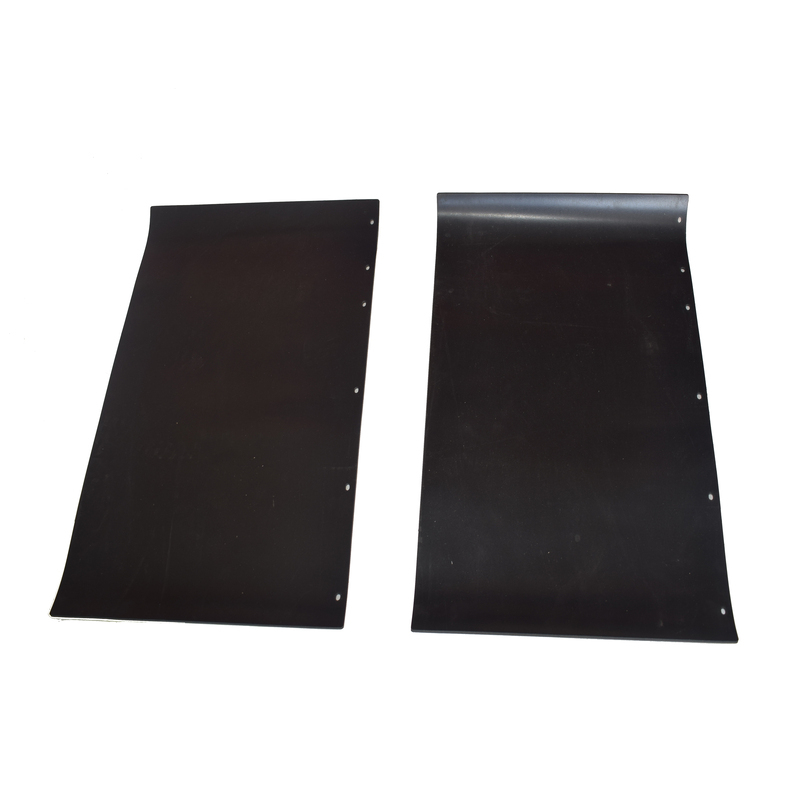

2 x Rubber Mud Flaps

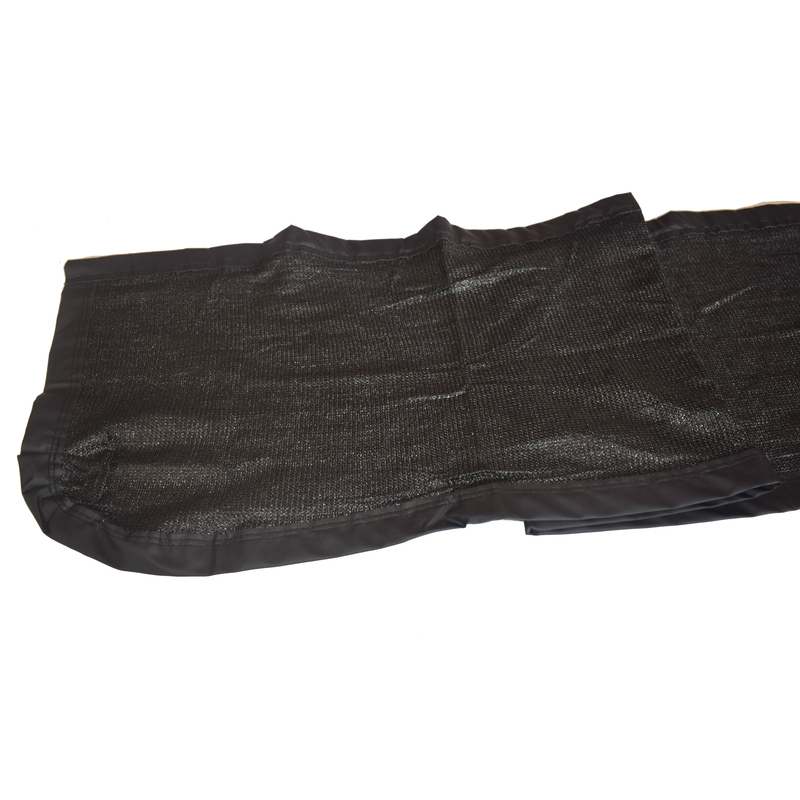

1 x Rip Stop Mesh
1 Bag 18mm Threaded Screws
1 Bag 15mm Threaded Screws
SKU | GUARD-VAN001 |
Brand | MACHTER AUTOPARTS |
Shipping Weight | 17.7000kg |
Shipping Width | 0.059m |
Shipping Height | 0.140m |
Shipping Length | 0.900m |
Shipping Cubic | 0.007434000m3 |
