Features

Compact size

Easy install

Lock-in and lock-out safety system

Powder-coated steel frame construction

Stainless steel and blue anodised aluminium fittings

Travel lock and key

Anodised blue faceplate

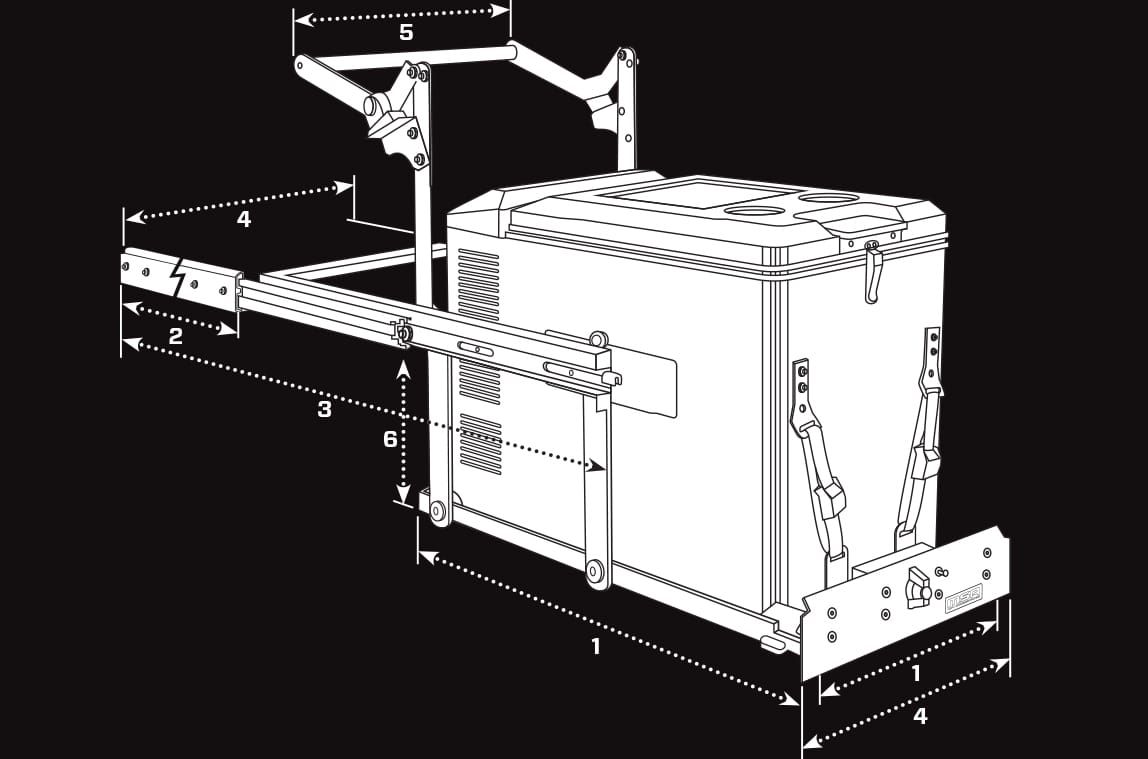

Specification

Weight:35kg

Fridge Tray1:810×480

Slide Length Closed2:880+20

Slide Length Open3:1860+20

Overall Width4:590+20

Handle Width5:535

Drop6:300

Mount to Base:35

Max Set Back :120

Gas Strut:800N

Freight Dimensions:860×690×170

Freight Weight:38kg

(all measurements displayed are in mm)

Package

Drop Slide & All fixing and tie-down straps



Note

MSA 4X4 Fridge Barrier is available for this model

SKU MSAA-DS50
Brand MSA
Shipping Weight 38.0000kg
Shipping Width 0.690m
Shipping Height 0.170m
Shipping Length 0.860m
Shipping Cubic 0.100878000m3
