Feature

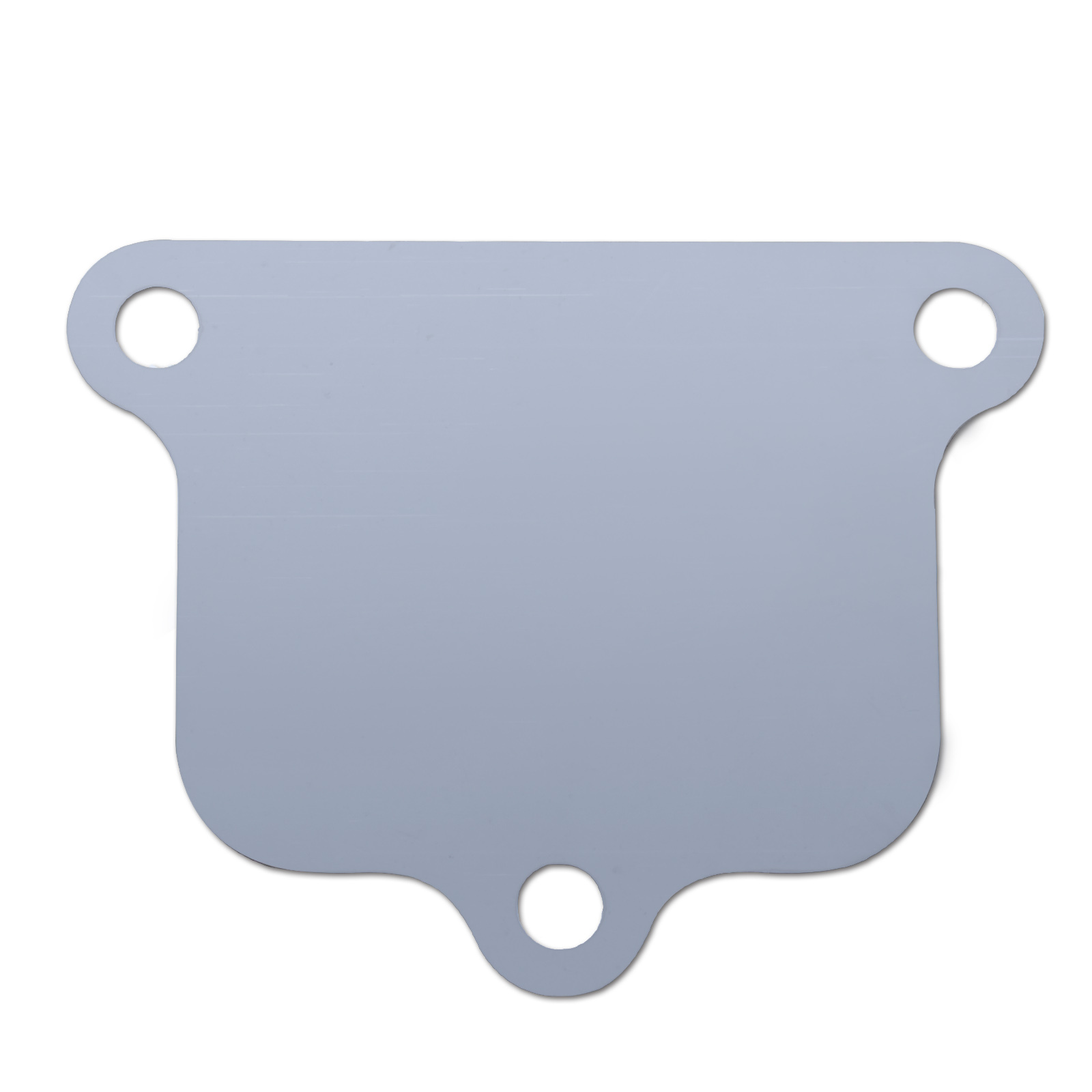

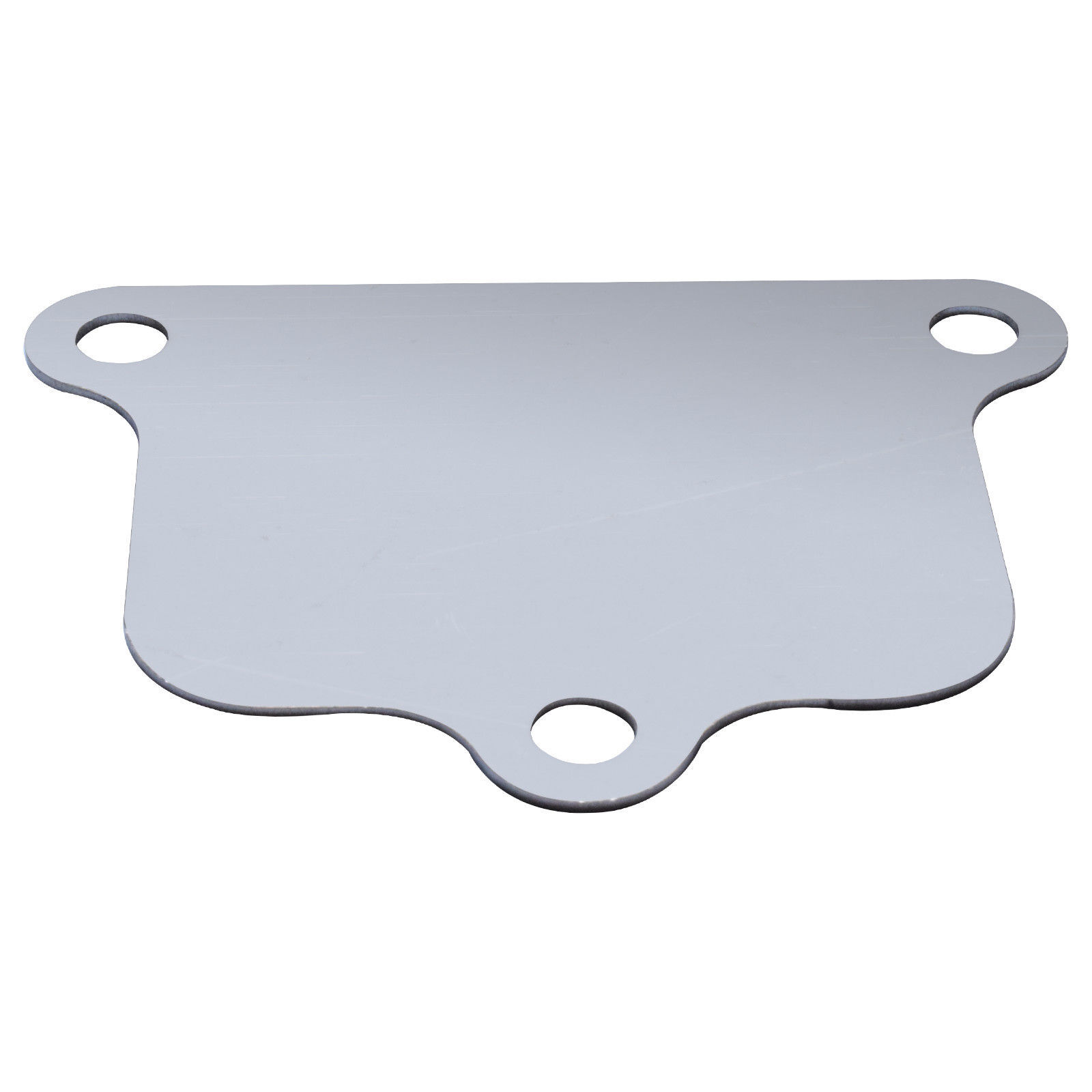

Brand new high quality EGR blanking plate
Material: 304 stainless steel

It fits on the exhaust manifold; the side of the gasket on the EGR cooler flange

Prevents loss of coolant out the exhaust pipe in event of EGR cooler failure

Direct replacement; High performance part



Fitment

Ford PX 1 & PX 2 Ranger

Mazda BT-50

From late 2011 to 2015

2.2L 4cyl & 3.2L 5cyl engines



Package

1 x Plate



Installation Guide

1.See the images (above) for the location of the EGR cooler and where to insert the plate.

2.Remove the 3 bolts connecting the EGR cooler to the exhaust manifold

3.Loosen the mounting bolt/s of the EGR cooler

4.Apply silicon sealant around the edges of the EGR plate

5.Slide the EGR plate in onto the cooler side of metal gasket

6.Replace the 3 bolts and tighten - Factory recommends torque to be 23 nm
7.Tighten the mounting bolt - 23 nm

SKU BP-FD016
Brand MACHTER AUTOPARTS
Shipping Weight 0.1000kg
Shipping Width 0.050m
Shipping Height 0.020m
Shipping Length 0.100m
Shipping Cubic 0.000100000m3
