Specification

Bearing Shell: STD 0.00

Piston Diameter: 76.51mm

Piston Wrist: 19mm

Ring Thickness: 1st 1.2mm / 2nd 1.5mm / 3rd / 2.0mm

OEM Parts Numbers For Pistons & Rings

03C 107 065 BL

03C 107 065 AQ / AS / BF / BN / CE / CK

03C 198 151 B / F / M / Q / P

06A 107 441 (19mm)

76 L 92

40846600

OEM Parts Numbers For Bearing Shell

036 105 561 C

036 105 591 C

03C 105 701 D

OEM Parts Number For Bearing Shell Replacement

03C 105 701 F

OEM Parts Numbers For Seals & Gasket Kit

03C 103 383 AH

036 103 171 B

03C 109 287 G

03C 103 383 AE

OEM Parts Numbers For Timing Kit

03C 109 088 E

03C 109 158 A

03C 115 230 C

03C 109 507 AH

03C 109 507 AD

03C 105 209 AR

03C 109 469 K

03C 109 509 P

Fitment

Fit For 1.4 TSI/TFSI EA111 Turbo/Supercharged Twin Charger Engine

Fit For Volkswagen Beetle 1.4 TSI CAVD CNWA CTHD CTKA 118kw (160ps) 2012-2016

Fit For Volkswagen CC 1.4 TSI CKMA CTHD 118kw (160ps) 2012-2016

Fit For Volkswagen EOS 1.4 TSI CAVD CTHD 118kw (160ps) 2009-2016

Fit For Volkswagen Golf (MKV) 1.4 TSI BMY 103kw (140ps)/BLG 125kw (170ps) 2007-2009

Fit For Volkswagen Golf (MKVI) 1.4 TSI CAVD CNWA CTHD CTKA 118kw (160ps) 2009-2013

Fit For Volkswagen Golf Plus 1.4 TSI BMY 103kw (140ps)/BLG 125kw (170ps) 2006-2008

Fit For Volkswagen Golf Plus 1.4 TSI CAVD CNWA 118kw (160ps) 2009-2014

Fit For Volkswagen Jetta 1.4 TSI BMY 103kw (140ps) / BLG 125kw (170ps) 2006-2008

Fit For Volkswagen Jetta 1.4 TSI CAVD CNWA CTHD CTKA 118kw (160ps) 2009-2014

Fit For Volkswagen Passat 1.4 TSI CKMA CTHD 118kw (160ps) 2011-2015

Fit For Volkswagen Polo GTI (6R) 1.4 TSI CAVE CTHE 132kw (180ps) 2010-2015

Fit For Volkswagen Scirocco 1.4 TSI CAVD CNWA CTHD CTKA 118kw (160ps) 2009-2015

Fit For Volkswagen Sharan 1.4 TSI CAVA CTHA 110kw (150ps) 2011-2015

Fit For Volkswagen Touran 1.4 TSI BMY 103kw (140ps)/BLG 125kw (170ps) 2006-2008

Fit For Volkswagen Touran 1.4 TSI CAVC CTHC 103kw (140ps)/CAVB CTHB 125kw (170ps) 2009-2015

Fit For Volkswagen Tiguan 1.4 TSI BWK CAVA CTHA 110kw (150ps) 2008-2016

Fit For Volkswagen Tiguan 1.4 TSI CAVD CTHD 118kw (160ps) 2010-2016

Fit For Audi A1 1.4 TFSI CAVG CTHG CTJA 136kw (185ps) 2011-2014

Fit For Skoda Fabia 1.4 TSI CAVE CTHE 132kw (180ps) 2011-2015

Fit For Seat Alhambra 1.4 TSI CAVA CTHA CNWB 110kw (150ps) 2011-2015

Fit For Seat Ibiza/Ibiza FR 1.4 TSI CAVF CNUB 110kw (150ps)/CAVE CTHE 132kw (180ps) 2010-2015

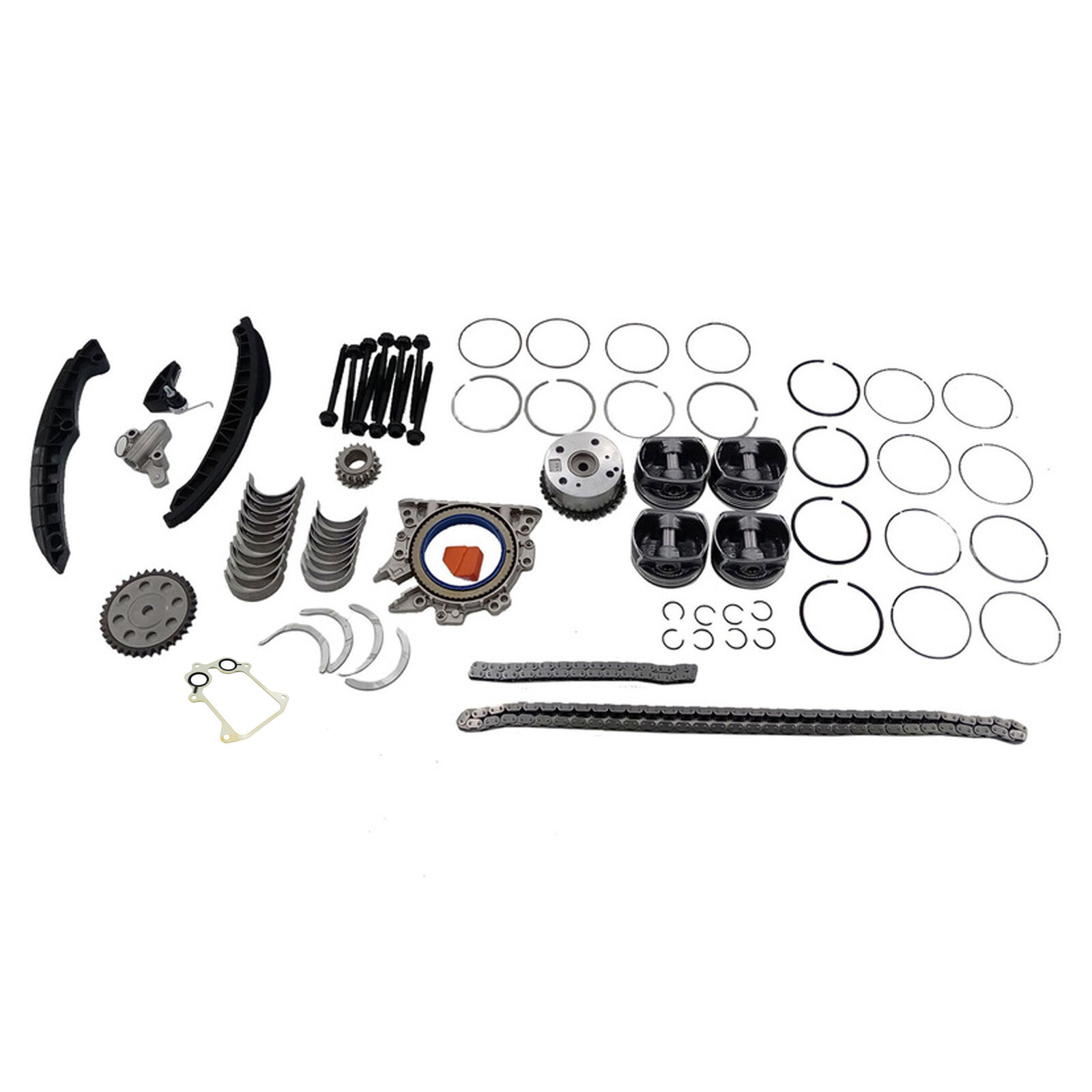

Package

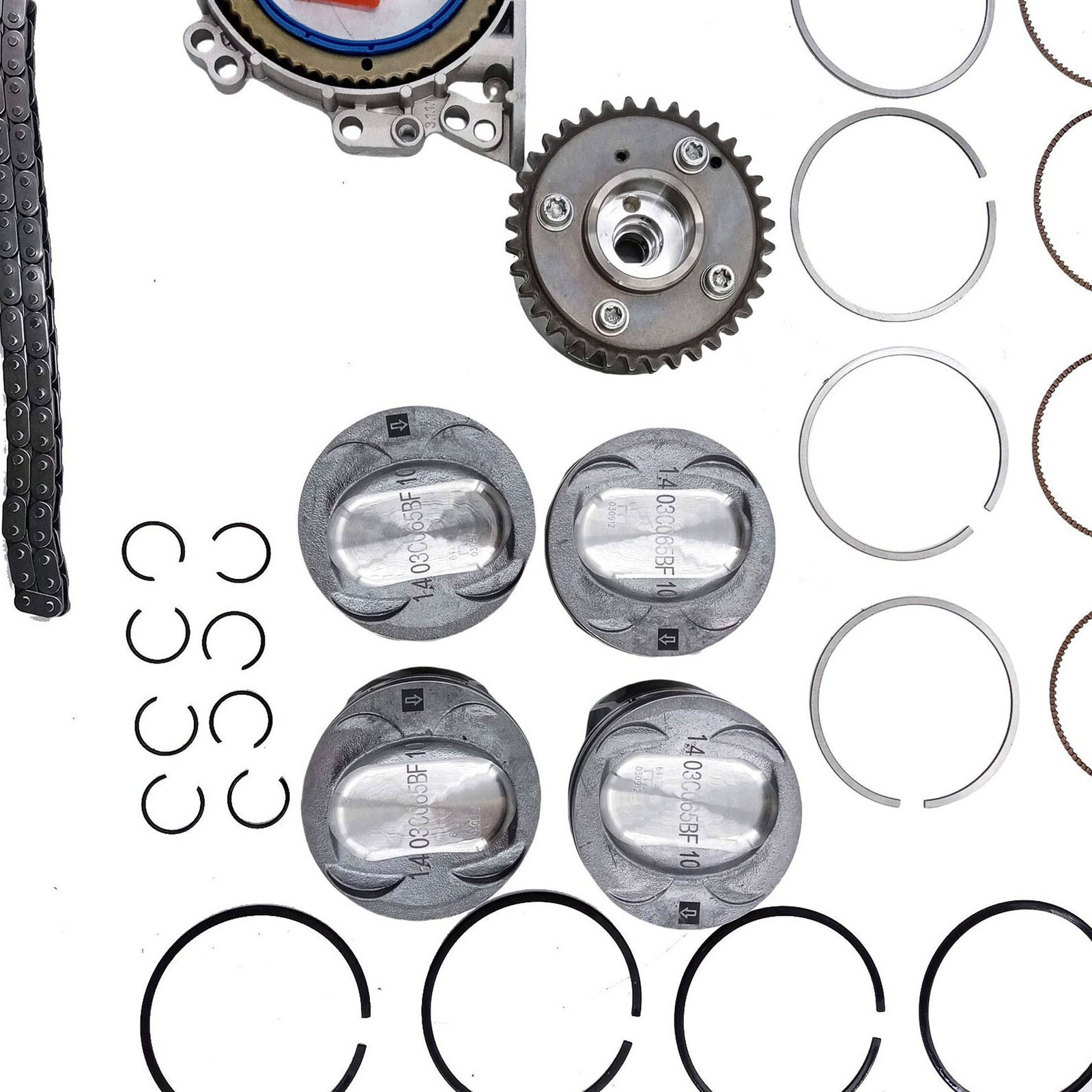

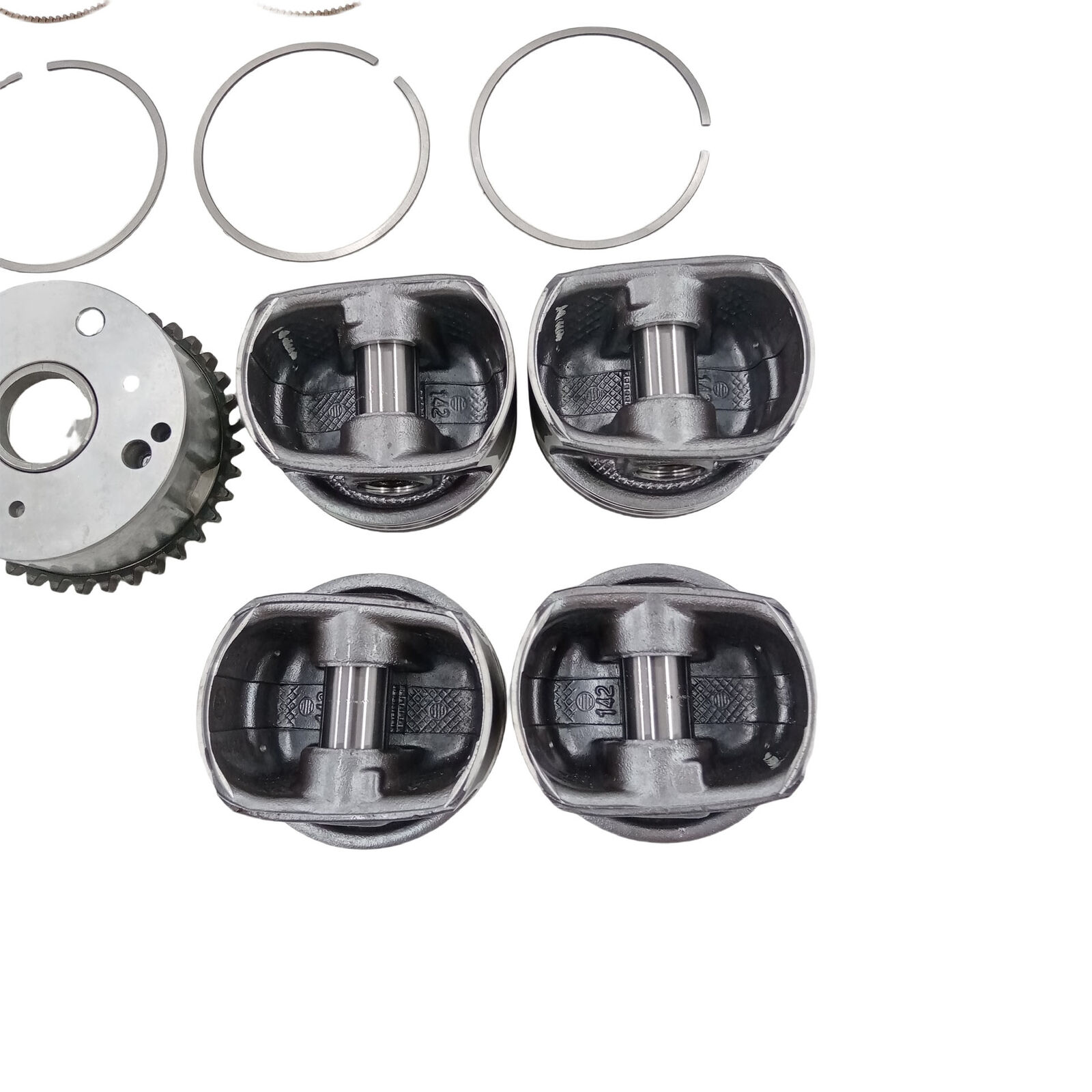

4 Pcs x Piston & Piston Ring & Snap Ring

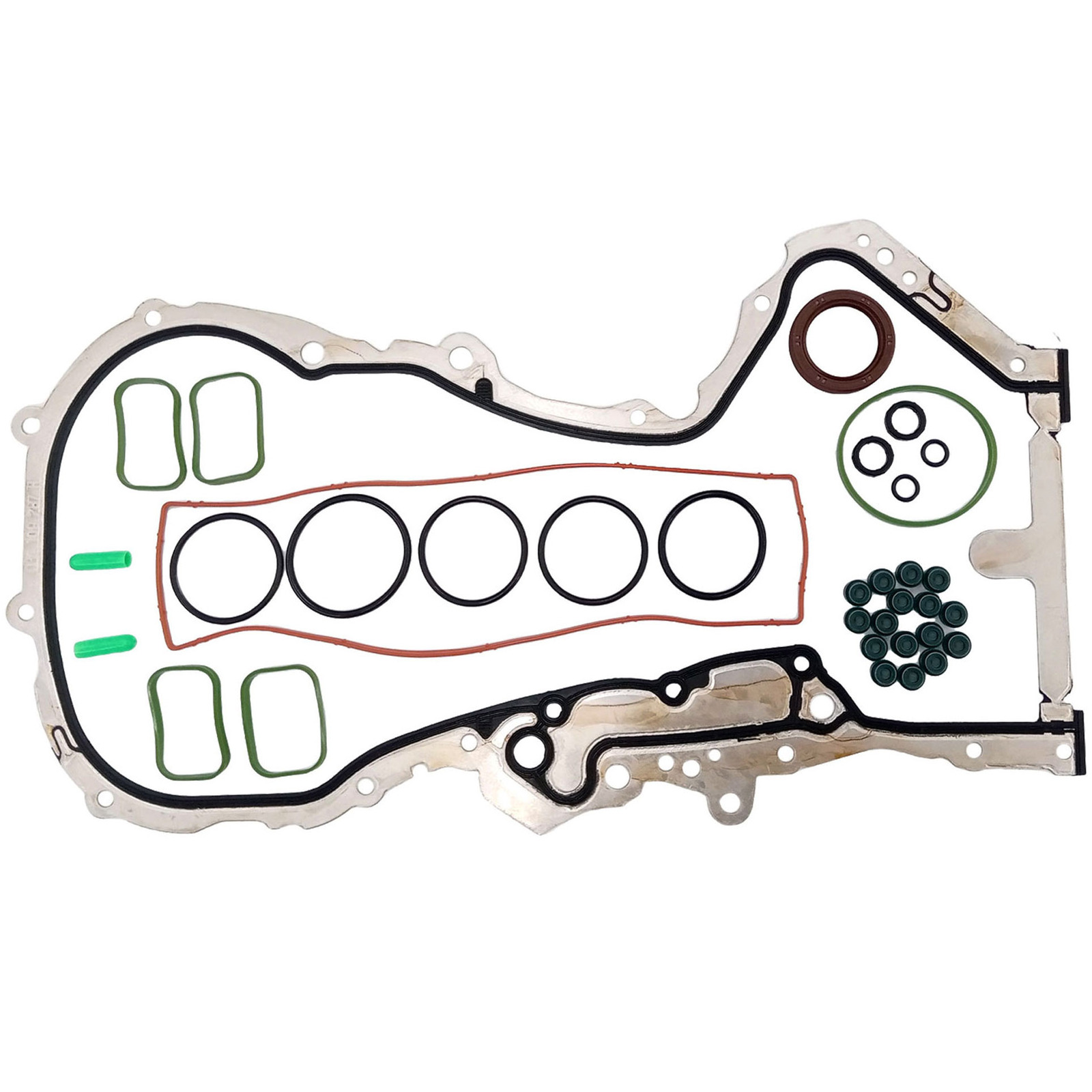

1 Set x Gasket Seals Kit

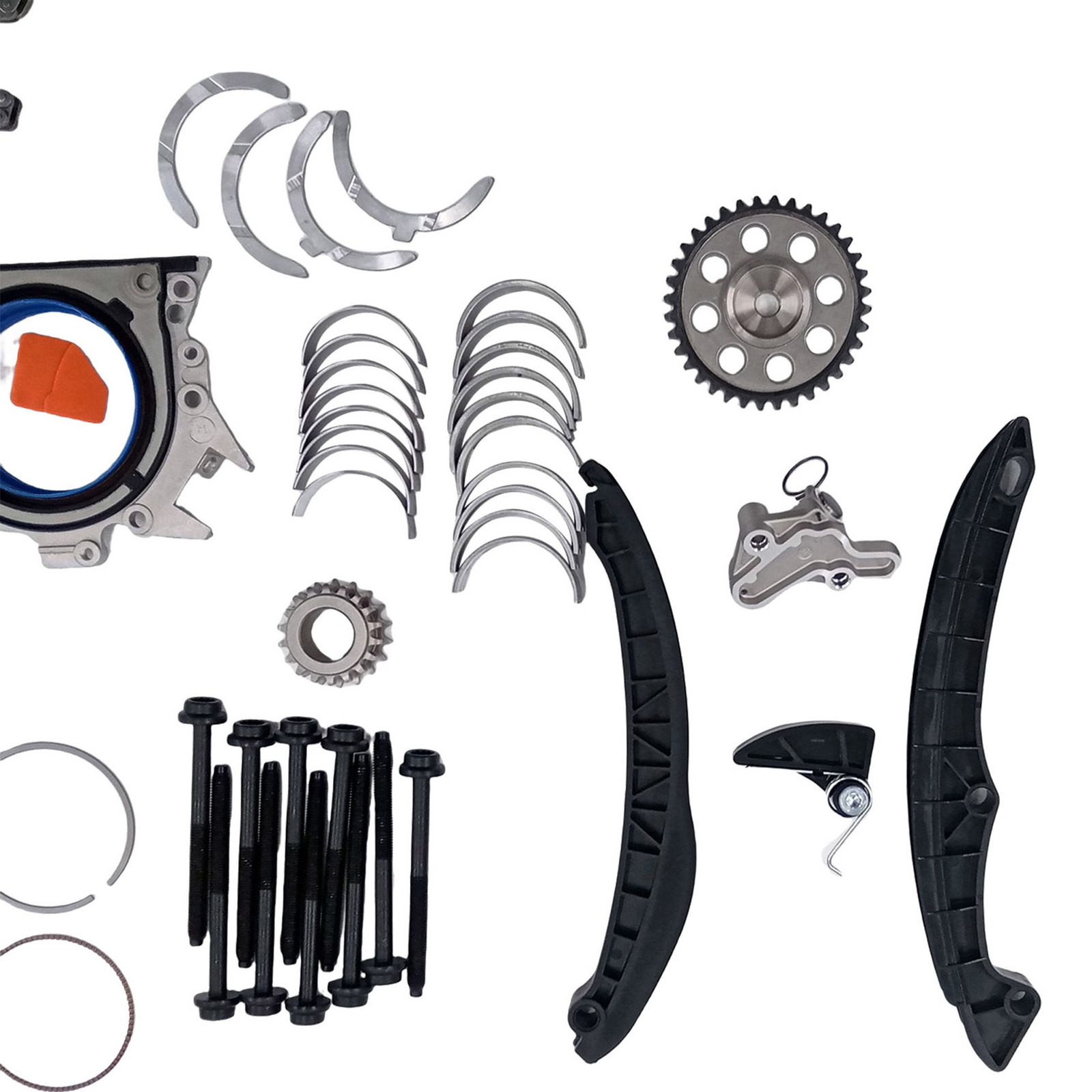

1 Set x Bearing Shells

1 Set x Timing Kit

10 Pcs x Head Bolt

16 Pcs x Valves
