Specification

Spline Quantity : 30

Flange Offset (MM) : 53.4

Flange Diameter (MM) : 139

Flange Bolt Hole Quantity : 4

Wheel Pilot Diameter (MM) : 67

Brake Pilot Diameter (MM) : 69

Wheel Stud Quantity : 5

Hub Pilot Diameter (MM) : 92

Flange Shape : MODIFIED

Anti-Lock Brake Sensor Included : No

Bolt Circle Diameter (MM) : 114.3

Bolt Circle Diameter (IN) : 4.5



Fitment

For Front

Fit For Hyundai Tucson TL TLE 1.6L 2.0L FWD 2015- 2021

Fit For Hyundai Santa Fe DM CM 2.2L 2.4L 2.7L 3.3L 3.5L FWD 4WD 2015- 2021

Fit For Hyundai Sonata LF 2.0L 2.4L FWD 2014- 2020

Fit For Kia Sorento UM XM 2.2L 2.4L 3.5L AWD FWD 2009 - 2020



For Rear

Fit For Hyundai Genesis DH 3.8L RWD 11/2014-08/2017

Fit For Kia Sorento UM 2.2L AWD 06/2015-06/2020

Fit For Kia Sorento XM 2.2L AWD 10/2009-05/2015

Fit For Hyundai Santa Fe CM 2.2L 4WD 11/2006-10/2009

Fit For Hyundai Santa Fe CM 2.2L, 2.7L, 3.3L, 3.5L FWD 4WD 11/2006-08/2012

Fit For Hyundai Santa Fe DM 2.4L, 3.3L AWD 09/2012-11/2018

Fit For Hyundai Santa Fe SM 2.7L 4WD 11/2000-04/2006



Package

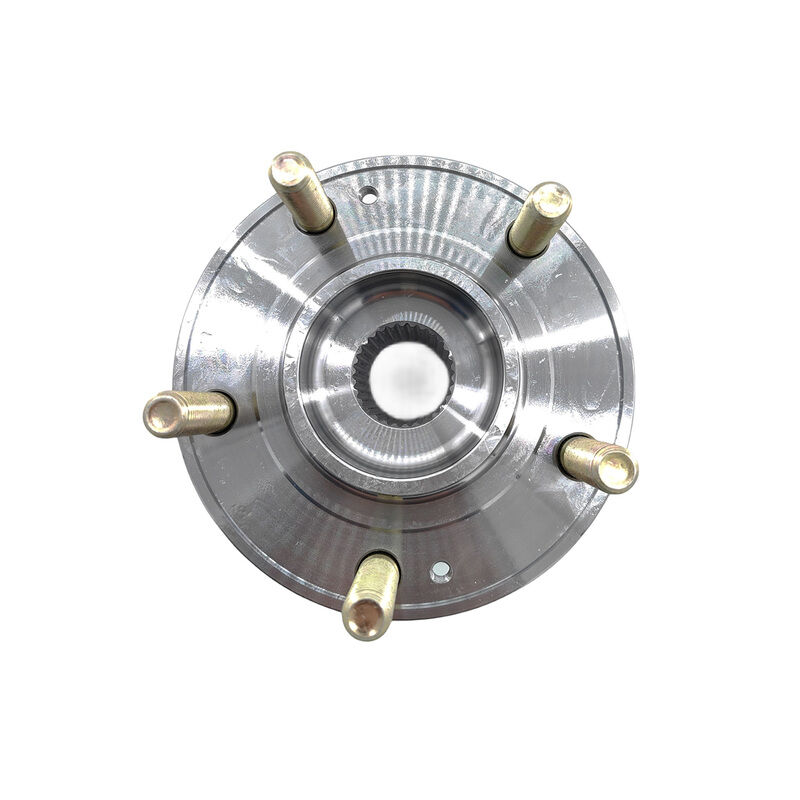

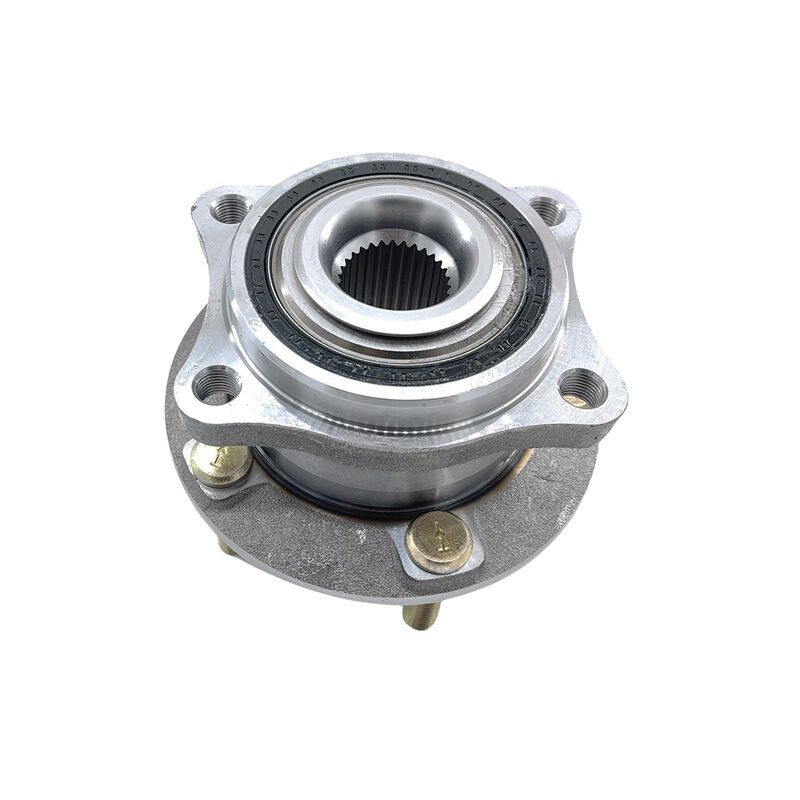

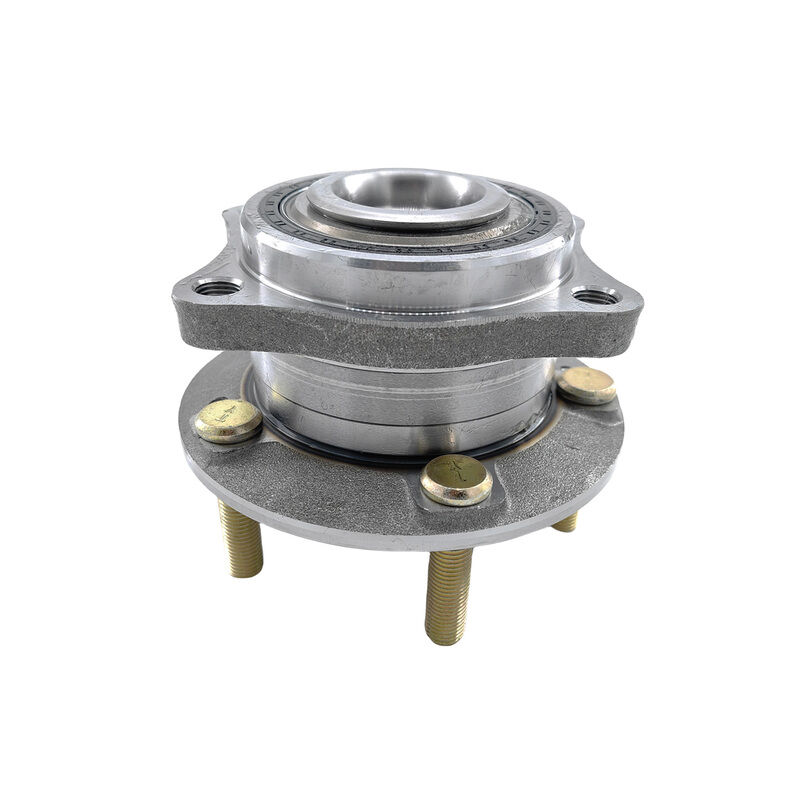

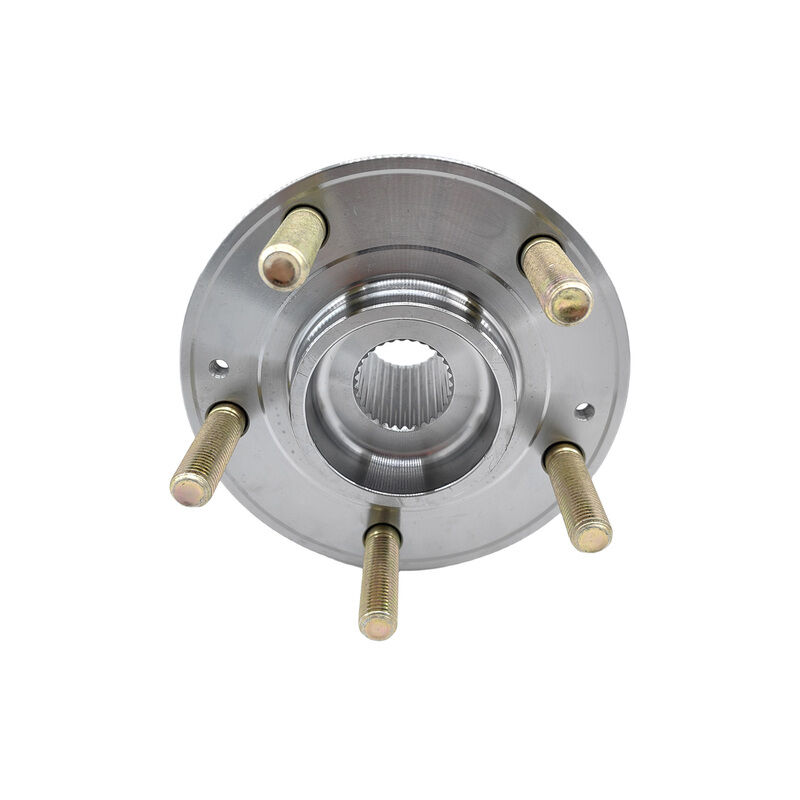

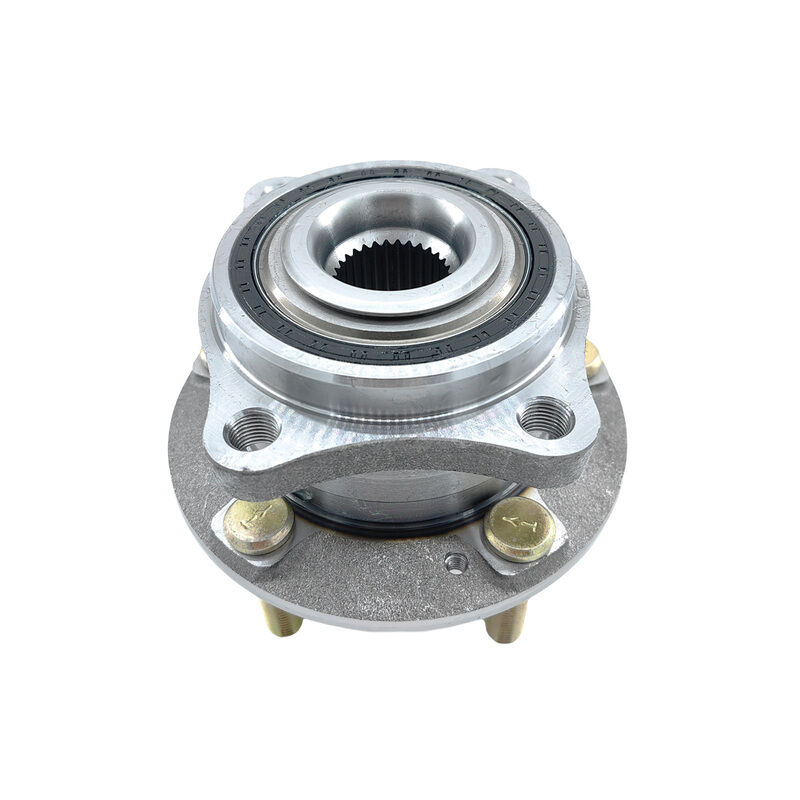

1 x Front / Rear Wheel Bearing Hub Assembly (Left Or Right)

SKU WH-HY010-1PCS
Brand POWEROY
Shipping Weight 3.9500kg
Shipping Width 0.160m
Shipping Height 0.145m
Shipping Length 0.165m
Shipping Cubic 0.003828000m3
