Specification

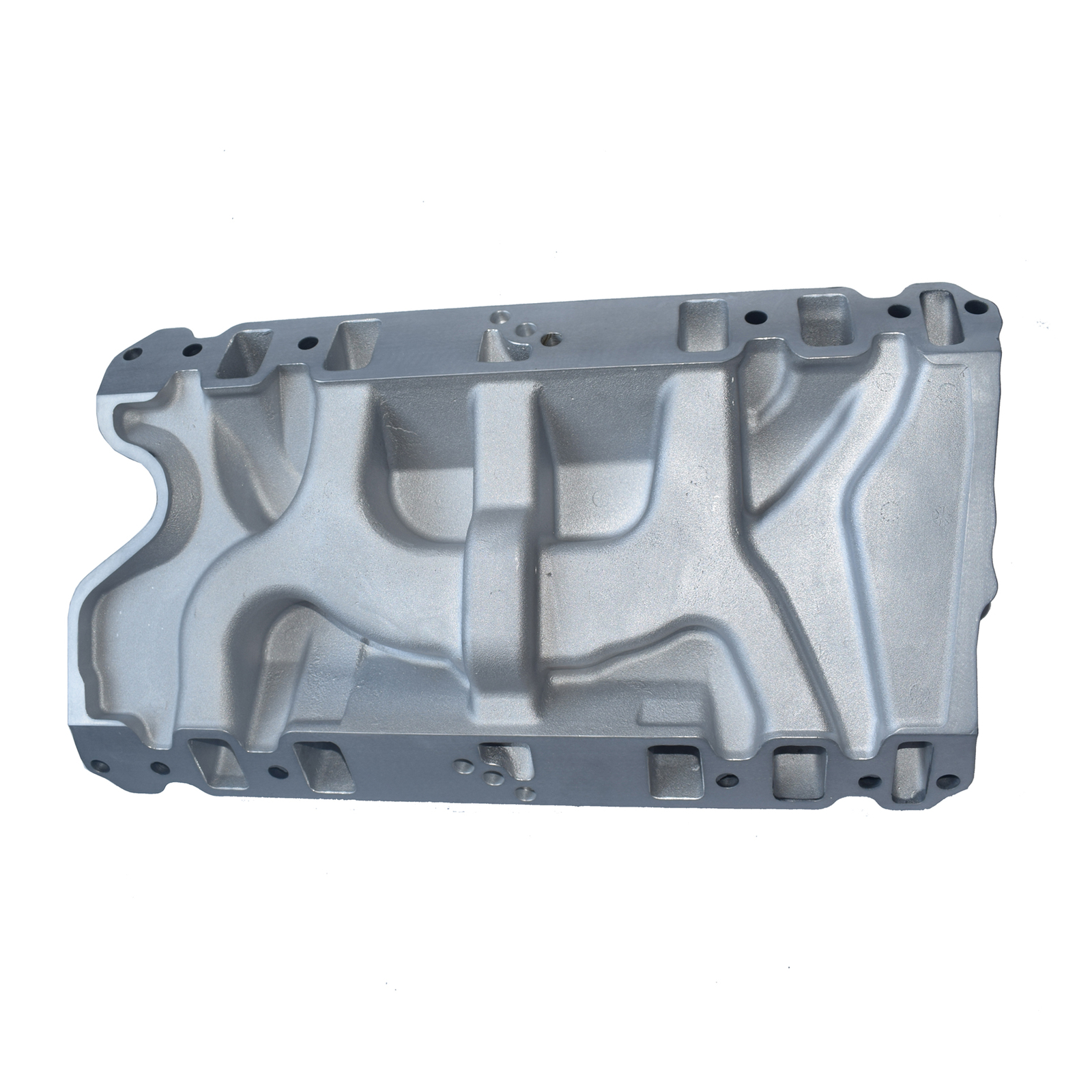

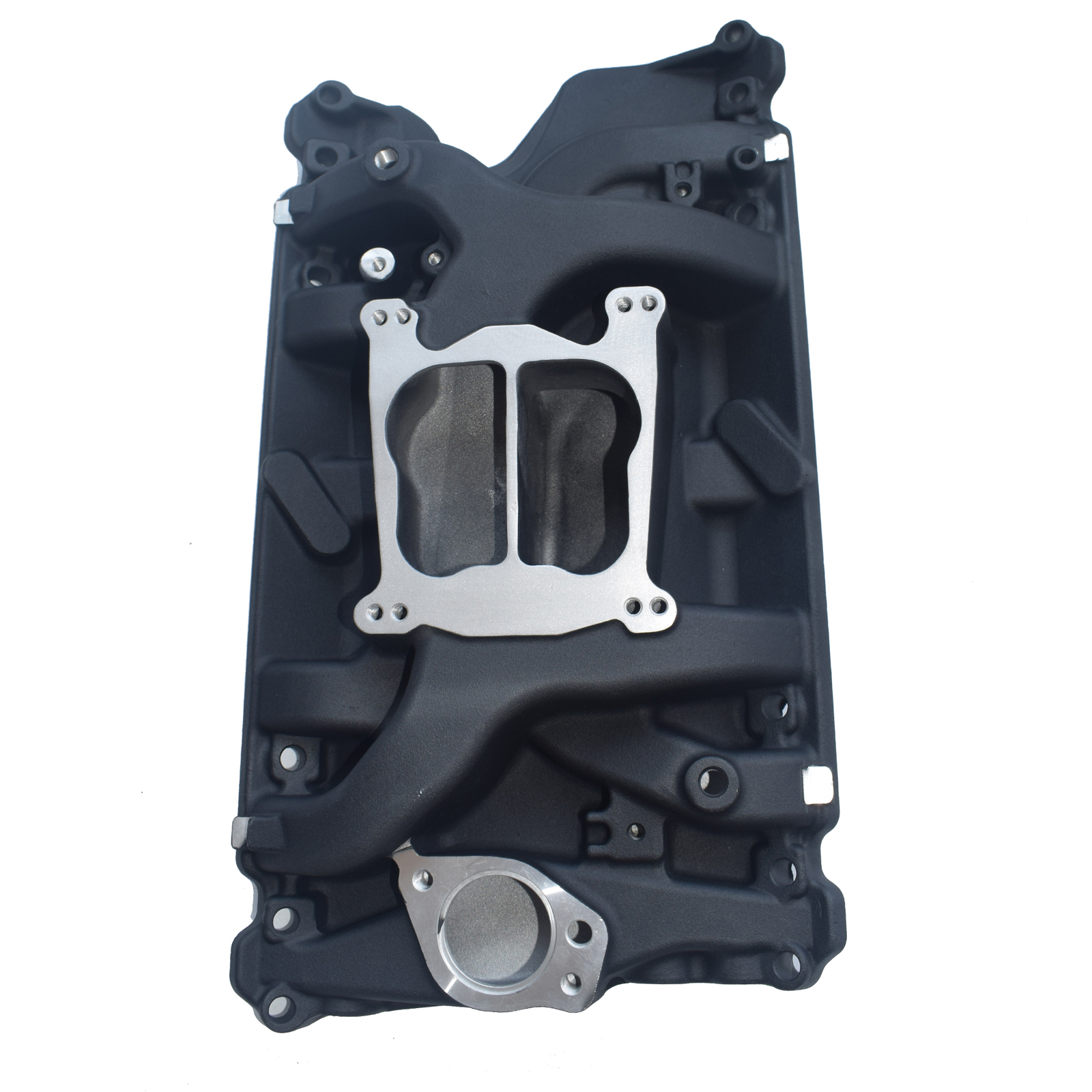

This Intake Manifold Is A Dual-Plane Design That Is Tuned For Excellent Throttle Response From Idle To 5500 RPM,Aiding In Fuel Vaporisation And Increasing Volumetric Effiiciency. Designed To Fit Both Early And Late Cylinder Head Bolt Hole Patterns,Pilot Holes Have Been Drilled On Each Side Of The Exhaust Crossover. Accepts Both Square-Bore And Spread-Bore Carbs. Does Not Have A Provision For External Heat Crossover. Black Powdercoated Cast-Aluminium Finishes.

Part Number: ED2194, 2194

Rev range: Idle to 5500 rpm

Product Type: Dual Plane



Fitment

Fit For Street 253-304-308 c.i.d, Holden Commodore V8 Engines

Fit For Red / Blue / Black Engines

Note: Not Fit For EFI Heads

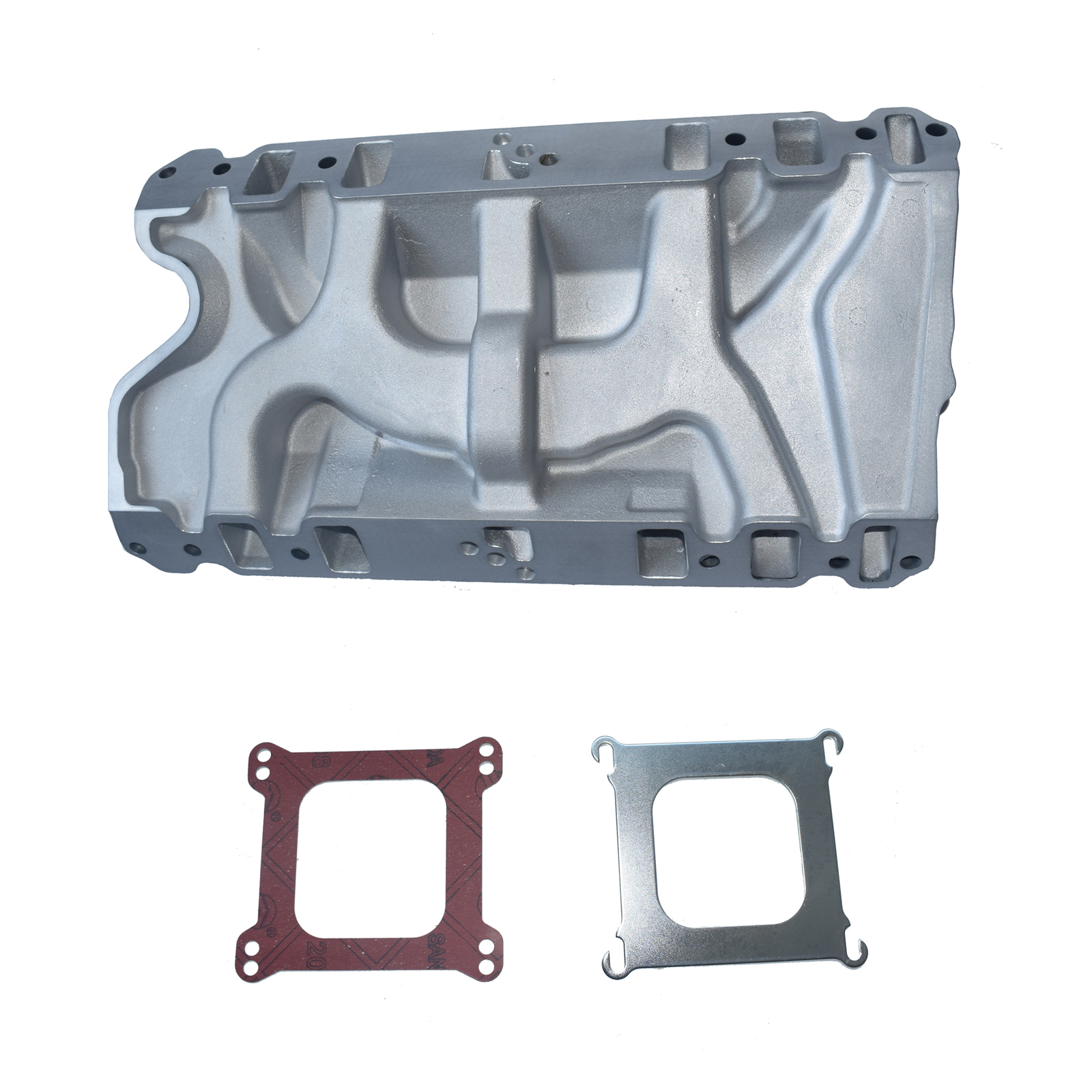

Package

1 x Engine Intake Manifold

2 x Gaskets

4 x Studs

SKU EIM-HLN002
Brand MACHTER AUTOPARTS
Shipping Weight 8.3000kg
Shipping Width 0.300m
Shipping Height 0.155m
Shipping Length 0.530m
Shipping Cubic 0.024645000m3
