Specification

ABS: Yes

Bolt Circle Diameter (MM): 100

Bolt Circle Diameter (IN): 3.934

Brake Pilot Diameter (MM): 57.9

Flange Bolt Hole Quantity: 4

Flange Diameter (MM): 124

Flange Offset (MM): 65.5

Hub Pilot Diameter (MM): 84

Spline Quantity: 25

Wheel Pilot Diameter (MM): 55.9

Wheel Stud Quantity: 5



Fitment

Fit For Suzuki S-Cross JY YAA2S 2014-2024 (Front Wheel Drive)

Fit For Suzuki Swift Sport AZ ZC33S 01/2018-2024 With Built In Studs

Fit For Suzuki SX4 RW420 2007-2014 For FWD Only, With Built In Studs

Fit For Suzuki Vitara LY DA1S YD21S 2015-2024 (Front Wheel Drive)

Note: 2 Types Wheel Bearing Hub For These Models. Please Confirm Before Purchasing.



Package

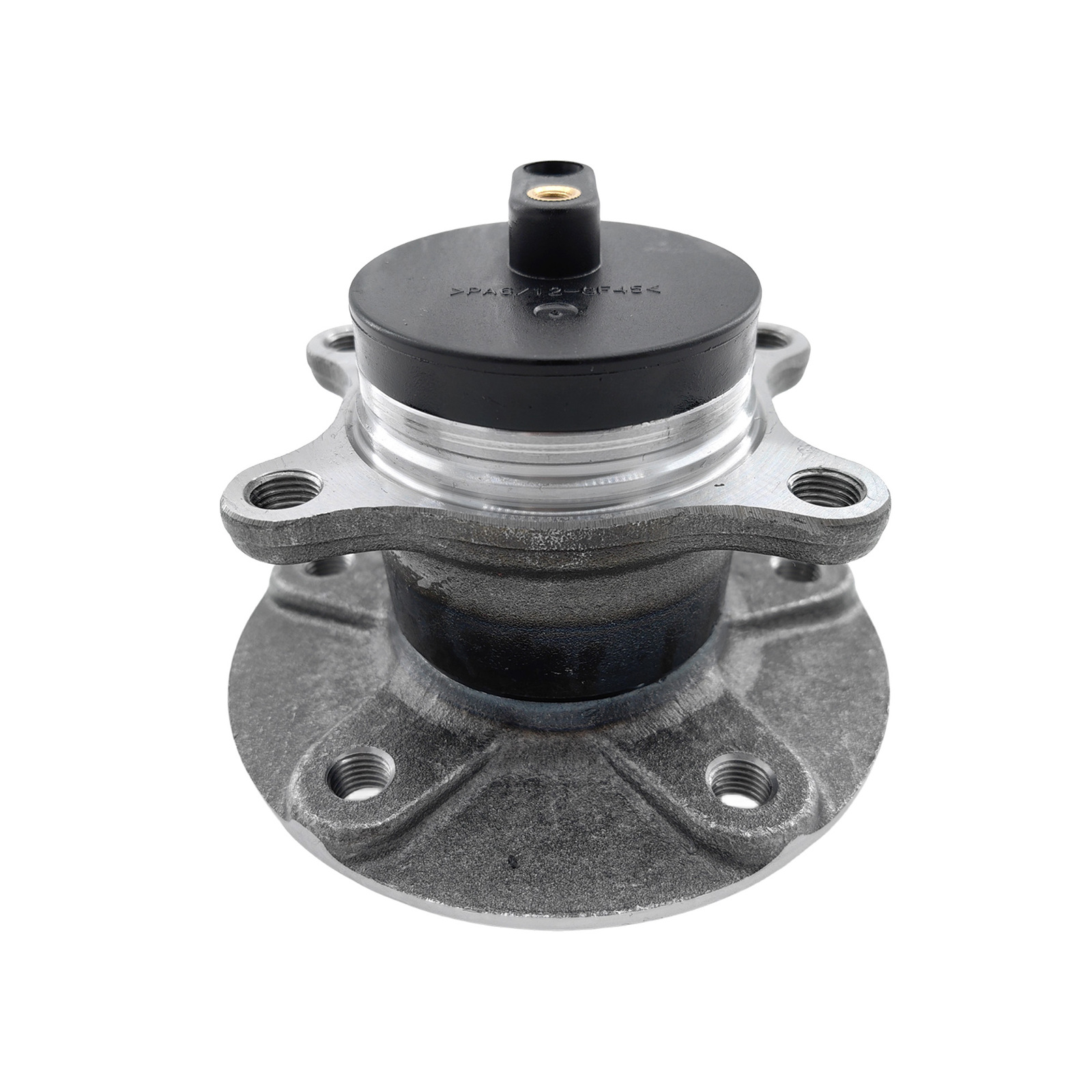

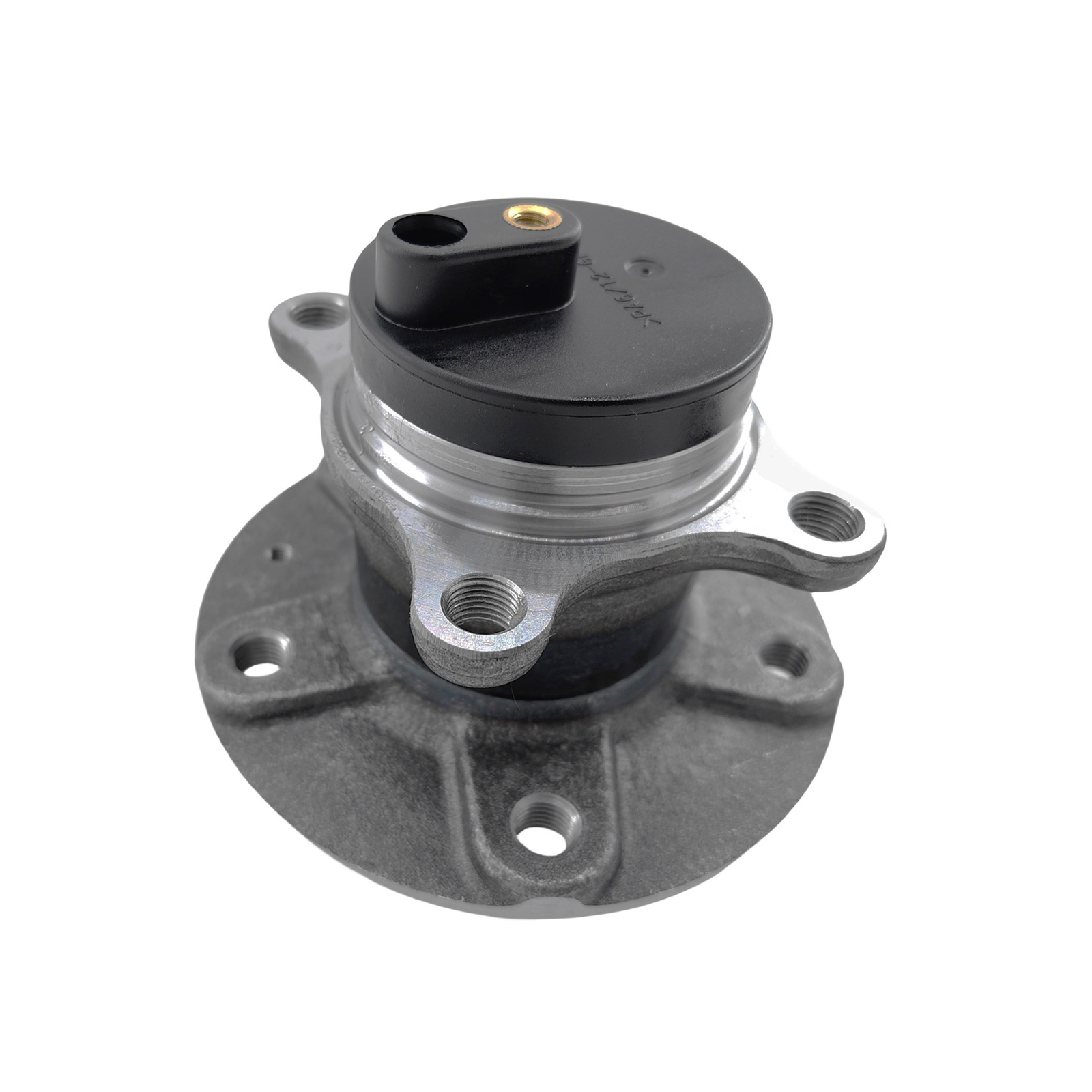

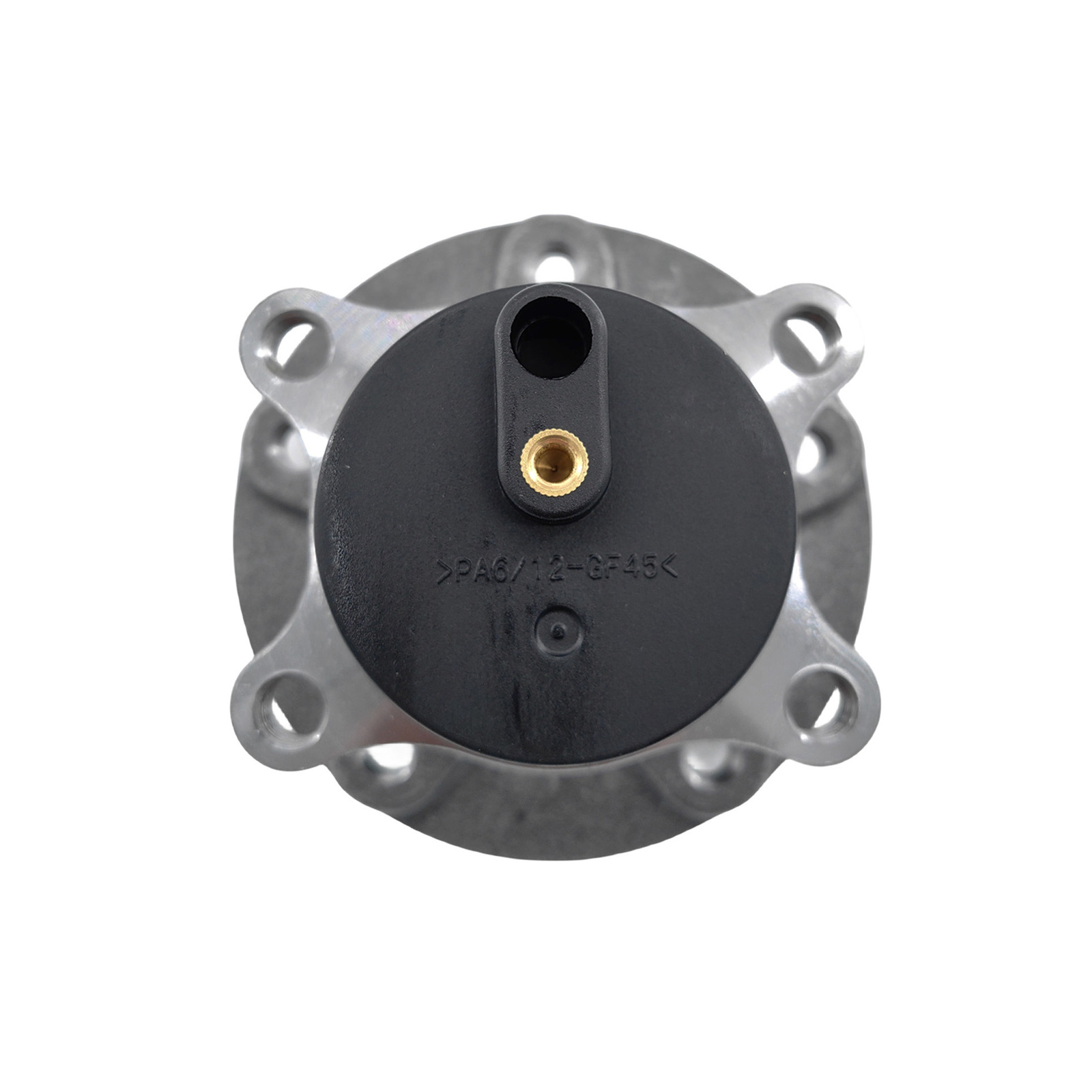

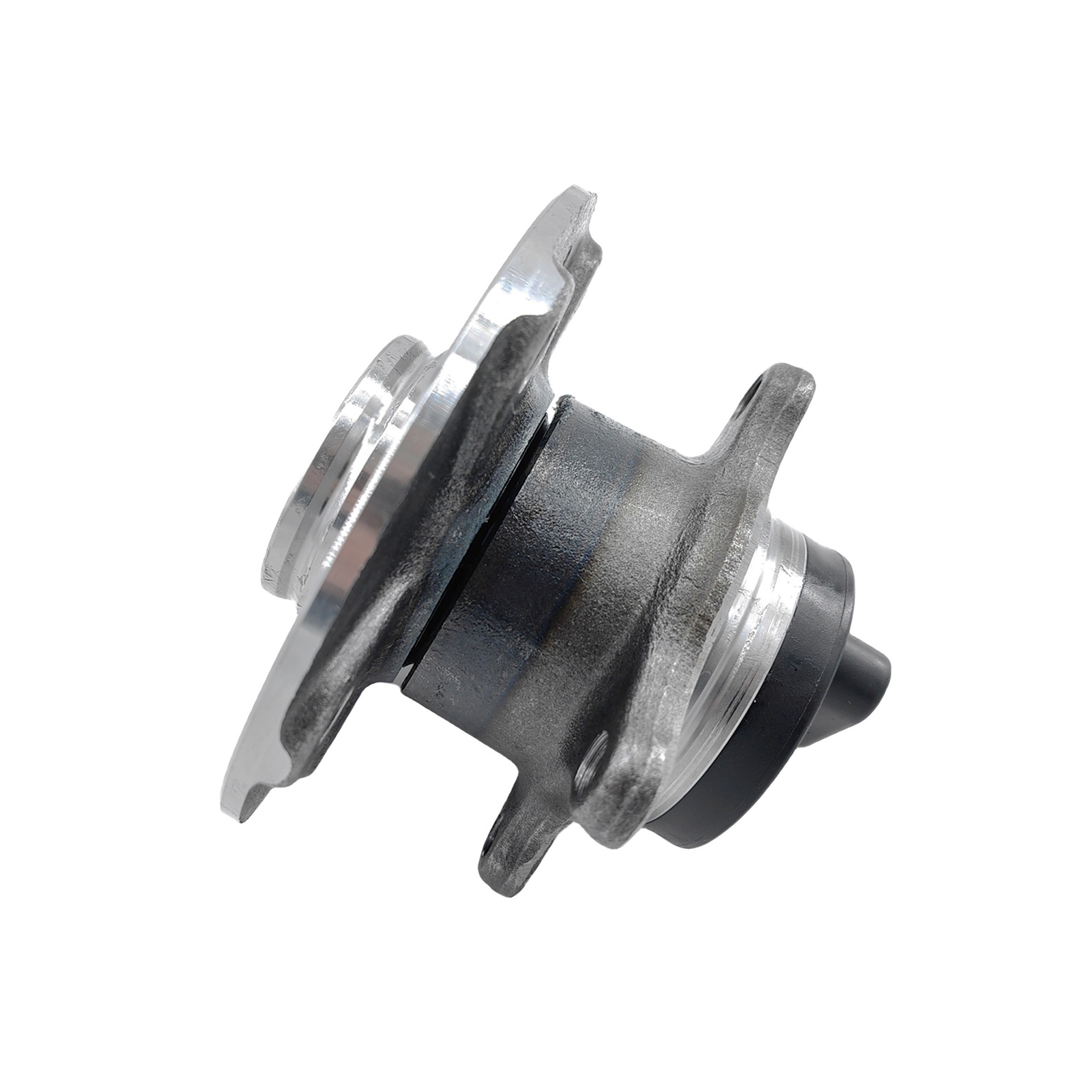

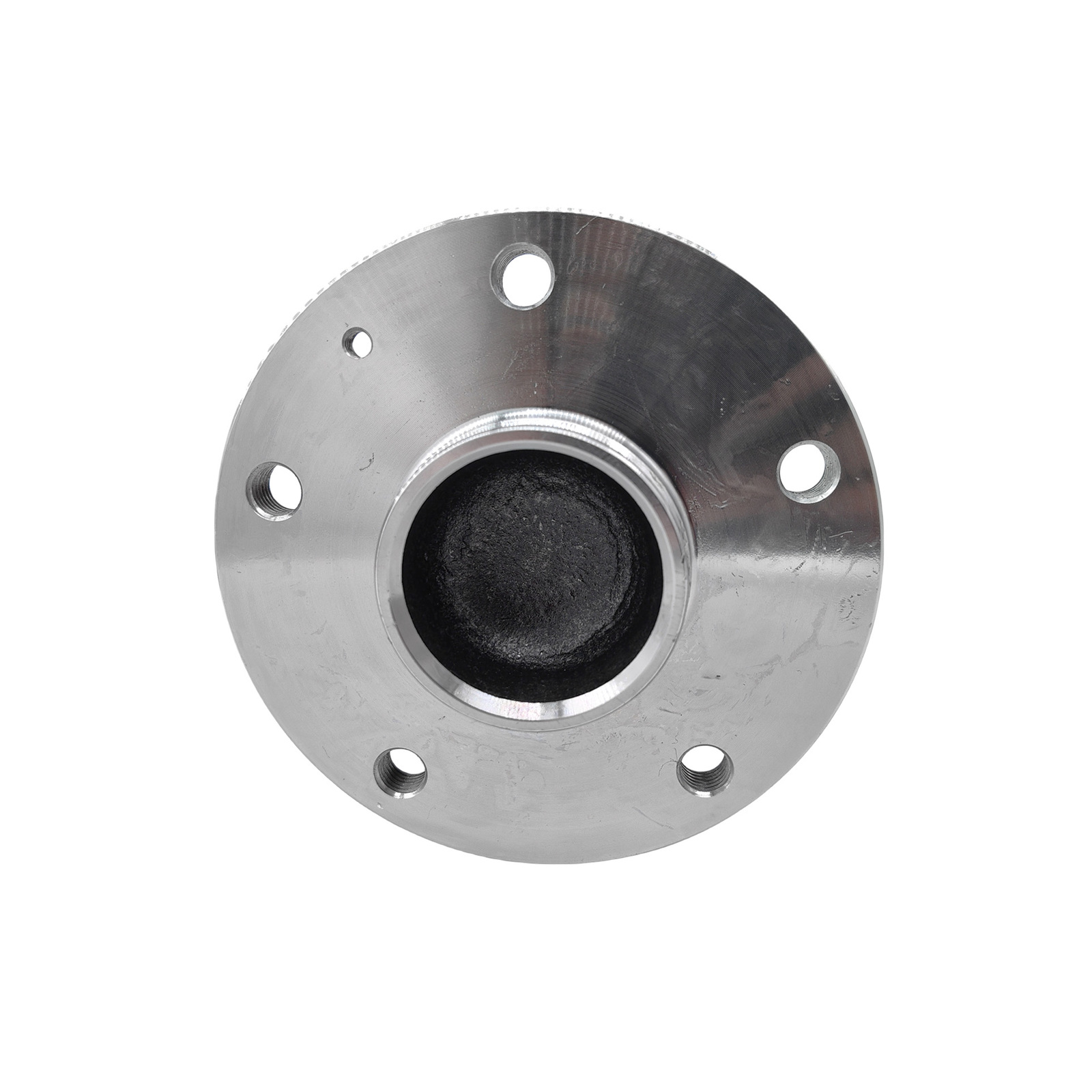

1 x Rear Wheel Bearing Hub Assembly

SKU WH-SZK004-1PCS
Brand POWEROY
Shipping Weight 3.1000kg
Shipping Width 0.160m
Shipping Height 0.145m
Shipping Length 0.165m
Shipping Cubic 0.003828000m3
