Specifications

Volts 12V

Kilowatts (kw) 1.4

Overall Length (mm) 205

Mounting Hole (mm) M7x1.25

Mount Hole Centres (mm) 102

Flange Diameter (mm) 75

Nose Cone Length (mm) 43

Pinion At Rest (mm) 6

Field Housing Diameter (mm) 70

Teeth 8TH

Rotation CW

Pinion Diameter (mm) 28



Fitment

Fit For Suzuki Grand Vitara SQ416 (FT) 1.6L 4cyl Petrol - G16B 01/1999 - 12/2005

Fit For Suzuki Grand Vitara SQ420 (FT) 2.0L 4cyl Petrol - J20A 01/1998 - 12/2005

Fit For Suzuki Grand Vitara SQ625 (FT) 2.5L V6 Petrol - H25A 01/1998 - 12/2005

Fit For Suzuki Grand Vitara JB420 (JT) 2.0L 4cyl Petrol - J20A 01/2005 - 12/2008

Fit For Suzuki Grand Vitara JB627 (JT) 2.7L V6 Petrol - H27A 01/2005 - 12/2008

Fit For Suzuki Vitara SE416 (ET) 1.6L 4cyl Petrol - G16B 01/1994 - 12/1998

Fit For Suzuki Vitara SV620 (ET) 2.0L V6 Petrol - H20A 01/1995 - 12/1998



Package

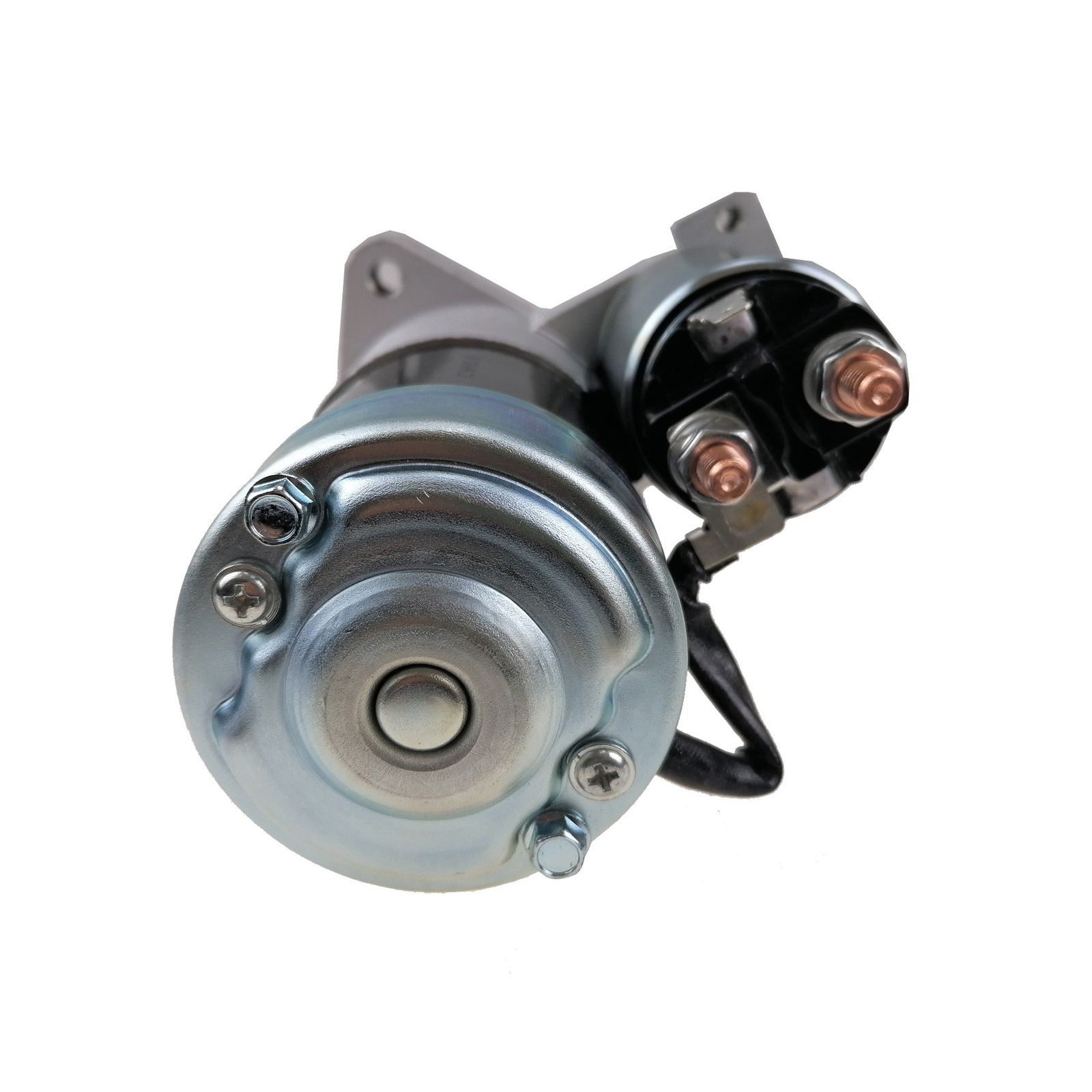

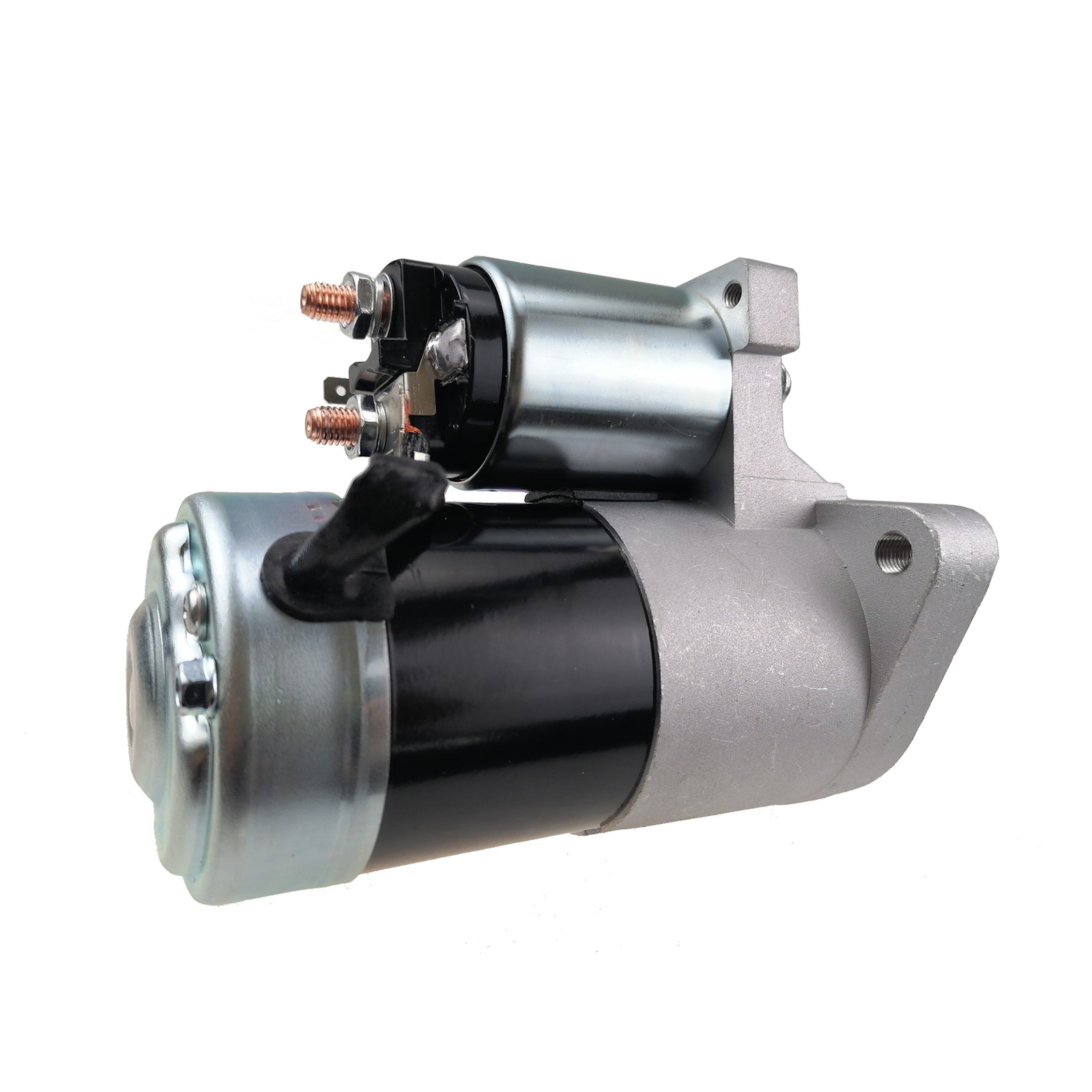

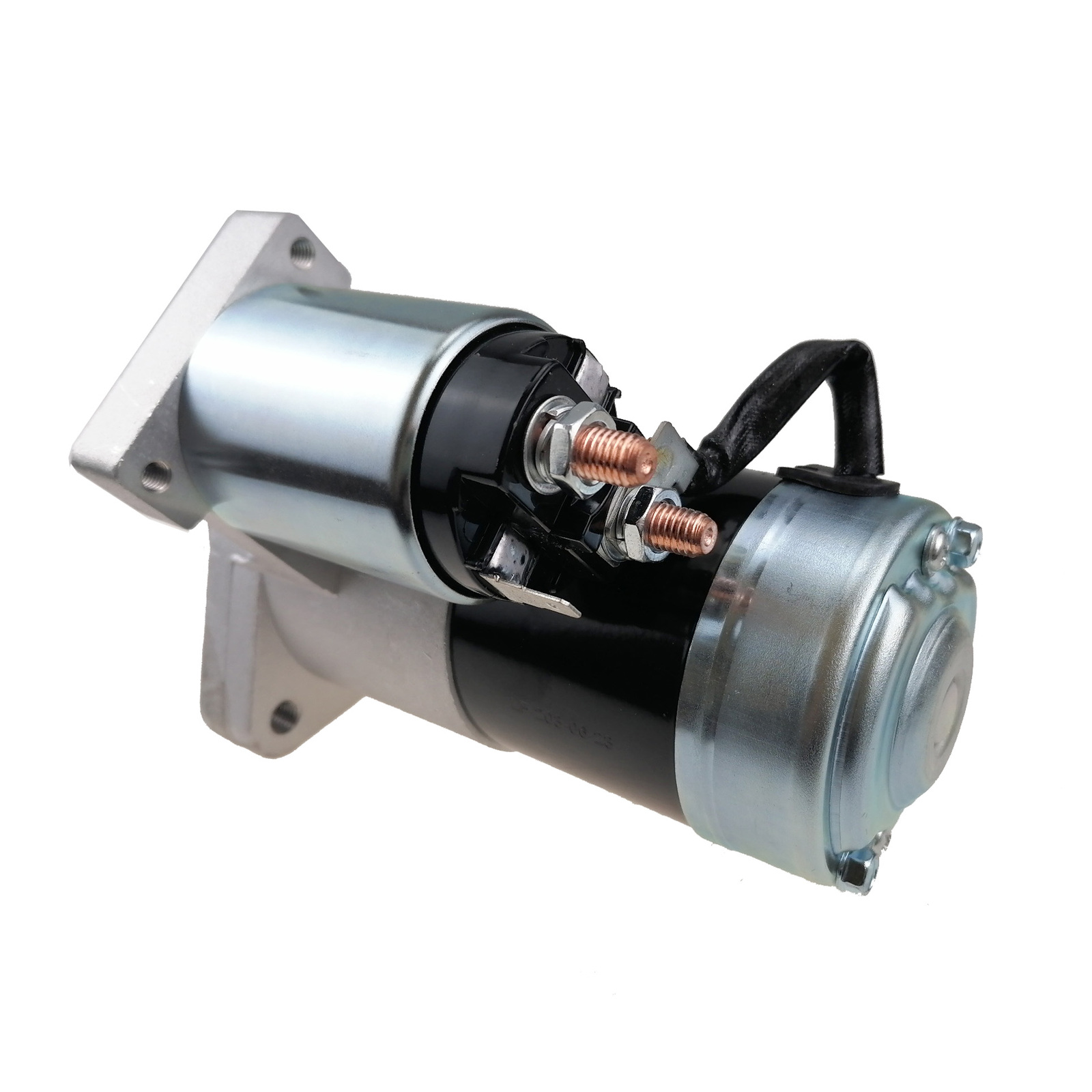

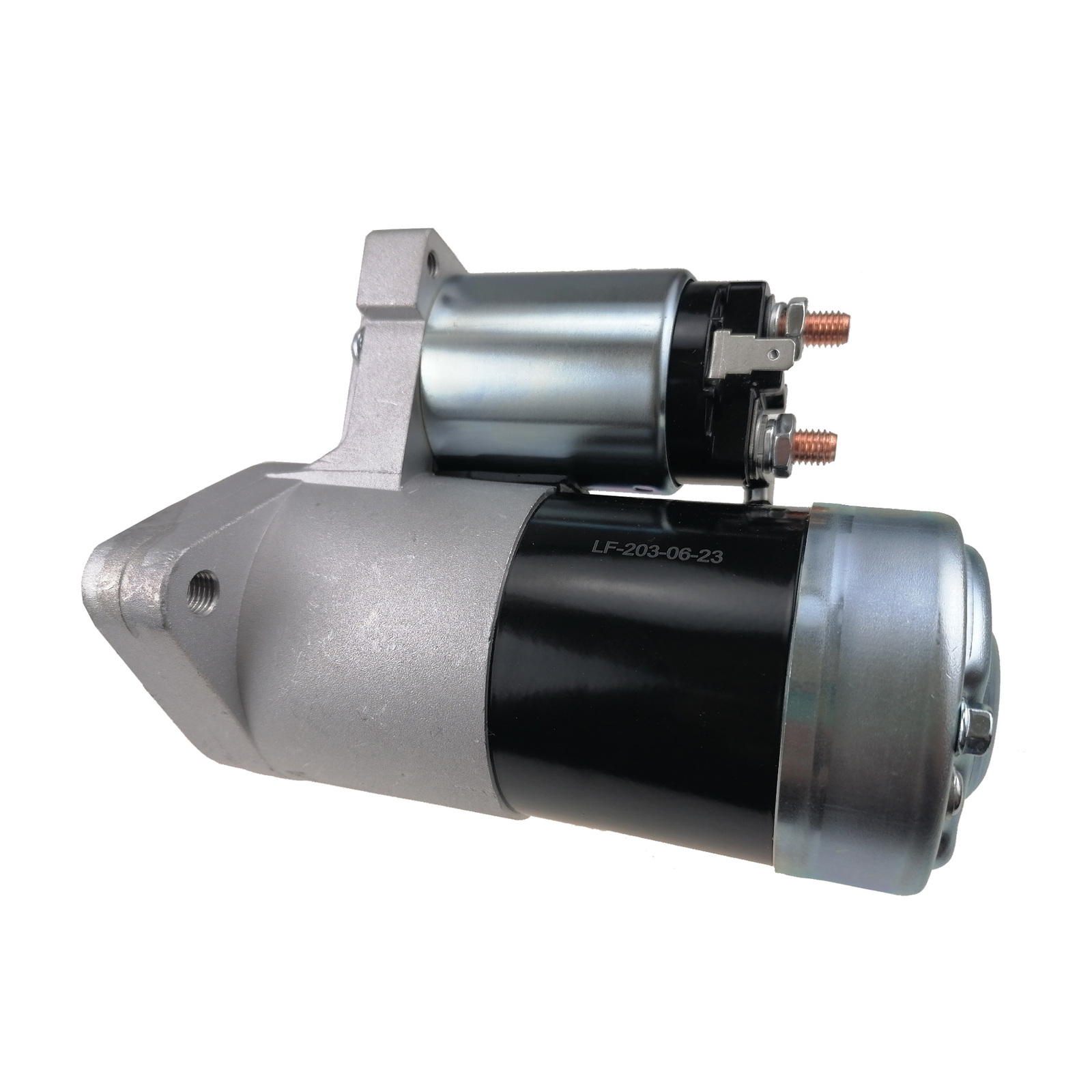

1 x Starter Motor

SKU SMOTOR-SU002
Brand MACHTER AUTOPARTS
Shipping Weight 3.4500kg
Shipping Width 0.160m
Shipping Height 0.120m
Shipping Length 0.285m
Shipping Cubic 0.005472000m3
