Specifications

Unit Type: Starter
Voltage: 12
Rotation: CCW
Teeth/Spline : 10TH
Starter Type: PMDD

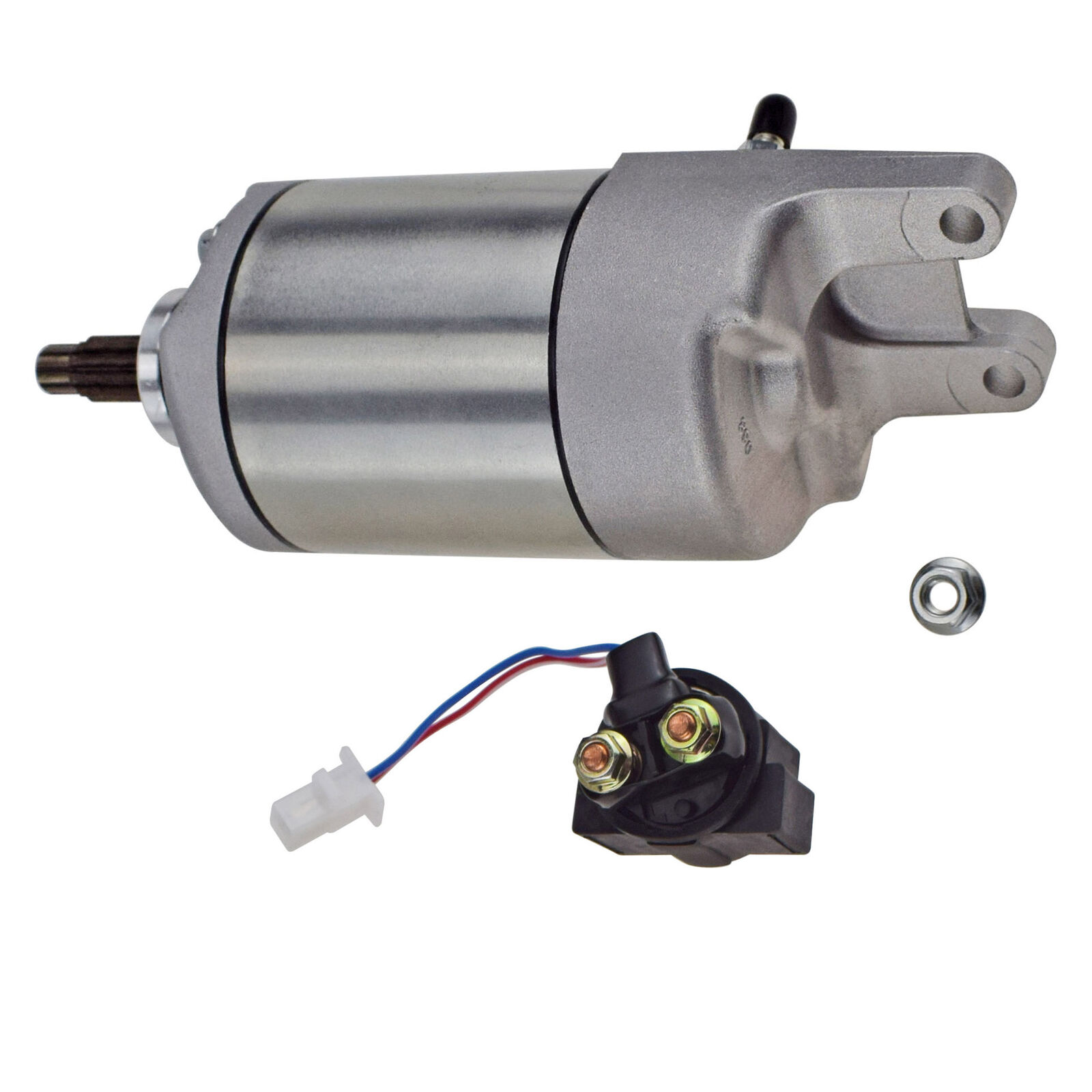

Starter Motor With Relay Solenoid



Replaces Part Number

For Honda :  31200-HA0-773, 31200-HA0-774, 31200-HA6-306, 31200-HA6-316,
31200-HA6-773, 31200-HA6-774, 31200-HC4-003, 31200-HC4-013, 31200-HC4-023, 31200-HC4-033
For Arrowhead : SMU0028 SMU0221
For J & N : 410-54001
For Lester : 18337
For Tucker Rocky : 49-5700, 495700
For Barsanco    620-001
For Cargo   111921
For Denso    128000-4400 1280004400
For Dixie    MS-814
For Dixie New    242-06103
For Dubois    918337
For EMS  HA-102N HA102N HA-102B HA102B HA-102A HA102A HA-102 HA102
For Hi Levle    STH0028
For Mes Motorcycle &Marine   ME3213
For MinnparI    57-2387
For PIC    190-529B, 191-119, 191-119A
For RCP    ST-18337
For Stockers Starters  HA-102, HA-102A, HA-102B
For WAI    2-2181-MT
for Wilson 91-26-2005, 9126-2005, 91-262005, 91262005, 91-26-2026, 91-26-2026N 9126-2026N 91-262026N 91262026N
For Wilson Small Eengine    71-26-18337 7126-18337 71-2618337 712618337
For Wood Auto   STR70029, STR7540
For RSM RS41181



Fitment

For Honda All-Terrain Vehicle (ATV)

For Honda ATC250ES Big Red  250 1987-1988  246cc
For Honda ATC250SX  250 1987   246cc
For Honda TRX250  Fourtrax  250 1987   246cc
For Honda TRX300  FourTrax 300 1988-2000   281cc
For Honda TRX300FW  FourTrax 300 4x4  1988 -2000  281cc



Package

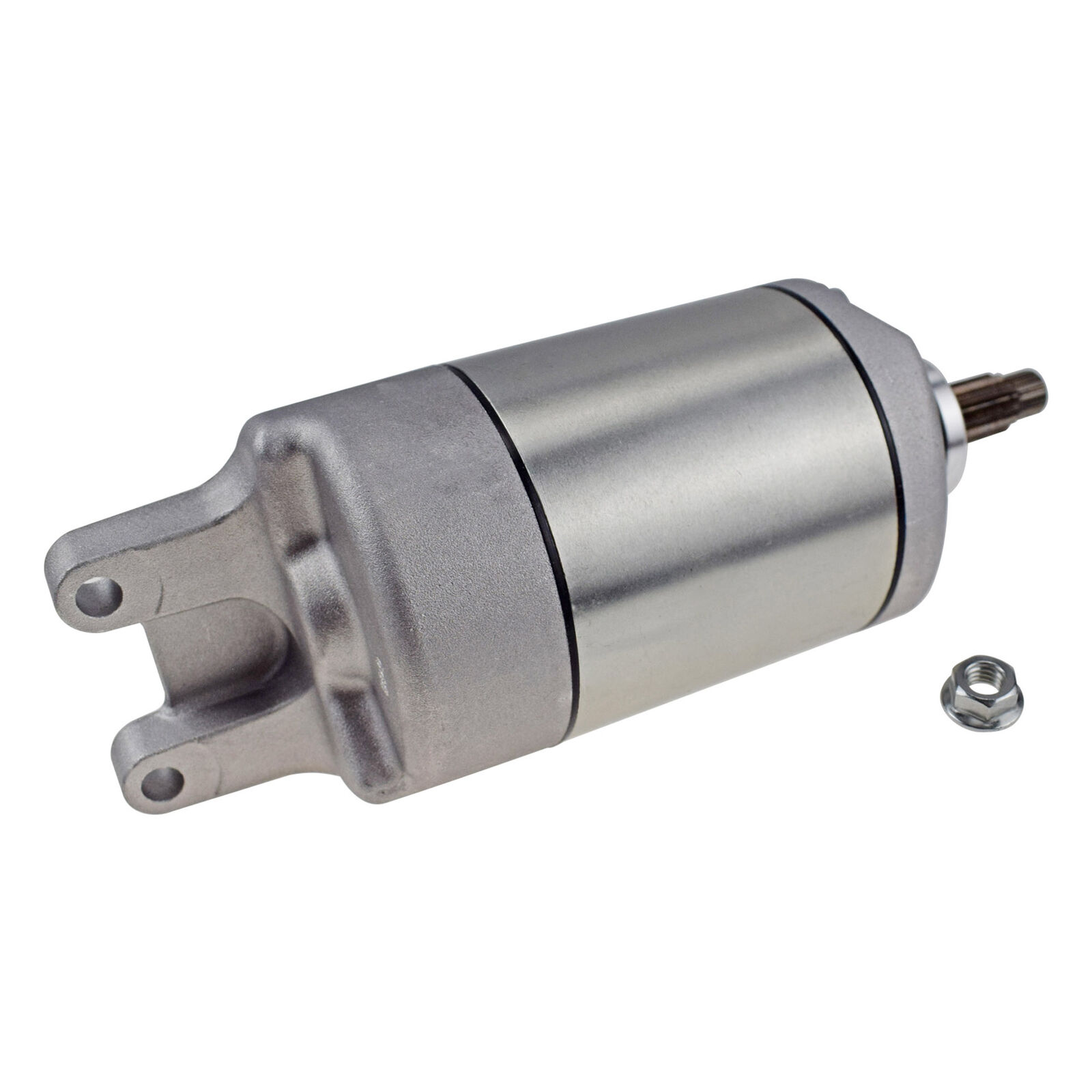

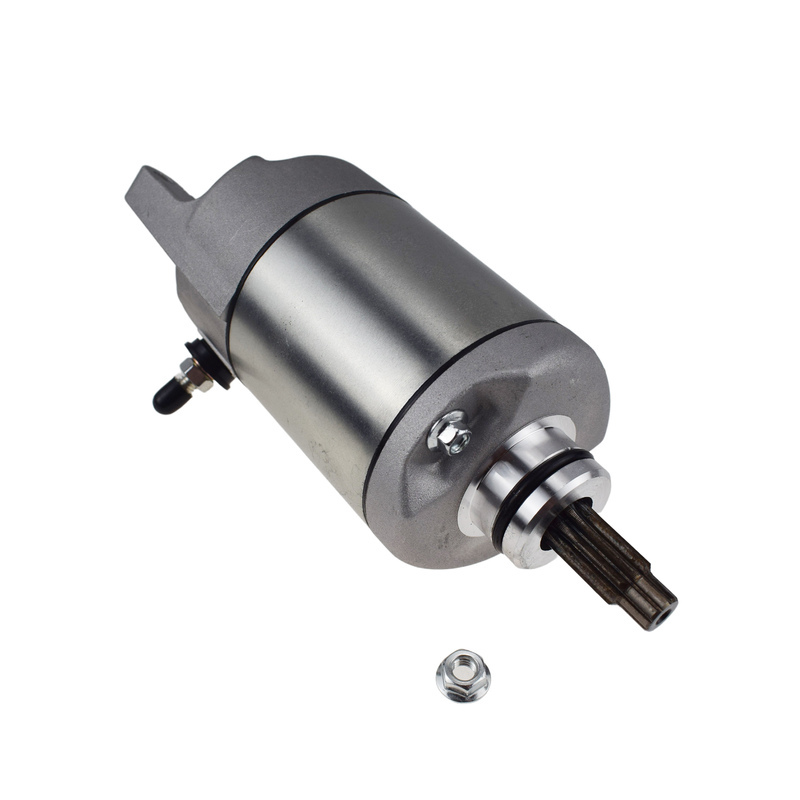

1 x Starter Motor

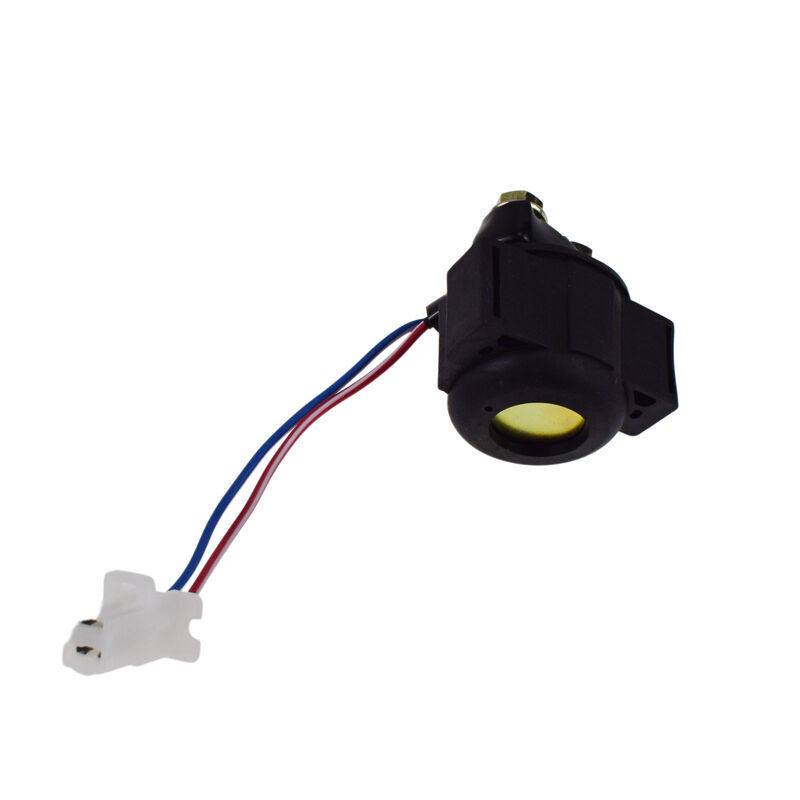

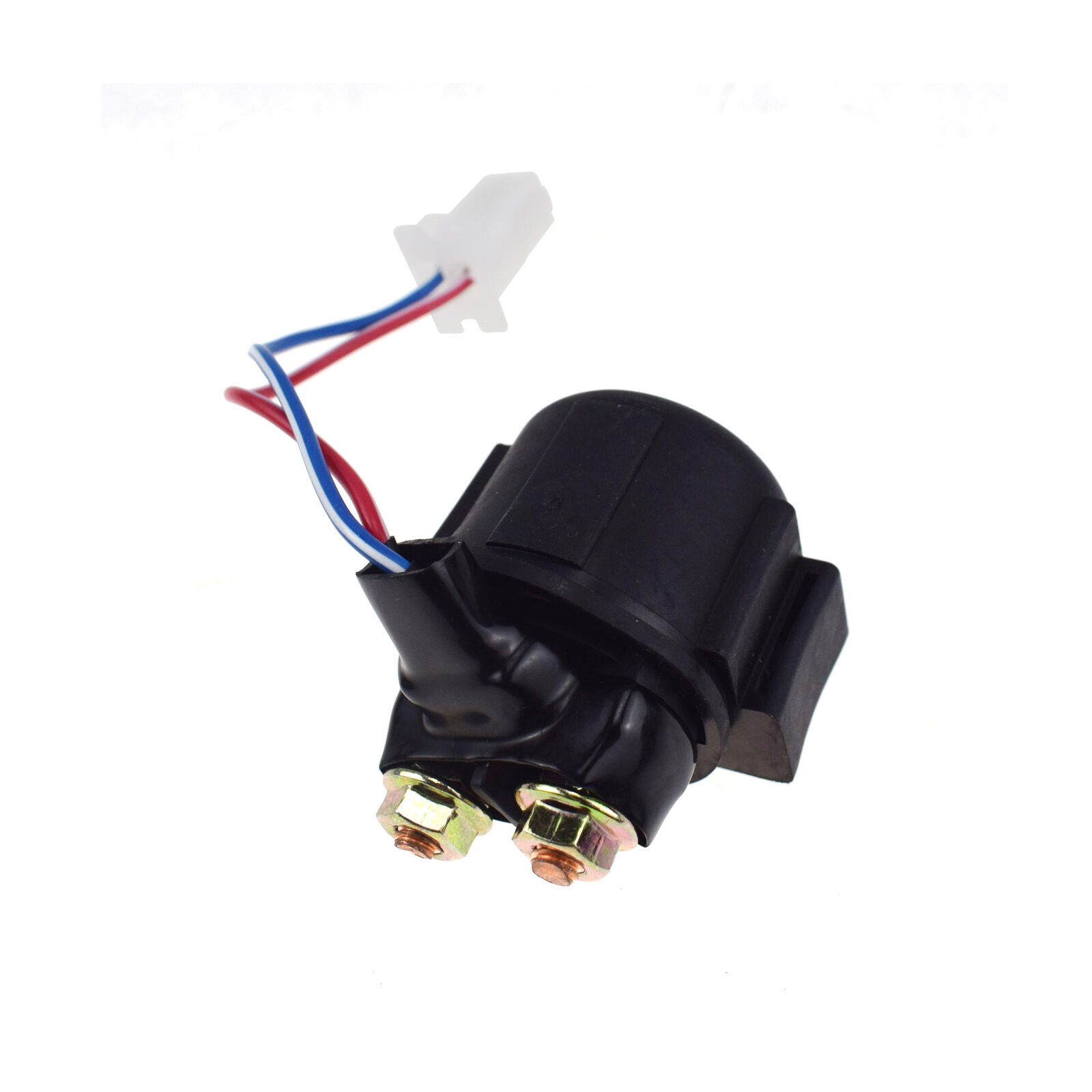

1 x Relay

SKU SMOTOR-HATV001
Brand POWEROY
Shipping Weight 2.5000kg
Shipping Width 0.100m
Shipping Height 0.080m
Shipping Length 0.190m
Shipping Cubic 0.001520000m3
