Specification

Volts：12

Kilowatts (kw)：0.6

Overall Length (mm)：200

Mounting Hole (mm)：8

Mount Hole Centres (mm)：68

Flange Diameter (mm)：63

Nose Cone Length (mm)：44

Pinion At Rest (mm)：8

Field Housing Diameter (mm)：76

Teeth：10TH

Rotation：CCW

Pinion Diameter (mm)：32

Fitment

Fit For John Deere Lawn Tractor GT225 0.4L 1Cyl Petrol CV15S 12V 10TH 0.6KW CCW   01/1999-12/2003

Fit For John Deere Lawn Tractor LX255 0.4L 1Cyl Petrol CV15S 12V 10TH 0.6KW CCW   01/1999-12/2001

Fit For John Deere Lawn Tractor STX30 0.4L 1Cyl Petrol CF12.5 1216S 12V 10TH 0.6KW  CCW 01/1988-12/1993

Fit For John Deere Lawn Tractor STX46 0.4L 1Cyl Petrol CV15S 12V 10TH 0.6KW CCW  01/1995-ON

Fit For Kohler Engine 0.62L 2Cyl Petrol CH18 12V 10TH 0.6KW CCW 01/1993-ON

Fit For Kohler Command 0.62L V2 Petrol CH20/2212V 10TH 0.6KW CCW 01/1998-ON

Fit For Kohler Command 0.73L V2 Petrol CH25 12V 10TH 0.6KW CCW 01/1993-ON

Fit For Kohler Command Pro 0.73L 4V Petrol CH26 12V 10TH 0.6KW CCW 01/1993-ON

Fit For Kohler Command 0.73L 4V Petrol CH730/740 12V 10TH 0.6KW CCW 01/1993-ON

Fit For Kubota Ride On Mower ZG20-48 0.62L V2 Petrol CH20/22 12V 10TH 0.6KW  CCW  01/2004-ON

Fit For Kubota Ride On Mower ZG23-54 0.67L V2 Petrol CH23 12V 10TH 0.6KW CCW

01/2004-ON

Fit For New Holland Skid Steer L120 0.62L 2Cyl Petrol CH18 12V 10TH 0.6KW CCW   01/2007-12/2011

Fit For Toro Rake-O-Vac 0.62L V2 Petrol CH20/22 12V 10TH 0.6KW CCW 01/1996-ON

Fit For Toro Dingo 222 0.62L V2 Petrol CH20/22 12V 10TH 0.6KW CCW 01/1999-ON

Fit For Toro Dingo 322 0.62L V2 Petrol CH20/22 12V 10TH 0.6KW CCW 01/1999-ON

Fit For Toro Wheelhorse 518XI 0.62L 2Cyl Petrol CH18 12V 10TH 0.6KW CCW 01/1998-ON

Fit For Toro Wheelhorse 520XI 0.62L V2 Petrol CH20/22 12V 10TH 0.6KW CCW 01/1998-ON

Fit For Toro Wheelhorse 522XI 0.62L V2 Petrol CH20/22 12V 10TH 0.6KW CCW 01/1998-ON

Fit For Toro Workman 3000 0.62L V2 Petrol CH20/22 12V 10TH 0.6KW CCW 01/1994-ON

Fit For Toro Workman 3100/3120 0.62L V2 Petrol CH20/22 12V 10TH 0.6KW CCW          01/1994-ON

Fit For Vermeer Brush Chipper BC600XL 0.73L V2 Petrol CH26 12V 10TH 0.6KW CCW  01/2010-ON

Fit For Vermeer Stump Cutter SC252 0.73L V2 Petrol CH25 12V 10TH 0.6KW CCW     01/1997-ON

Fit For Vermeer Stump Cutter SC30TX 0.73L V2 Petrol CH730/740 12V 10TH 0.6KW CCW      01/2015-ON

Package

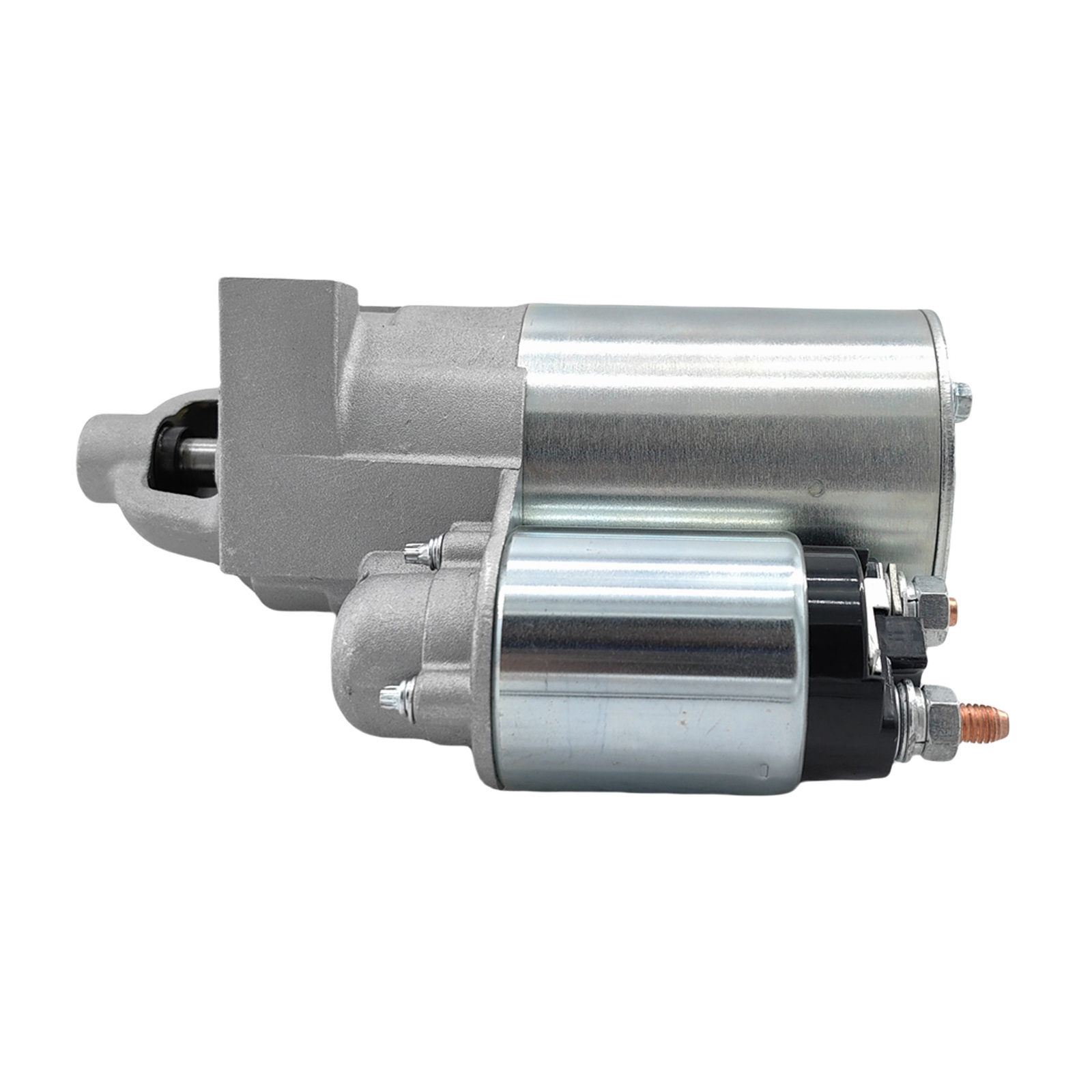

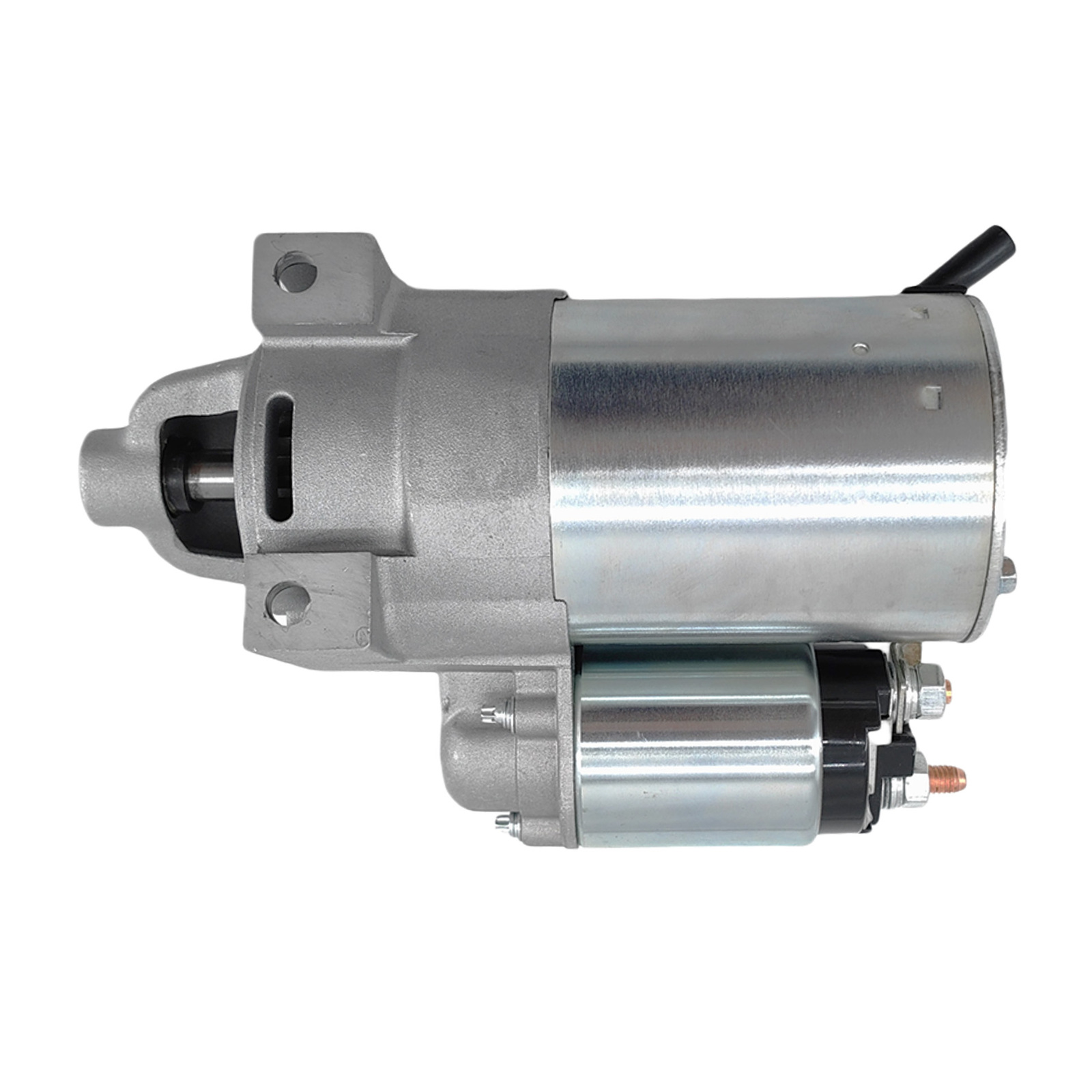

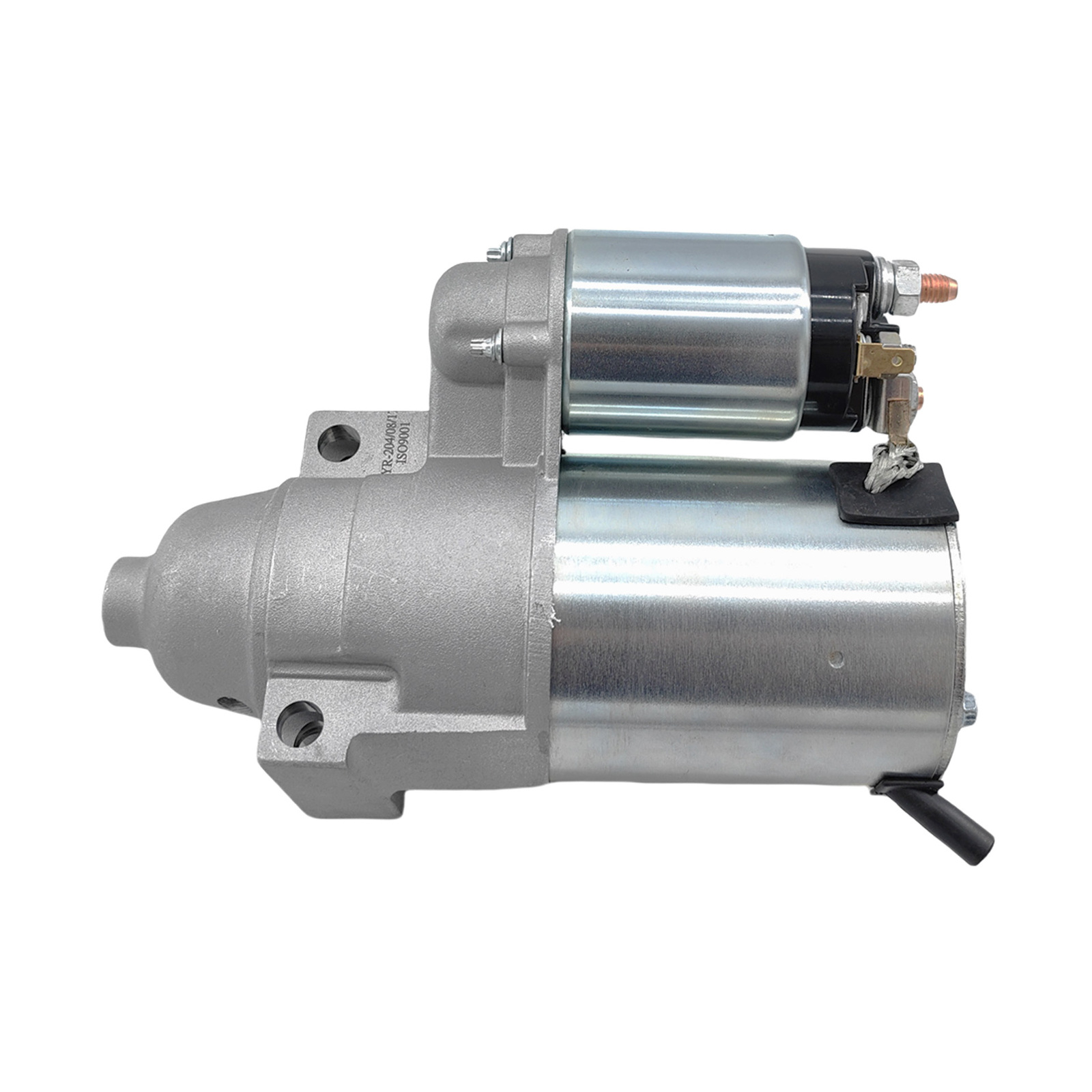

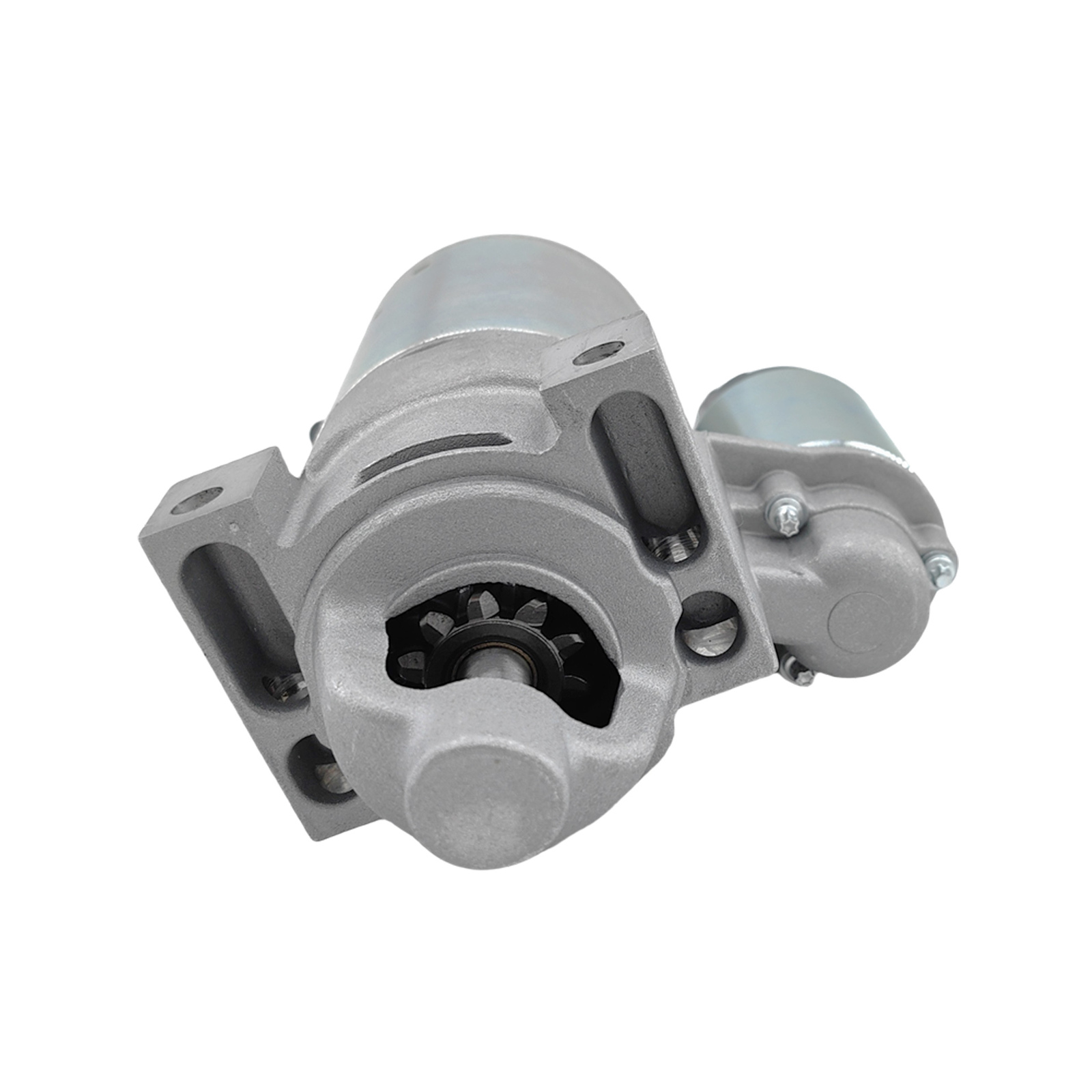

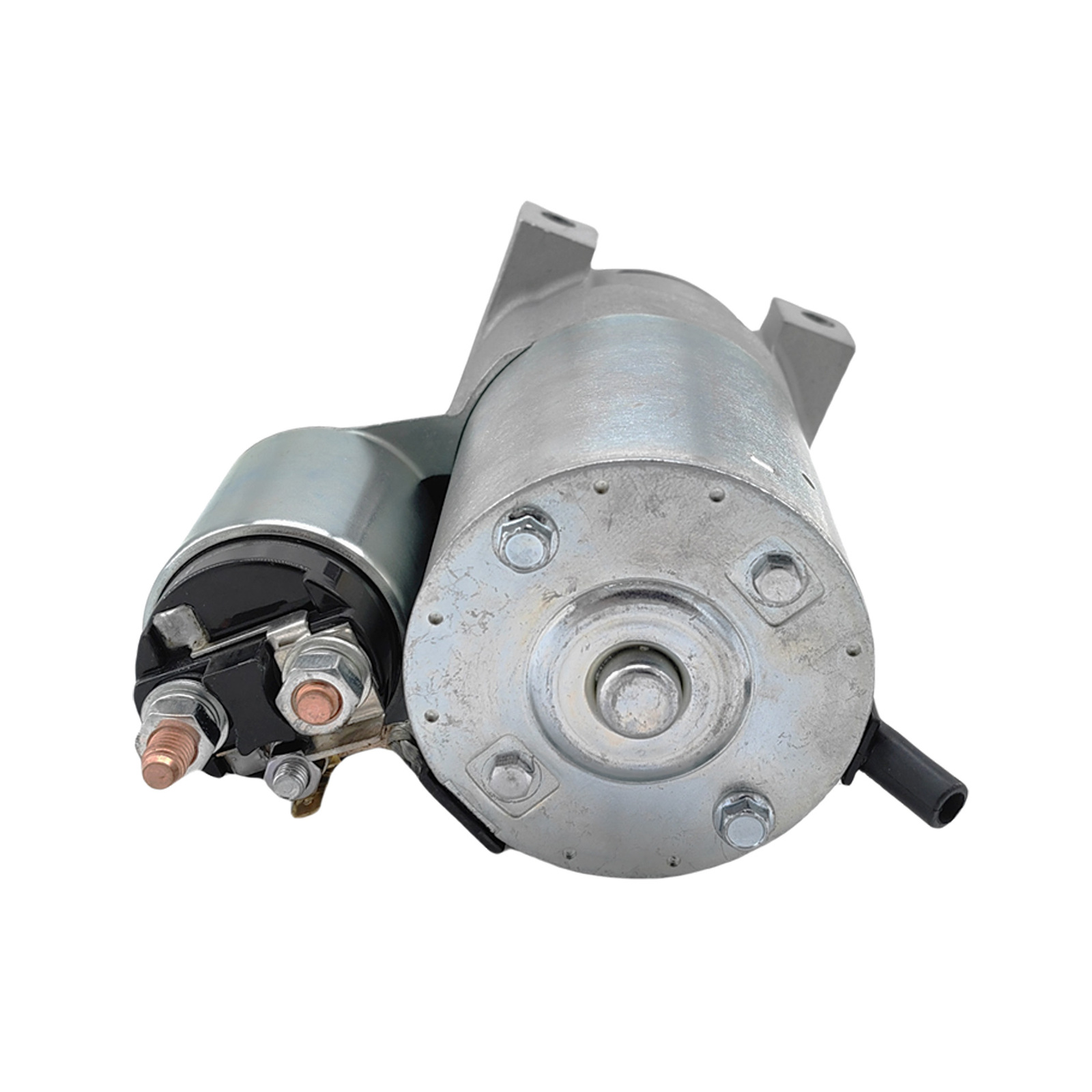

1 x Starter Motor
