Fitment

Fit For Mitsubishi (All Manual Engine)

For Mitsubishi Triton ME, MF, MG, MH, MJ ML MN 4WD including Turbo GLX uti engine 4D56 4D56T 2.5L Diesel 86-15;

For Mitsubishi Pajero NA, NB, NC, ND, NE, NF, NG, NH engine 4D55-T 2.3L& 4D56 2.5L Diesel 83-93;

For Mitsubishi Challenger PB 2.5L 4D56 Diesel 2009-2013

For Mitsubishi Challenger PC 2.5L 4D56 Diesel 2013-2015

Express SF engine 4D56 2.5L Diesel 86-90;

Express SG engine 4D56 2.5L Diesel 90-94;

Express SH engine 4D56 2.5L Diesel 94-95;

Express SJ engine 4D56 2.5L Diesel 94-03;

L200 Express MC engine 4D55 2.3L Diesel 82-84;

L200 Express MD engine 4D55 2.3L Diesel 84-86;

L300 Express Starwagon, Delica engine 4D55 2.5L Diesel 83-96;

L300 Express Starwagon, Delica engine 4D56T 2.5L Diesel 83-96;

L300 Express Starwagon, Delica engine 4D56 2.5L Diesel 91-00;

L400 Express including Delica engine 4D68 2.5L Diesel 00-02.

Note:Two Different Types Starter For These Models.Please Check Your Original One Before Purchasing.

Specifications

Volts：12V
Kilowatts：2.2 kw
Overall Length：240mm
Mounting Hole Diameter：M10x1.25
Mount Hole Centre to Centre：105mm
Flange Diameter：77mm
Pinion At Rest：3mm
Field Housing Diameter：80mm
Teeth：10TH
Rotation：CW
Pinion Diameter：32.5mm

Package

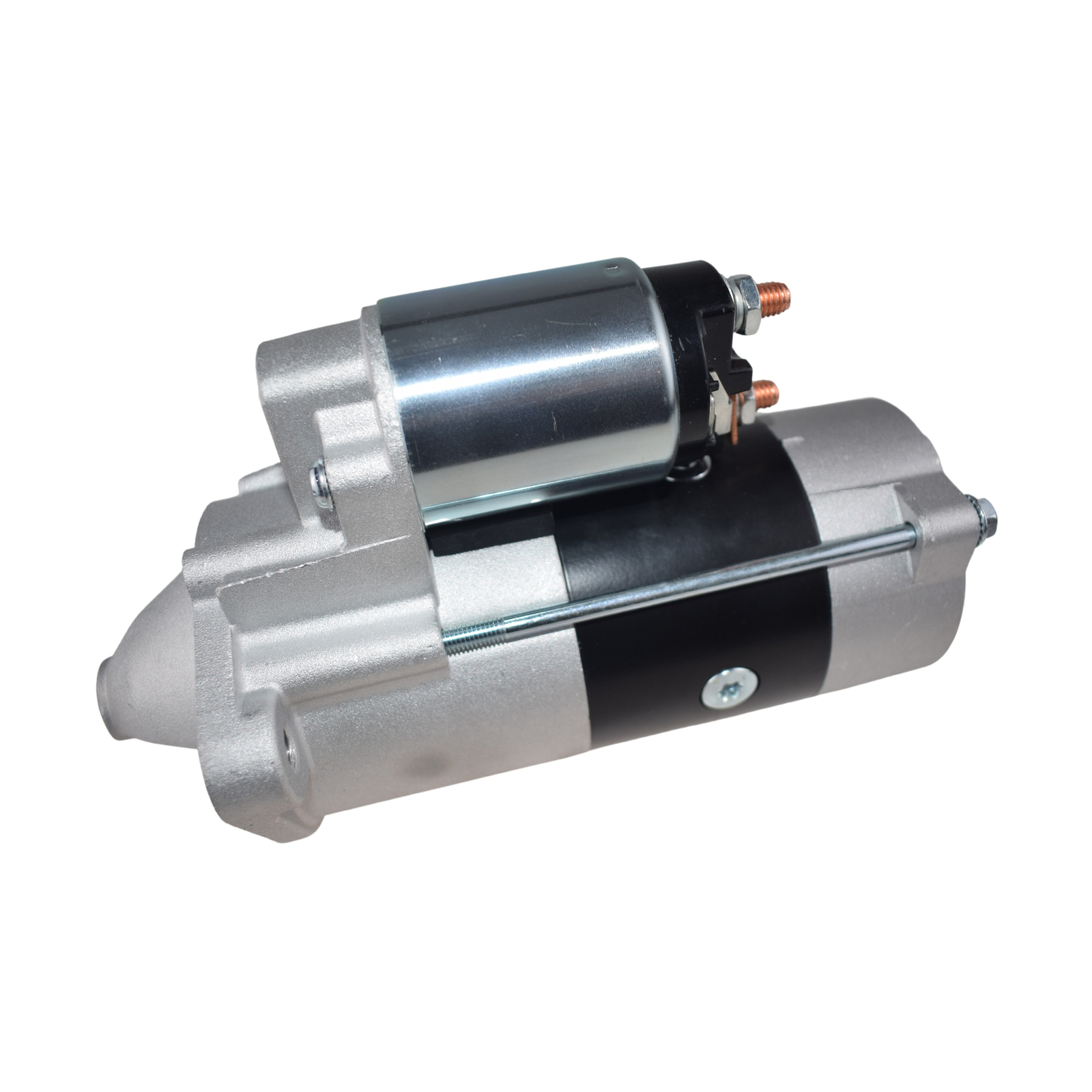

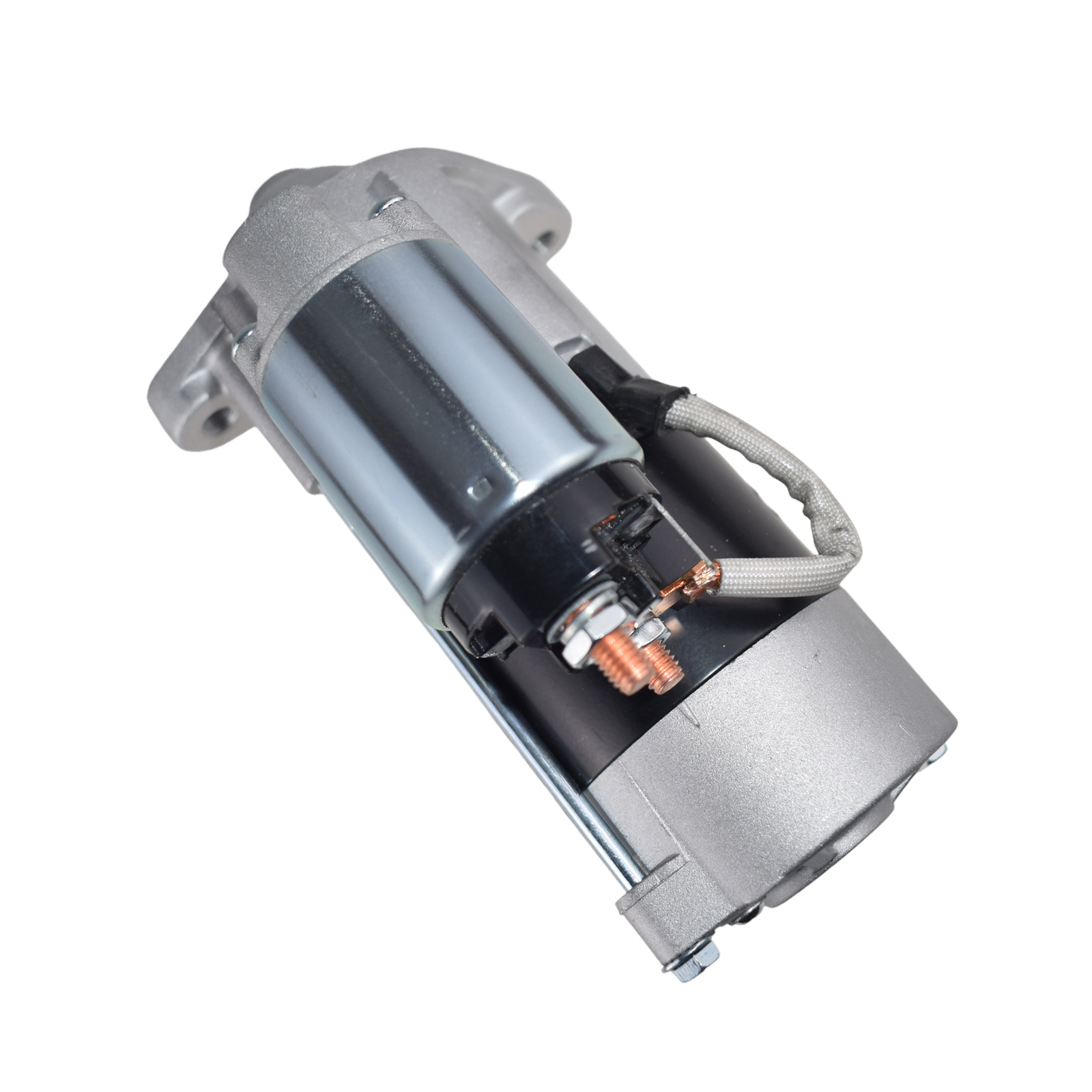

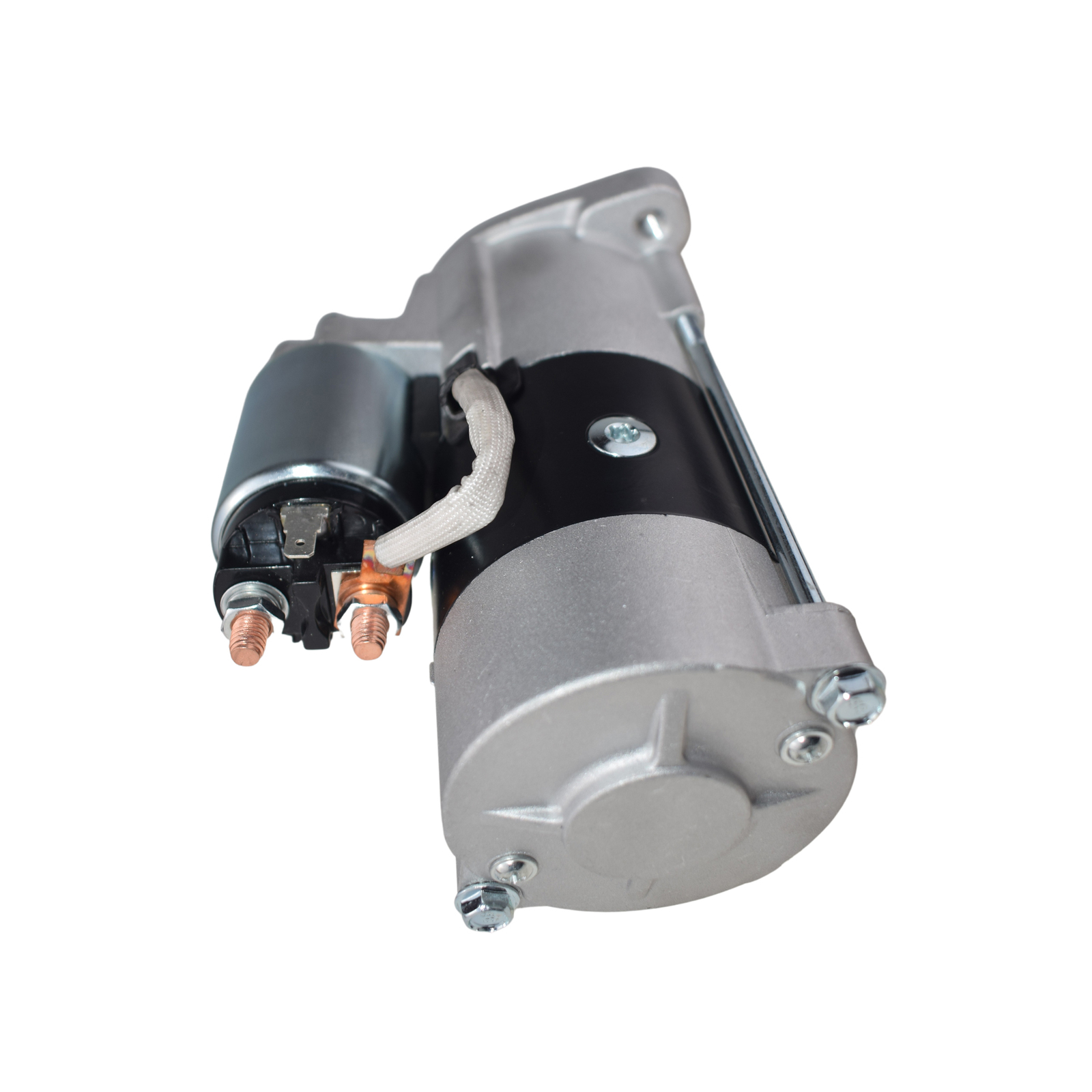

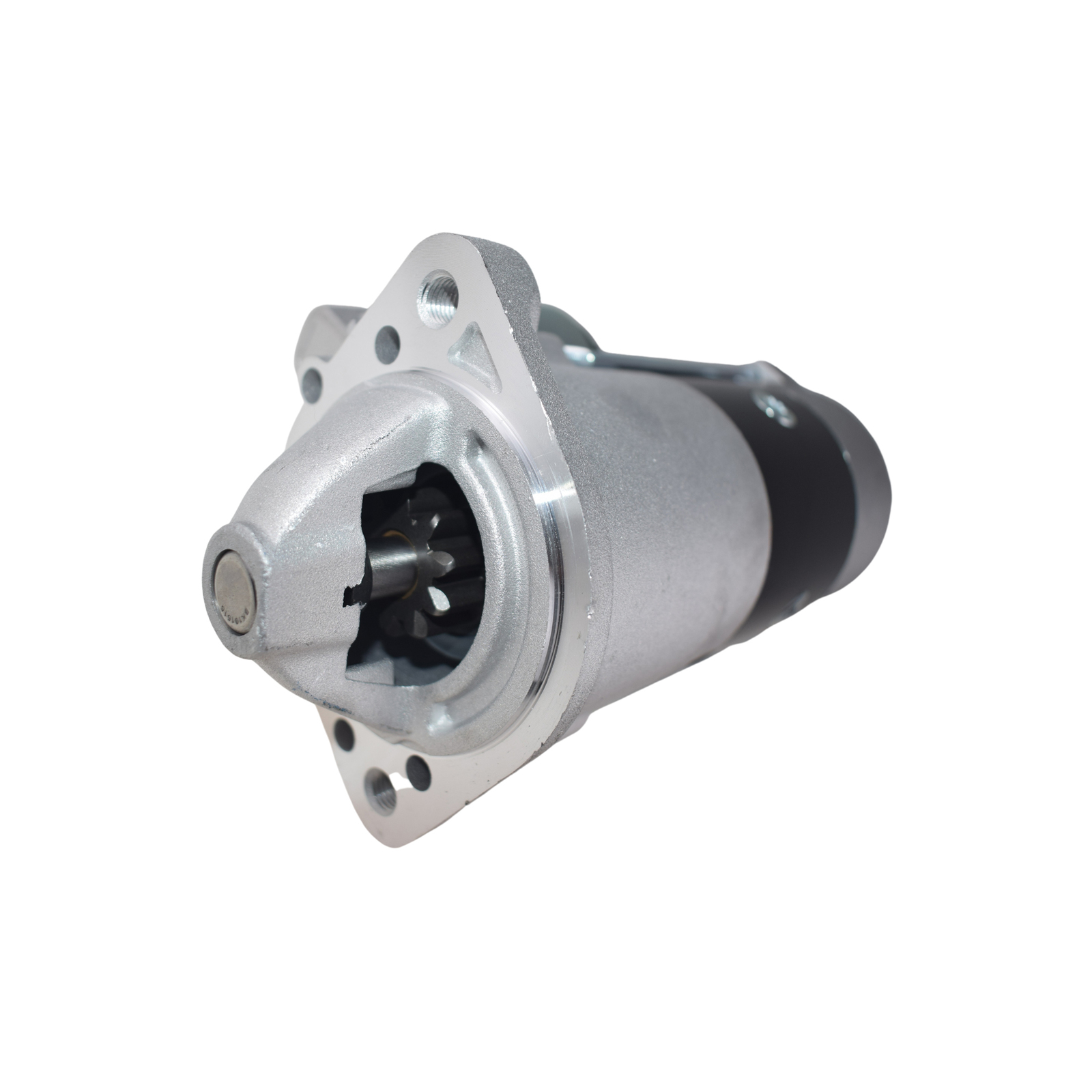

1 x Starter Motor
