Specification

Volts：12

Kilowatts (kw)：1.2

Overall Length (mm)：208

Mounting Hole (mm)：M10x1.25

Mount Hole Centres (mm)：100

Flange Diameter (mm)：74

Nose Cone Length (mm)：45

Pinion At Rest (mm)：10

Field Housing Diameter (mm)：75

Teeth：8TH

Rotation：CW

Pinion Diameter (mm)：28

Fitment

For Hyundai Sonata AF 3.0L V6 Petrol - G6AT 01/1990 - 12/1993

For Hyundai Sonata DF 3.0L V6 Petrol - G6AT 01/1993 - 12/1998

For Mitsubishi Challenger PA 3.0L V6 Petrol - 6G72 03/1998 - 12/2006

For Mitsubishi GTO Z16A 3.0L V6 Petrol - 6G72 08/1993 - 12/2001

For Mitsubishi Magna TR 3.0L V6 Petrol - 6G72 03/1993 - 02/1994

For Mitsubishi Magna TS 3.0L V6 Petrol - 6G72 03/1994 - 03/1996

For Mitsubishi Magna TS 3.0L V6 Petrol - 6G72 03/1994 - 12/1996

For Mitsubishi Pajero NJ 3.5L V6 Petrol - 6G74 11/1993 - 09/1996

For Mitsubishi Pajero NK 3.5L V6 Petrol - 6G74 10/1996 - 08/1997

For Mitsubishi Pajero NL 3.5L V6 Petrol - 6G74 09/1997 - 04/2000

For Mitsubishi Pajero NM 3.5L V6 Petrol - 6G74 05/2000 - 11/2002

For Mitsubishi Pajero NP 3.5L V6 Petrol - 6G74 11/2002 - 10/2004

For Mitsubishi Pajero NP 3.8L V6 Petrol - 6G75 11/03 - 10/2006

For Mitsubishi Pajero NS 3.8L V6 Petrol - 6G75 11/2006 - 11/2008

For Mitsubishi Triton MK 3.0L V6 Petrol - 6G72 10/1996 - 06/2006

For Mitsubishi Triton ML 3.5L V6 Petrol - 6G74 07/2006 - 07/2009

For Mitsubishi Verada KF 3.5L V6 Petrol - 6G74 06/1997 - 02/1999

For Mitsubishi Verada KR 3.0L V6 Petrol - 6G72 03/1991 - 12/1993

For Mitsubishi Verada KS 3.0L V6 Petrol - 6G72 01/1994 - 03/1996

For Mitsubishi Verada KS 3.0L V6 Petrol - 6G72 01/1994 - 12/1996

Package

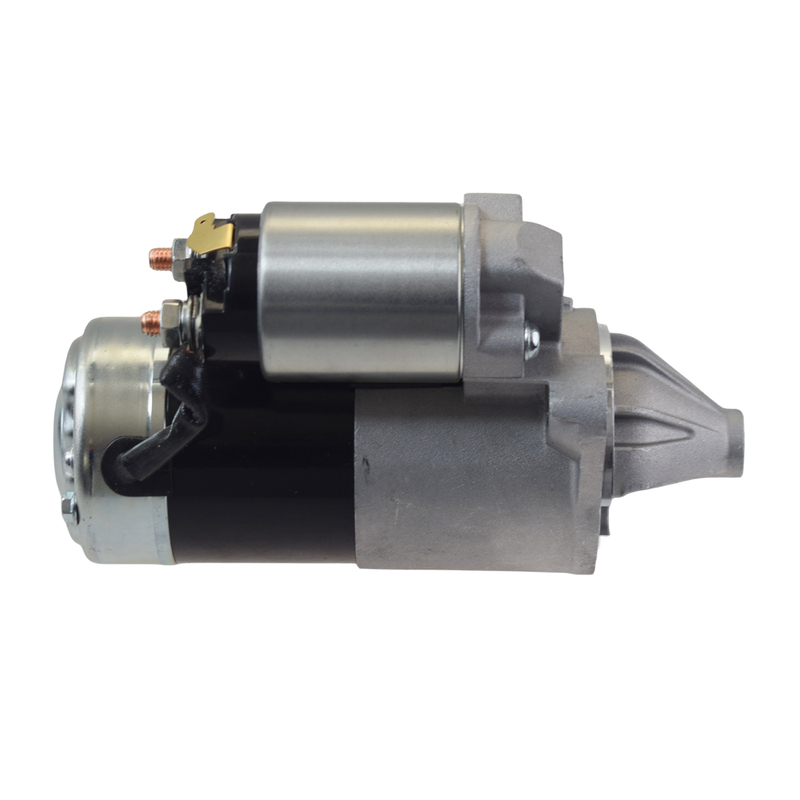

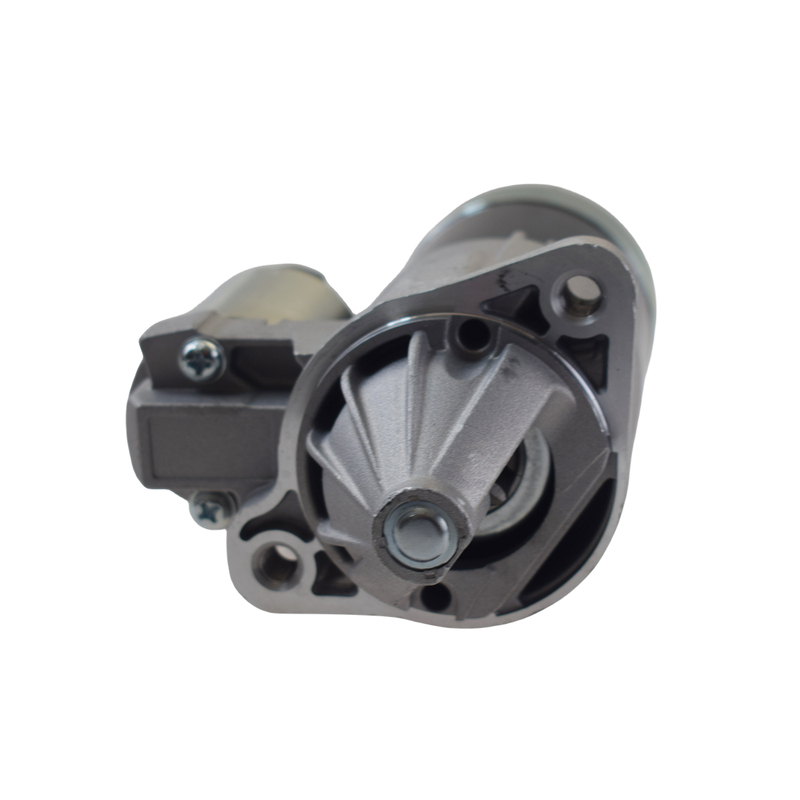

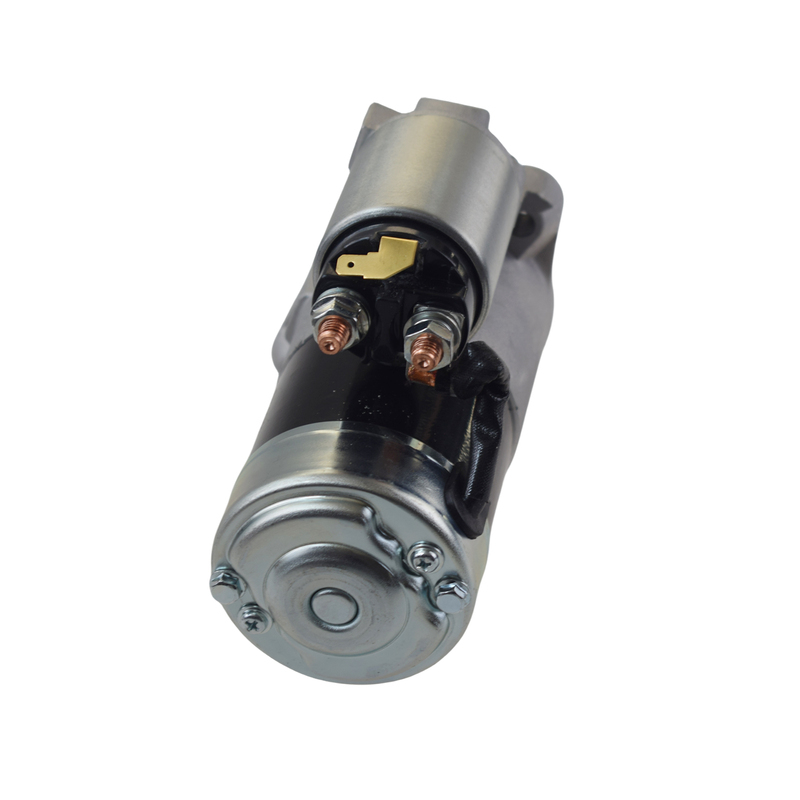

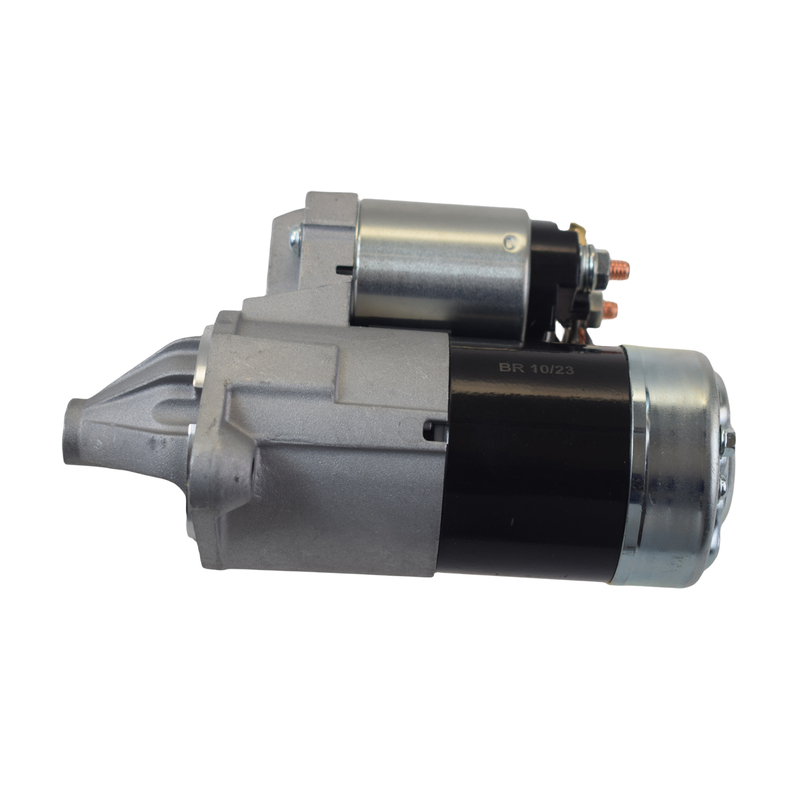

1 x Starter Motor（Auto Transmission Only）
