Specification

Volts：12

Kilowatts (kw)：2.5

Overall Length (mm)：210

Mounting Hole (mm)：11

Mount Hole Centres (mm)：120

Flange Diameter (mm)：95

Nose Cone Length (mm)：9

Pinion At Rest (mm)：9

Field Housing Diameter (mm)：78

Teeth：9TH

Rotation：CW

Pinion Diameter (mm)：35

Note

Many Of The Vehicles Listed Below Have Multiple Starter Motors Which Are Not Interchangeable. Please Check Your Original One Before Purchasing.

Fitment

For Nissan Cabstar F22 2.7L 4cyl Diesel - TD27 01/1988 - 12/1992

For Nissan Cabstar H40 2.7L 4cyl Diesel - TD27 01/1988 - 12/1990

For Nissan Cabstar H40 3.0L 4cyl Diesel - BD30 01/1991 - 12/1993

For Nissan Forklift FJ02 2.7L 4cyl Diesel - TD27 01/1980 - ON

For Nissan Navara D21 2.5L 4cyl Diesel - TD25 02/1988 - 05/1992

For Nissan Navara D21 2.7L 4cyl Diesel - TD27 01/1988 - 03/1997

For Nissan Navara D22 2.5L 4cyl Diesel - YD25DDTi 01/2007 - 12/2015

For Nissan Navara D22 2.7L 4cyl Diesel - TD27 04/1997 - 12/2001

For Nissan Navara D22 3.0L 4cyl Diesel - ZD30DDT 11/2001 - 12/2006

For Nissan Navara D22 3.2L 4cyl Diesel - QD32 04/1997 - 10/2001

For Nissan Patrol GU Y61 3.0L 4cyl Diesel - ZD30DDTi 04/00 - 12/2006

For Nissan Terrano D21 2.7L 4cyl Diesel - TD27T 10/1989 - 08/1995

For Nissan Terrano Ii R20 2.7L 4cyl Diesel - TD27TI 09/1996 - 12/2000

For Nissan Terrano R50 2.7L 4cyl Diesel - TD27ETI 09/1995 - 12/2004

For Nissan Urvan E24 2.7L 4cyl Diesel - TD27 09/1986 - 12/1993

Package

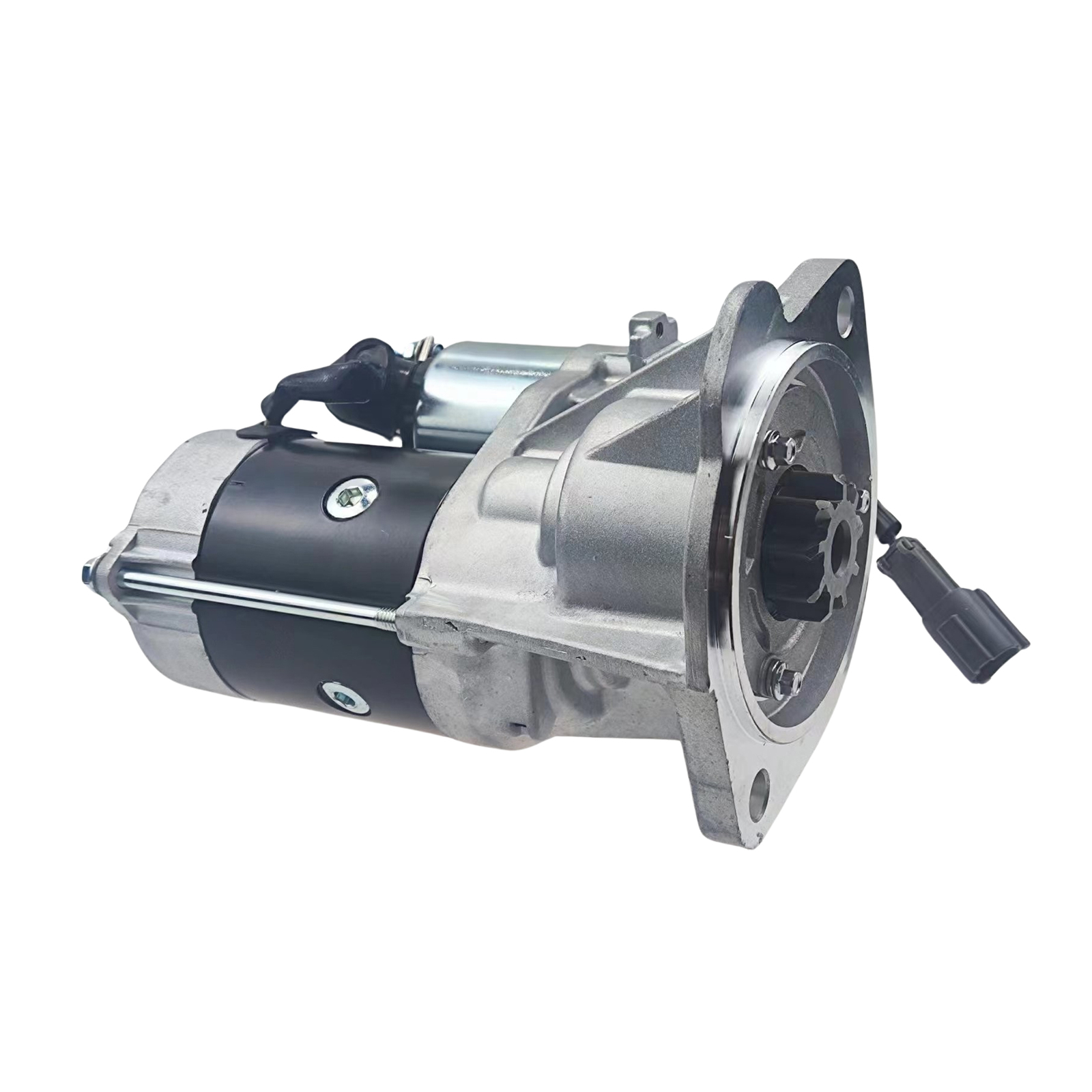

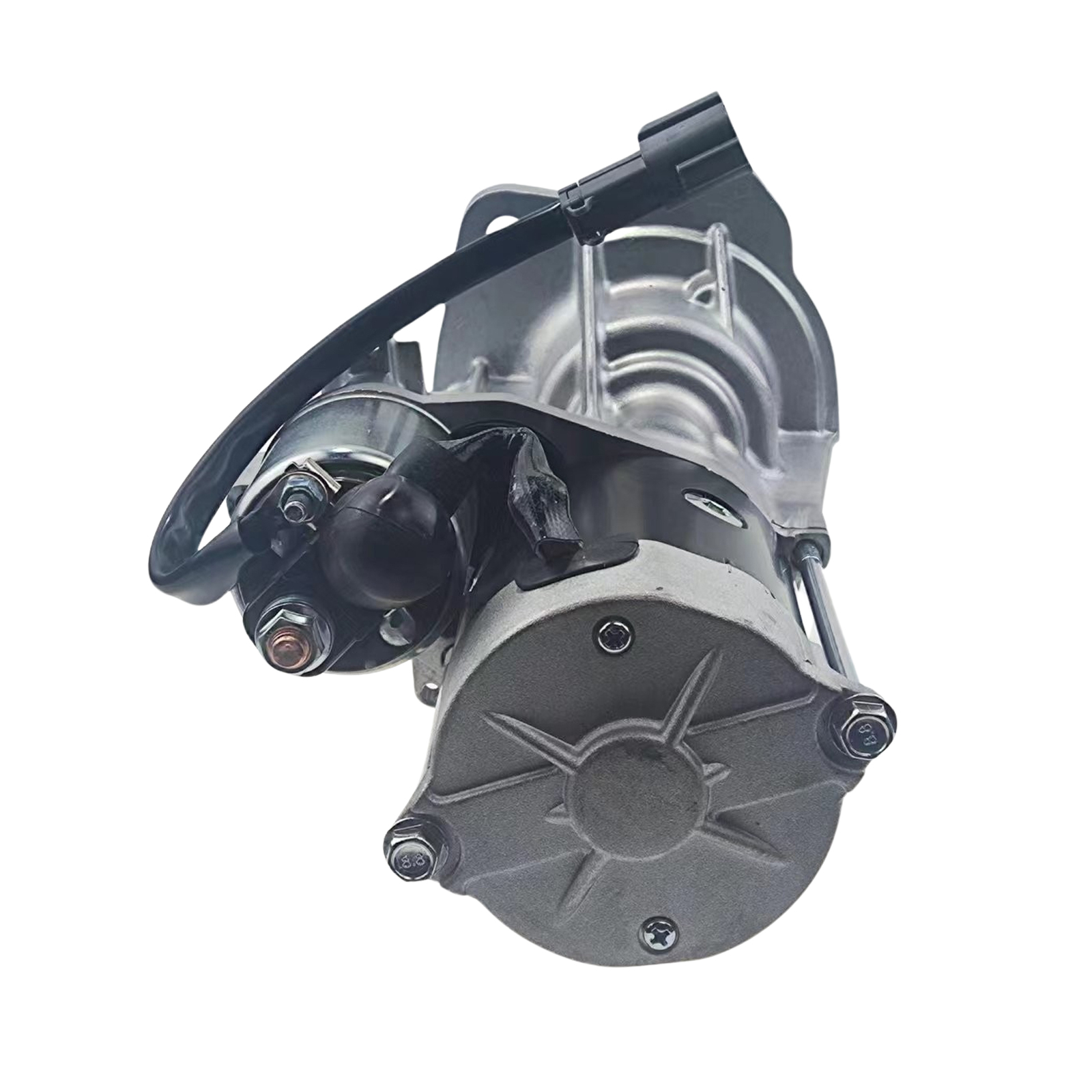

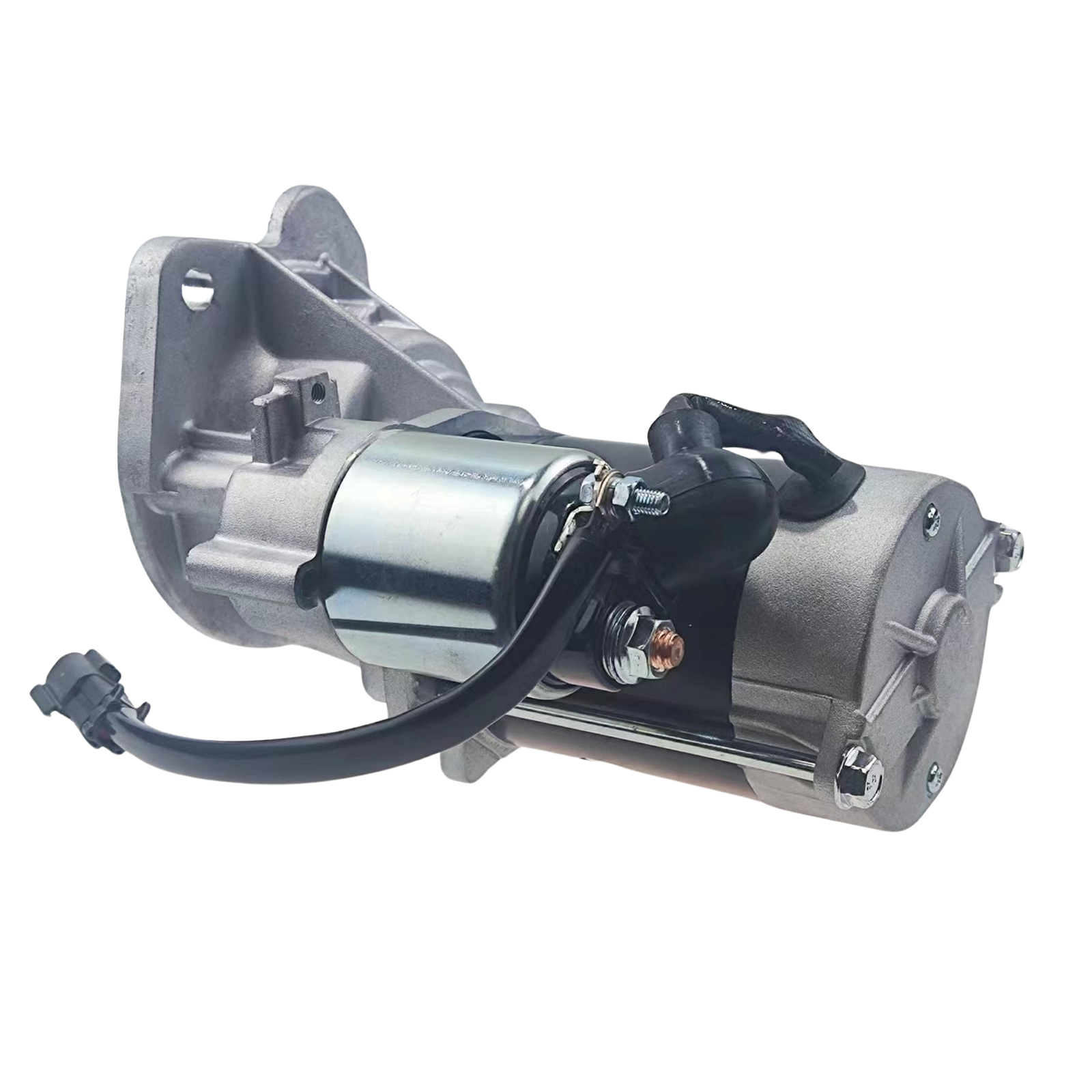

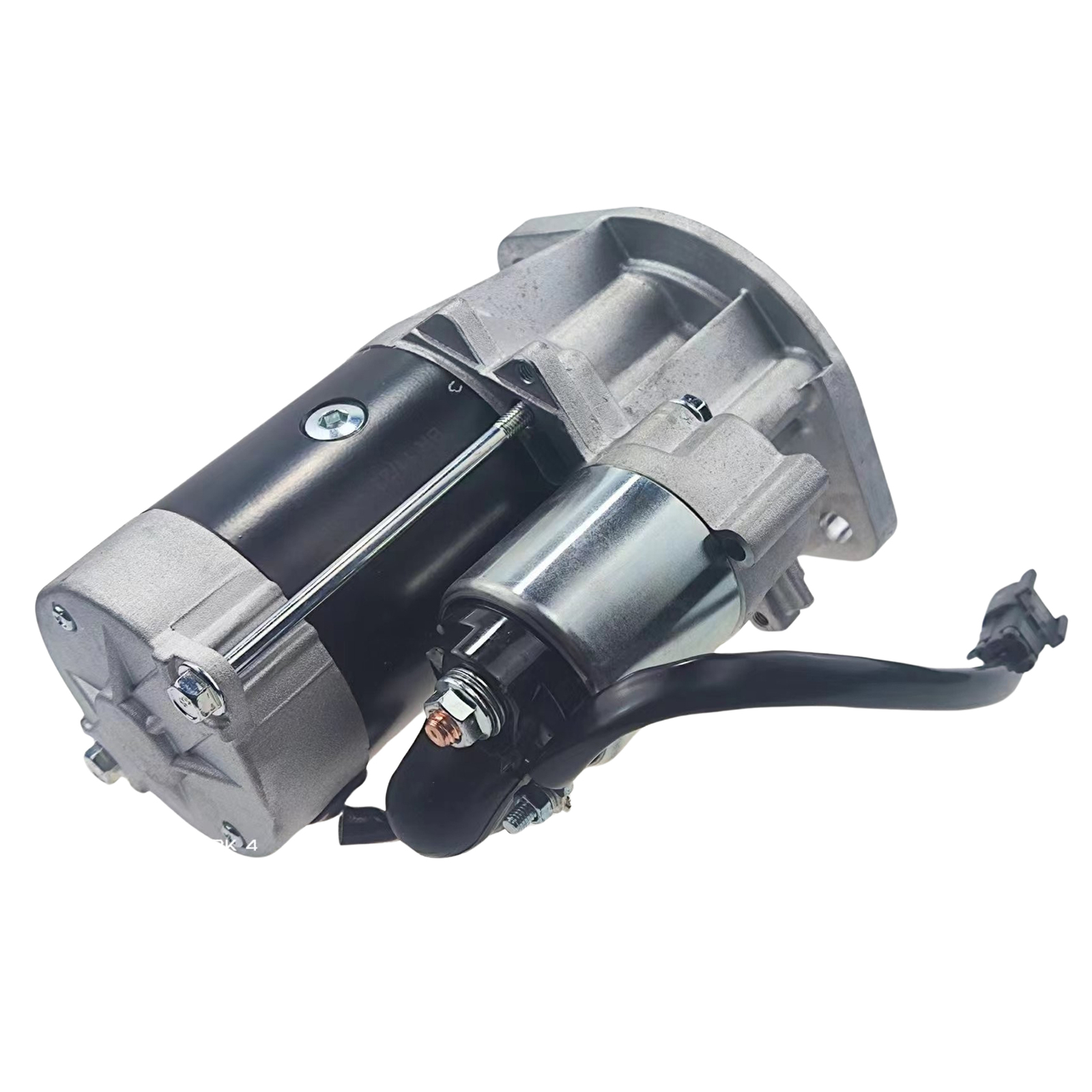

1 x Starter Motor
