Specification

Voltage : 12V

Operating Mode : Electric

2.0L Engine

Throttle Plate Diameter (in): 2-3/16

Air Intake Inner Diameter: 60mm

Housing Length (in): 6-15/16

Housing Width (in): 4-15/16

Main Port Inside Diameter(in): 2-7/16

Air Intake Port Maximum Diameter (in): 2-13/16

Mount Hole Quantity: 4



OEM Part Numbers

4M5G9F991FA / 4M5-G9F991-FA / 1537636 / 1556736 / YP4F9U9E926AC

4M5G9F991EB /  4M5G9F991EA / 4M5G-9F991-EC / 4M5G-9F991-ED

1438754 / 1444984 /  1444984 /  7G9G-9F991-AA / 7G9G-9F991-AB

7G9G9F991AA / 7G9G9F991AB / 4M569F991ED / 4M5G9F991DC



Fitment

Fit For Ford C-Max, S-Max

Fit For Ford Fiesta 2008 2.0L

Fit For Ford Focus LV 2009-2011

Fit For Ford Focus 2003 - 2012 2.0L 2.3L

Fit For Ford Mondeo MK4 2006 - 2007 2.0L



Package

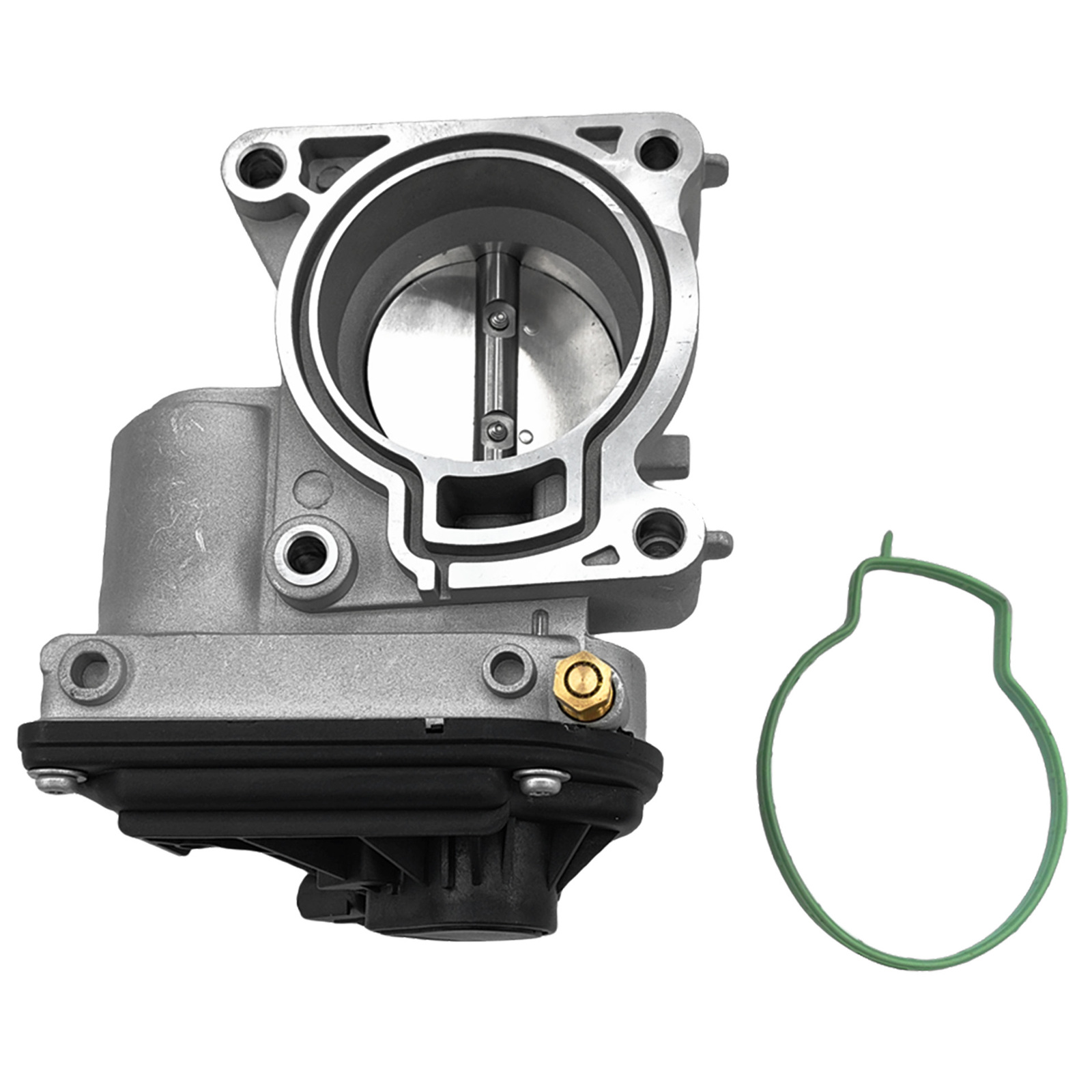

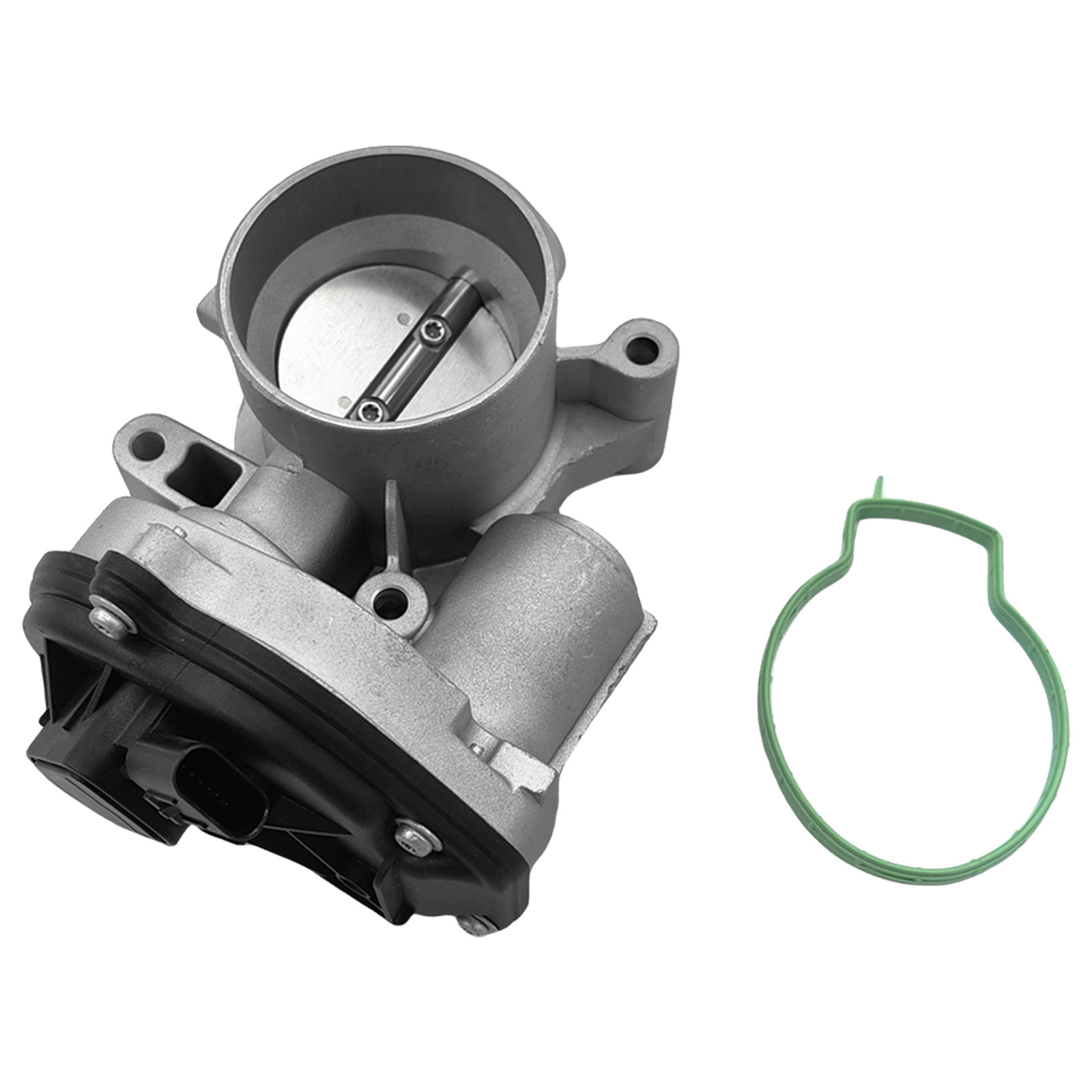

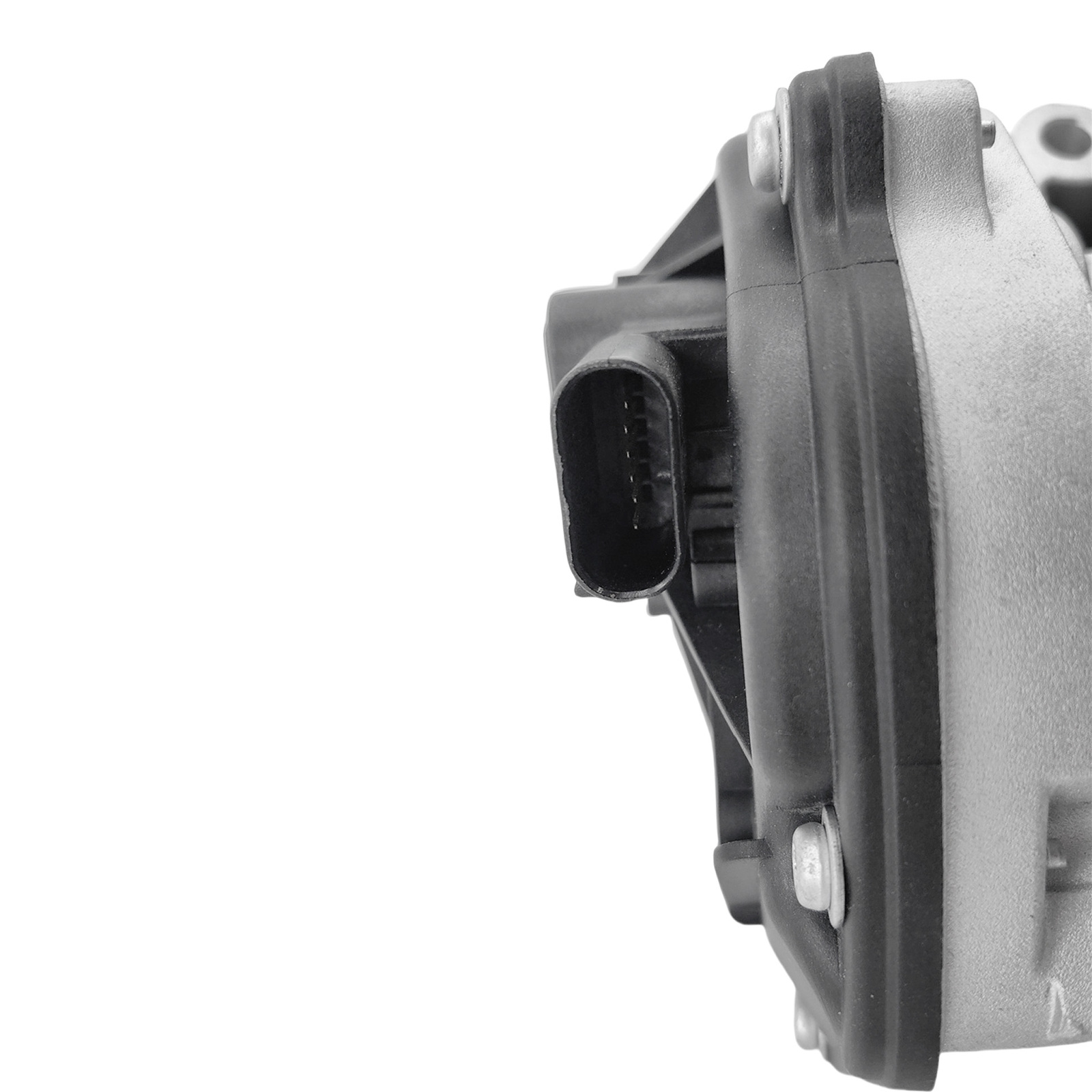

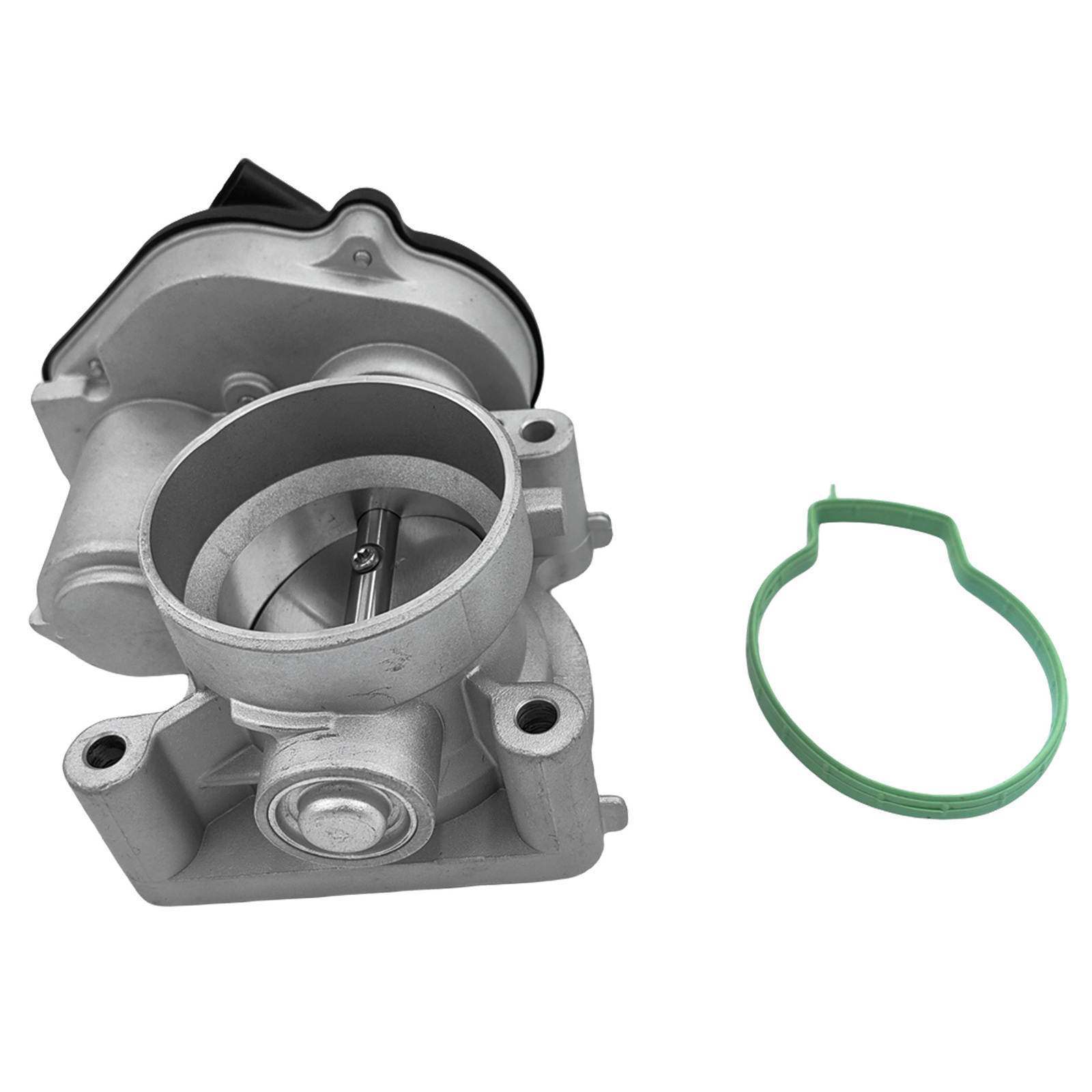

1 x Throttle Body

SKU THRB-FD002
Brand MACHTER AUTOPARTS
Shipping Weight 1.1000kg
Shipping Width 0.170m
Shipping Height 0.110m
Shipping Length 0.195m
Shipping Cubic 0.003647000m3
